    Product Description

    Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026

    Field Scout SC 950 Soil Compaction Meter with Bluetooth
    Model - PN-SC950-S

    Field Scout SC 950 Soil Compaction Meter with Bluetooth measures horizonal root zone soil compaction. By simply positioning the meter on the soil surface and pushing the probe into the soil using constant pressure, the unit measures soil horizon compaction at one-inch increments from 0 to 18 inches deep. The unit also records these readings and GPS Maps the results using the SpecConnect app (sold separately).

    Field Scout SC 950 Soil Compaction Meter with Bluetooth measures horizontal root zone soil compaction. By simply positioning the meter on the soil surface and pushing the probe into the soil using constant pressure, the unit measures soil horizon compaction at one-inch increments from 0 to 18 inches deep. The unit also records these readings and GPS Maps the results using the SpecConnect app (sold separately).

    Measure Root Zone Compaction

    Soil compaction compresses the pore space between soil particles, reducing the movement of air and water through the root zone. Compacted layers can prevent root penetration, which restricts root growth, reduces turf health, limits water infiltration and creates inconsistent playing conditions.

    Using a soil compaction meter helps Sports Field Managers and Golf Course Superintendents identify areas experiencing excessive compaction and determine where corrective action such as Aerification may be needed.

    Unit is shown with optional cell phone mount. (Not included)
    Field Scout SC 950 Soil Compaction Meter with Bluetooth allows you to see compression of the pore space between soil particles, reducing the movement of air and water through the root zone. Compacted layers can prevent root penetration, which restricts root growth, reduces turf health, limits water infiltration and creates inconsistent playing conditions.
    Field Scout SC 950 Soil Compaction Meter with Bluetooth shown with optional TDR-CELL-HOLD-W - Field Scout TDR350 and SC 950 Cell Phone Holder Mount
    Field Scout SC 950 Soil Compaction Meter with Bluetooth measures horizonal root zone soil compaction at one-inch increments from 0 to 18 inches deep
    Field Scout SC 950 Soil Compaction Meter with Bluetooth shown with optional TDR-CELL-HOLD-W - Field Scout TDR350 and SC 950 Cell Phone Holder Mount
    Field Scout SC 950 Soil Compaction Meter with Bluetooth measures horizontal root zone soil compaction at one-inch increments from 0 to 18 inches deep

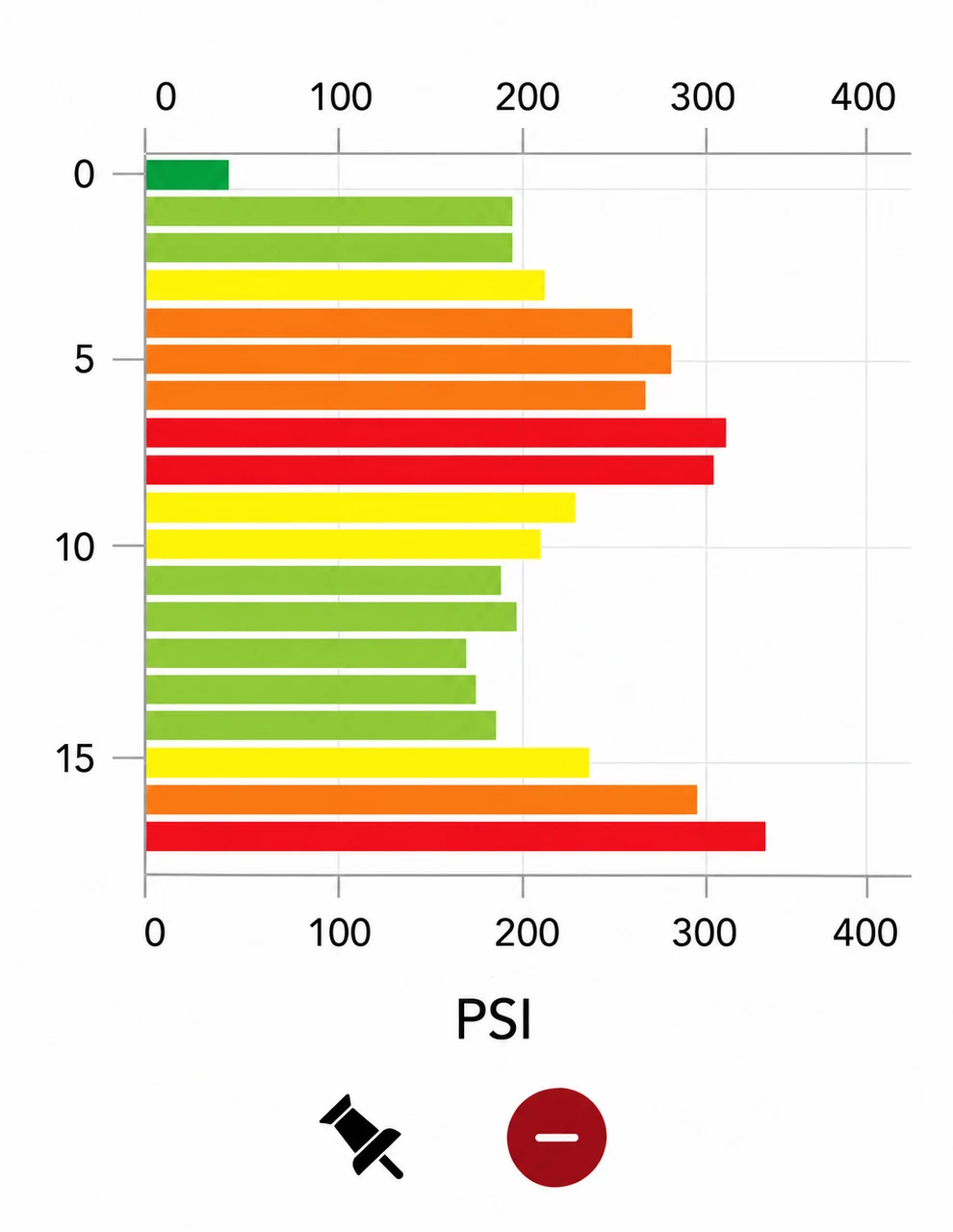

    Using the Field Scout SC 950 Soil Compaction Meter allows you to set ranges and color code them. Display is set for one inch measurements so layers and hard pans can be easily identified through the soiul profile

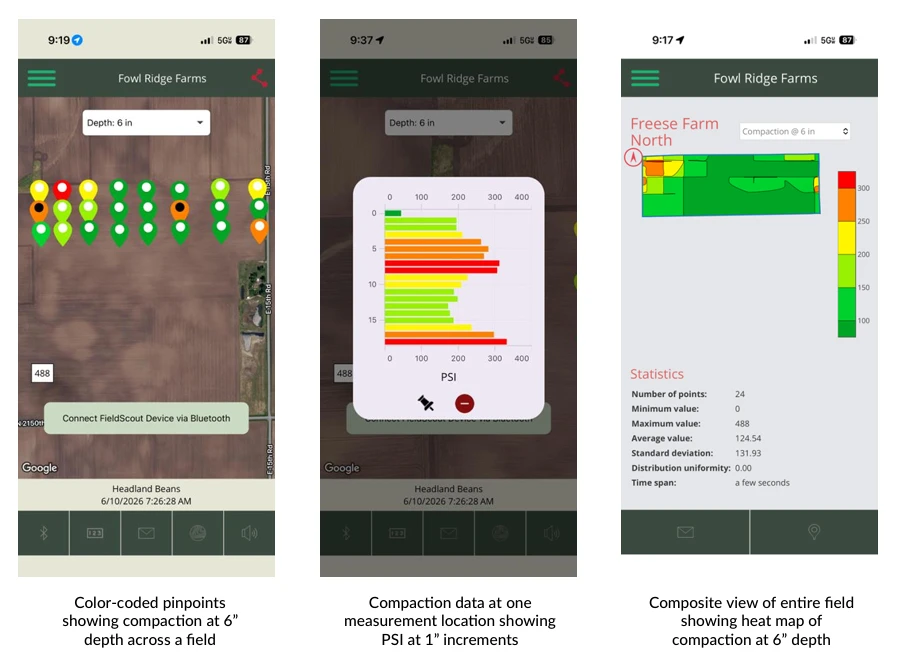

    Unisng the Field Scout SC 950 Soil Compaction Meter with SpecConnect allows mapping of areas to identify compactin issues deep in the soil profile
    Using the Field Scout SC 950 Soil Compaction Meter allows you to set ranges and color code them. Display is set for one inch measurements so layers and hard pans can be easily identified through the soil profile
    Using the Field Scout SC 950 Soil Compaction Meter with SpecConnect allows mapping of areas to identify compaction issues deep in the soil profile

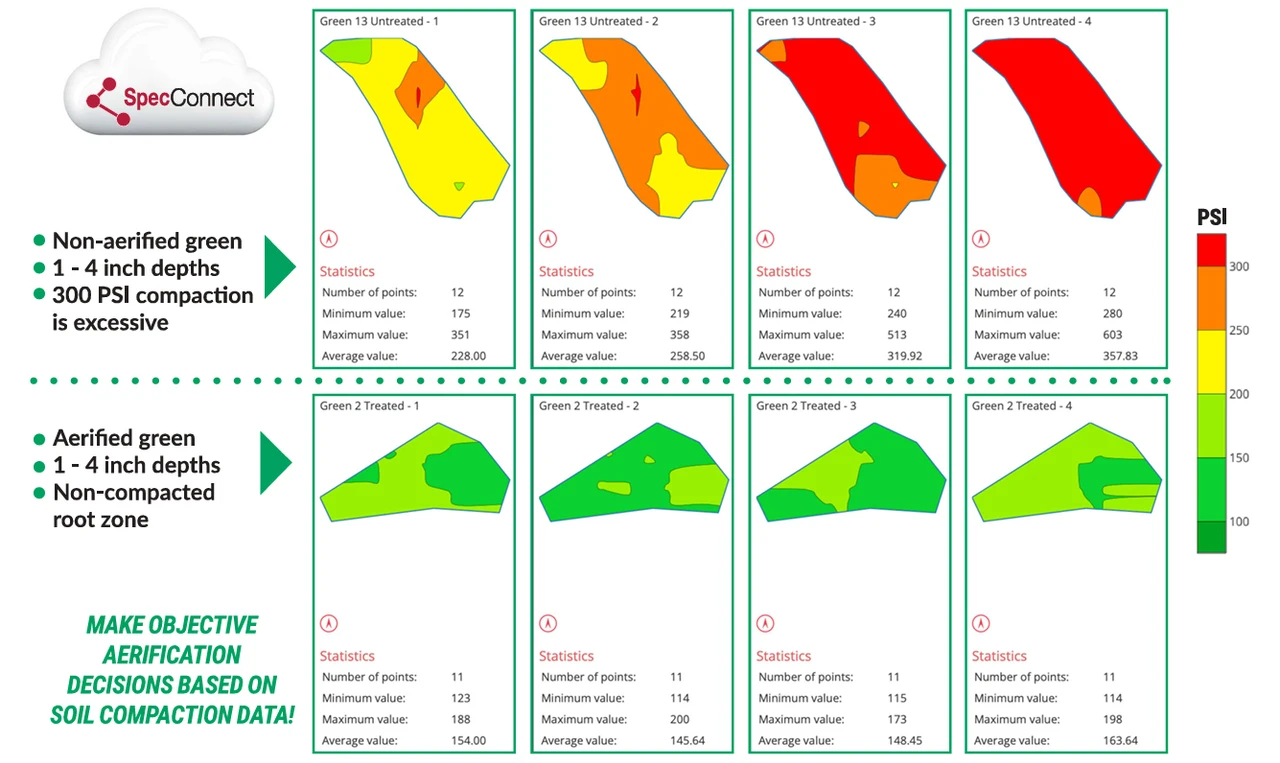

    GPS Mapping with SpecConnect and the Field Scout SC 950 Soil Compaction Meter allows cultural programs like aerification to be evaluatwed for effectiveness
    GPS Mapping with SpecConnect and the Field Scout SC 950 Soil Compaction Meter allows cultural programs like Aerification to be evaluated for effectiveness

    Features and Benefits

    Product Specifications
    Advanced Soil Readings: Probe depth is determined by an ultrasonic sensor

    Resolution (Distance): 1" (2.5cm)
    Readings are taken at one-inch intervals from 0-18 inches deep
    Resolution (Compaction): 1 PSI (7 kPa)
    The compaction index values can be displayed in PSI or kPa
    Accuracy (Distance): +/- 0.5” (+/- 1.25cm)
    Flexibility: The probe has options for a 1/2" or 3/4" diameter cone tip
    Accuracy (Compaction): +/- 15 PSI (+/- 103 kPa)
    Bluetooth Compatible: Use with the FieldScout Mobile App for easy configuration and visualizing readings on your phone

    Range (Compaction): O - 1000 PSI (0 - 7000 kPa)
    Data Sharing: measurements sent to SpecConnect cloud platform for creating reports and additional visualization option
    Max. Insertion Speed: 1 inch per second (2.5 cm/s)

    Connectivity: Bluetooth, USB Flash Drive

    Power: 4 AA Lithium Batteries

    PN-SC950-S - Field Scout SC 950 Soil Compaction Meter with Bluetooth
