Product Description
FieldTester (3A Model) v4 FIFA Impact Tester
This product is for measuring force reduction, vertical deformation, energy restitution of natural grass and synthetic turf sports fields with Clegg Hammer Equivalents - PN-FieldTester-3A-V4
The Deltec FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents is a lightweight, simple, and quick test device. It measures force reduction, vertical deformation, energy restitution and also gives Clegg Hammer (CIST / gMax) equivalent readings. It is useful in measuring athletic field surface safety and playability as well as surface uniformity for football, soccer, baseball, softball, polo, lacrosse and almost any indoor sport. The unit conforms to FIFA and CEN/TS test procedures for measuring the safety of natural and synthetic sports field playing surfaces.
 |   |
|---|
The FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents is easy to carry and operate. The FieldTester has a built-in universal axial speed sensor and uses a spring and foot plate similar to the 3A Artificial Athlete testing device and produces comparable test results.
The FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents comes with a wireless measurement application that is compatible with iOS. The unit comes with all the items necessary to perform testing including an Ipod for use with the device. The FieldTester application generates fast results that are stored in the application immediately after the measurement, and results are displayed on the tablet screen.
By using the FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents, professional test equipment is no longer the exclusive domain of laboratories and synthetic turf producers and installers. The Measuring device can be used by sports field natural grass and synthetic turf installation companies, maintenance companies, municipalities, clubs, teams, and coaches. This device allows you to monitor the quality of the maintenance of various sports and playing surfaces and measure the desired technical characteristics. This ensures safety and playability of the surfaces as well as ensures surface uniformity.
In addition to displaying Force Reduction, Vertical Deformation, Energy Restitution and Maximum Force in Newtons, the unit displays Clegg Hammer equivalent readings that can be read directly with the rest of the measuring results. The tool is user-friendly and easy to move from test area to test area with an overall weight of approximately 22 lbs (10 kilos).
The unit operates on an internal rechargeable battery pack.
Vertical deformation is one of the surface properties that is measured by the Deltec FieldTester on natural and synthetic turf sports fields. Vertical deformation measures the vertical compression of the surface. The result is expressed in millimeters. This result indicates the stability and stiffness of the surface under the impact force of a running athlete.
Force reduction is another surface property that is measured by the Deltec FieldTester on natural and synthetic turf athletic fields. Force reduction measures the percentage of shock absorption that the surface provides as compared to concrete (0%). The FieldTester results are related to official test equipment mentioned in the FIFA Quality Concept and FIFA Quality Programme for Football Turf Guide.
Energy Restitution is the third property that is measured by the Deltec FieldTester on natural and synthetic turf sports fields. This result is expressed as a percentage of the energy returned to the lower extremities of an adult running athlete as compared to concrete.
FIFA and the IRB (International Rugby Board) are sports governing bodies that have directly examined natural sports turf characteristics to establish player-surface interaction parameters for synthetic turf fields. These parameters originally derive from UEFA testing (European Soccer Federation) of natural turf stadiums in the late 1990's in multiple countries and climatic conditions. More recent testing in 2013 by the University of Tennessee Center for Athletic Safety produced results that were similar to the UEFA research for force reduction and vertical deformation.
 |
 |
 |
|---|---|---|
| FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents with easy to read display for testing sports field safety and playability. Hammer Drop weight is 5 kg (11 lbs). Overall weight of unit is approximately 22 lbs (10 kilos). | Support base for FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents and electromagnetic drop mechanism can be triggered with the button on the top of the unit or through the app | Once the weight is released, the test results for the FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents show up on the display screen and in the app |
|
|
 |
 |

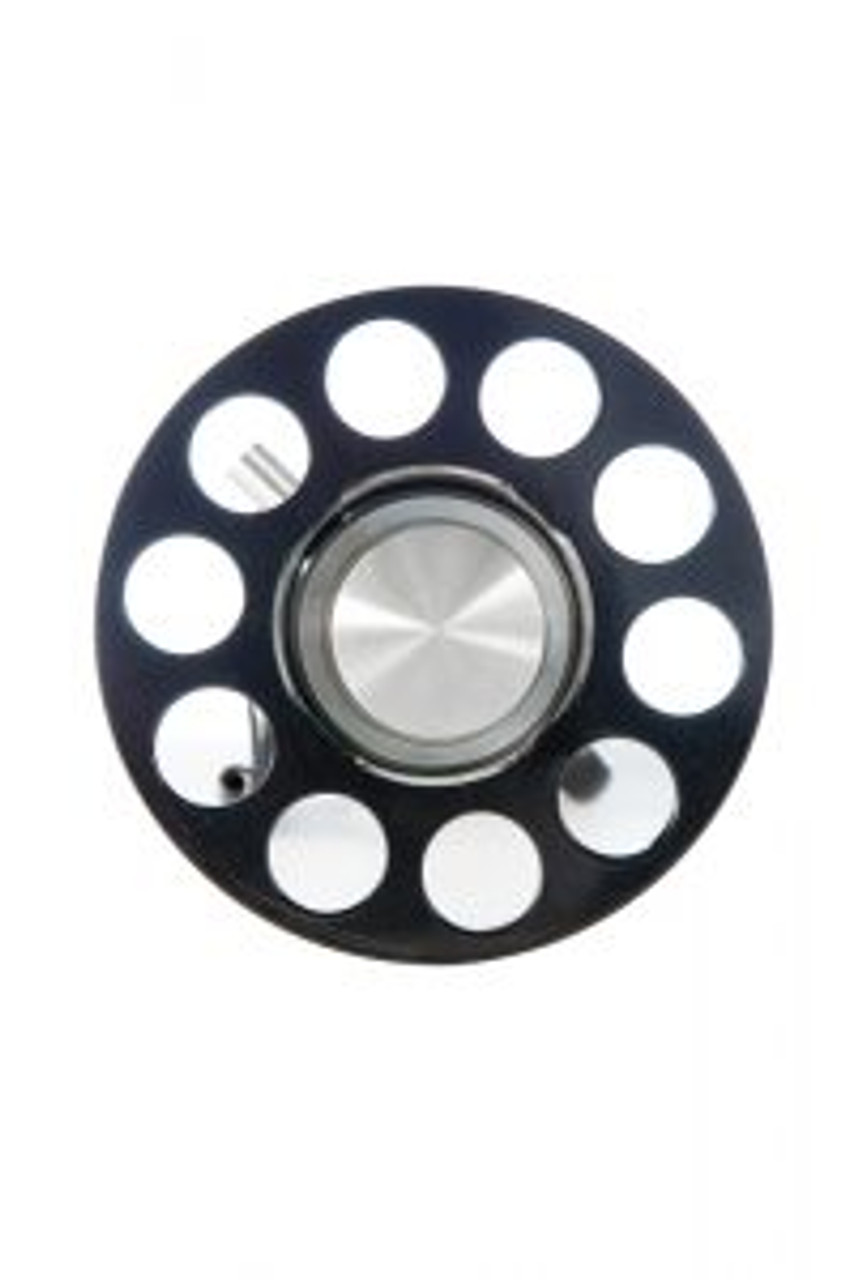

| FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents overall height is 32 inches tall (80 cm) | Base of FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents shown with impact hammer in dropped position | The electromagnets hold the FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents impact weight suspended until it is released by depressing the top button on the testing device or releasing it through the app |
 |
 |
|
| FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents in hard case (provided with the unit) | The app for the FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents is simple and easy to use. There is a free app that comes with the unit as well as two versions of the paid app available | The app for the FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents shows Force Reduction, Vertical Deformation, Energy Restitution, Maximum Force in Newtons and Clegg Hammer equivalent readings |
 |  |
|---|---|
| Sample of the app screen showing the test results for the FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents showing Force Reduction, Vertical Deformation, Energy Restitution, Maximum Force in Newtons and Clegg Hammer equivalent readings / gMax | FieldTester (3A Model) v4 FIFA Impact Tester with Clegg Hammer Equivalents with app |
FieldTester (3A Model) v4 Impact Tester with Clegg Hammer Equivalents conforms to the following test procedures:
ASTM F3189 - 17
Standard Test Method for Measuring Force Reduction, Vertical Deformation, and Energy Restitution of Synthetic Turf Systems Using the Advanced Artificial Athlete
ASTM F1702 - 10
Standard Test Method for Measuring Impact-Attenuation Characteristics of Natural Playing Surface Systems Using a Lightweight Portable Apparatus
ASTM D5874 - 16
Standard Test Methods for Determination of the Impact Value (IV) of a soil
CEN/TS 16717:2015
Surface for sports areas - Method of test for the determination of Shock Absorption, Vertical Deformation and Energy Restitution using the Advanced Artificial Athlete
FIFA 04
FIFA Quality Programme for Football Turf Handbook of Test Methods
FIFA 05
FIFA Quality Programme for Football Turf Handbook of Test Methods
Applications: |
Unit Displays: |
|---|---|
| Football, baseball, soccer, cricket, horse racing, tracks, natural grass, synthetic turf sports fields. | FR: Force Reduction in percentages VD: Vertical deformation in mm ER: Energy Restitution in percentages CIST / gMax: Clegg Hammer Equivalents |
Specifications: |
Mobile measuring application: |
| Easy to use (one-button operation) Hammer Drop weight 5 kg (11 lbs) Lightweight 22 lbs (10 kg) overall Overall Height - 32 inches tall (80 cm) Easy to read digital display Easy to use App |
The application immediately saves all measurements Export function in PDF and XLS Improved calculations for more specific measurements Can store up to 100 measurements GPS, date, time, temperature, and humidity are recorded per measurement |
