PN-TRIAX-GMAX-01-S - Triax Touch gMax Impact Tester with Guide Tube and hard case with wheels

$14,150.00
SKU:
PN-TRIAX-GMAX-01-S
Adding to cart… category.add_cart_announcement

Product Description

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026

Triax Touch gMax Impact Tester with guide tube and hard caseThis product is made in the USA
PN-TRIAX-GMAX-01-S

The Triax Touch gMax Impact tester is intended to measure the impact of artificial and natural turf playing surfaces. This device allows quick gMax testing for safe playing conditions and is in compliance with standards including ASTM F1936 and ASTM F355. The hammer has a cylindrical shape with a weight of 20.0 pounds and is dropped in a guide tube from a fixed height of 24 inches.

The Triax Touch gMax Impact Tester is intended to measure the impact of artificial and natural turf playing surfaces. This device allows quick gMax testing for safe playing conditions and is in compliance with standards including ASTM F1936 and ASTM F355. The hammer has a flat faced cylindrical shape with a weight of 20.0 pounds or 9.10 kg and is dropped in a guide tube from a fixed height of 24 inches.

The Triax Touch gMax Impact Tester comes with a wireless handheld controller that is small, lightweight and portable. The Triax Touch gMax Impact Tester system also includes a PC application that speeds the creation and archiving of test reports, which show all impact test data along with the date/time stamp and user comments. The test results cannot be altered, particularly important to risk managers wanting to ensure data has not been tampered with should a legal action occur over safety of the playing surface.

The use of Triax Touch gMax Impact Tester system is applicable to a wide range of additional standards including:

- Natural Grass Sports Fields ASTM F1936 & ASTM F355
- Synthetic Turf Sports Fields ASTM F1936 & ASTM F355
- Wrestling Mats ASTM F1081
- Trampoline Courts ASTM F2970
- Consumer Trampolines ASTM F381

The Triax Touch gMax Impact Tester system includes a PC application that speeds the creation and archiving of test reports, which show all impact test data along with the date/time stamp and user comments. The test results cannot be altered, particularly important to risk managers wanting to ensure data has not been tampered with should a legal action occur over safety of the playing surface.



Simply raise the drop hammer on the Triax Touch gMax Impact Tester above the surface to be tested, pull the release lever and results appear on the wireless handheld controller

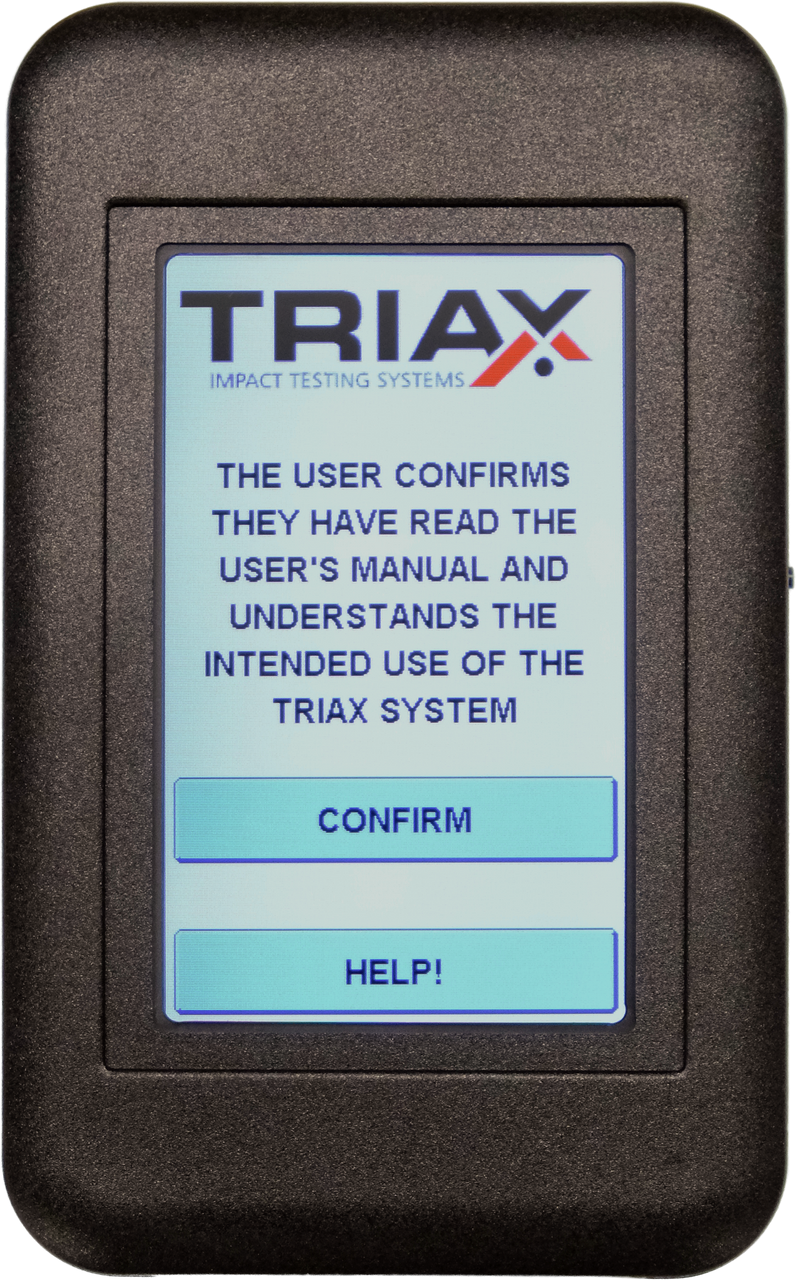

The wireless handheld controller for the Triax Touch gMax Impact tester is small and lightweight

The wireless handheld controller for the Triax Touch gMax Impact tester si sample to use with 5 main options on the home screen
Simply raise the drop hammer on the Triax Touch gMax Impact Tester above the surface to be tested, pull the release lever and results appear on the wireless handheld controller
The wireless handheld controller for the Triax Touch gMax Impact Tester is small and lightweight
The wireless handheld controller for the Triax Touch gMax Impact Tester is simple and easy to use with five main options on the home screen

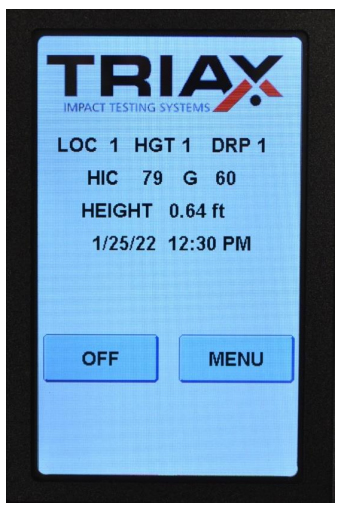

The wireless handheld controller for the Triax Touch gMax Impact tester shows data after each test
Continue testing the surface with the Triax Touch gMax Impact tester for each area

Pressing GRAPH on the wireless handheld controller for the Triax Touch gMax Impact tester will display the graph for the drop
The wireless handheld controller for the Triax Touch gMax Impact Tester shows data after each test
Continue testing the surface with the Triax Touch gMax Impact Tester for each area
Pressing GRAPH on the wireless handheld controller for the Triax Touch gMax Impact Tester will display the graph for the drop
The wireless handheld controller for the Triax Touch gMax Impact tester logs location numbers and data
These readings in the wireless handheld controller for the Triax Touch gMax Impact tester can be viewed independently
The Triax Touch gMax Impact tester's Testers Handheld Controller is small enough to fit in your pocket
The wireless handheld controller for the Triax Touch gMax Impact Tester logs location numbers and data
These readings in the wireless handheld controller for the Triax Touch gMax Impact Tester can be viewed independently
The Triax Touch gMax Impact Tester's Testers Handheld Controller is small enough to fit in your pocket
When the Triax Touch gMax Impact tester's memory card is inserted into a computer, the data is visible showing the data and a gMax graph
These readings in the wireless handheld controller for the Triax Touch gMax Impact tester can be viewed independently


When the Triax Touch gMax Impact Tester's memory card is inserted into a computer, the data is visible showing the data and a gMax graph
These readings in the wireless handheld controller for the Triax Touch gMax Impact Tester can be viewed independently




The use of Triax Touch gMax Impact Tester system is applicable to a wide range of additional standards including: ASTM F1936 & ASTM F355 & ASTM F1081 & ASTM F2970 & ASTM F381

Unit Includes:

  • Triax Touch gMax Impact Tester Wireless Impact Head
  • Triax Touch Wireless Model A Impact Tester
  • Triax Touch Wireless Hand Held with padded case
  • Guide Tube
  • Reference Mat
  • PC Application for report generation
  • ISO 17025 calibration and certificate
  • Wheeled carrying case
  • Charger

Specifications:

  • Weight 20.0 pounds, +/- 0.11 pounds 9.10 kg, +/- 0.05 kg
  • Shape Cylinder Diameter 5.00 inches, +/- 0.10 inches 127 mm, +/- 2 mm
  • Material 303 Stainless Steel
  • Solid billet design

 Click here for instructions

PN-TRIAX-GMAX-01-S Triax Touch gMax Impact Tester with guide tube and hard case

Warranty

LIMITED WARRANTY OF TURF-TEC INTERNATIONAL PRODUCTS Turfgrass Products Corporation - dba - Turf-Tec International ("Seller") warrants to the final purchaser, that all Turf-Tec International tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or improperly repaired by persons other than Turf-Tec International. To make a claim under this Limited Warranty, you must return the complete tool, transportation prepaid, to Turf-Tec International after contacting Turf-Tec International and receiving a return authorization number. Please include a dated proof of purchase with your tool. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY. Return Policy: Turf-Tec International has been in business since 1976 and we pride ourselves in producing quality tools that last for years and years. We offer a 100% satisfaction guarantee on all of our products and will gladly accept any return for a credit to be used at Turf-Tec International for future orders or a check refund may be issued. There is a 30% re-stocking fee for all returned merchandise whether an in house credit or a refund is requested and shipping charges will not be refunded. All returned merchandise must be new and in re-salable condition. Turf-Tec will only receive returns if a return authorization number is first obtained from Turf-Tec International. Again, all returned merchandise must be new and in re-salable condition and Turf-Tec does not pay return shipping fee's. Hold Harmless Agreement The seller shall protect, defend, indemnify and hold the purchaser and their respective assigns and their attorneys, accountants, employees, officers and directors harmless from and against all losses, costs, liabilities, claims, damages and expenses of every kind and character, as incurred, resulting from or relating to or arising out of the inaccuracy of results, injury of user, injury of sports participant, turfgrass loss, warranty, covenant or any agreement made by the seller in this agreement.
