PN-TRIAX-HIC-01-S – Triax Touch HIC Impact Tester with Tripod and hard case

$14,150.00
SKU:
PN-TRIAX-HIC-01-S
Adding to cart… category.add_cart_announcement

Product Description

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026

Triax Touch HIC (Head Impact Tester) with tripod and hard case
PN-TRIAX-HIC-01-S

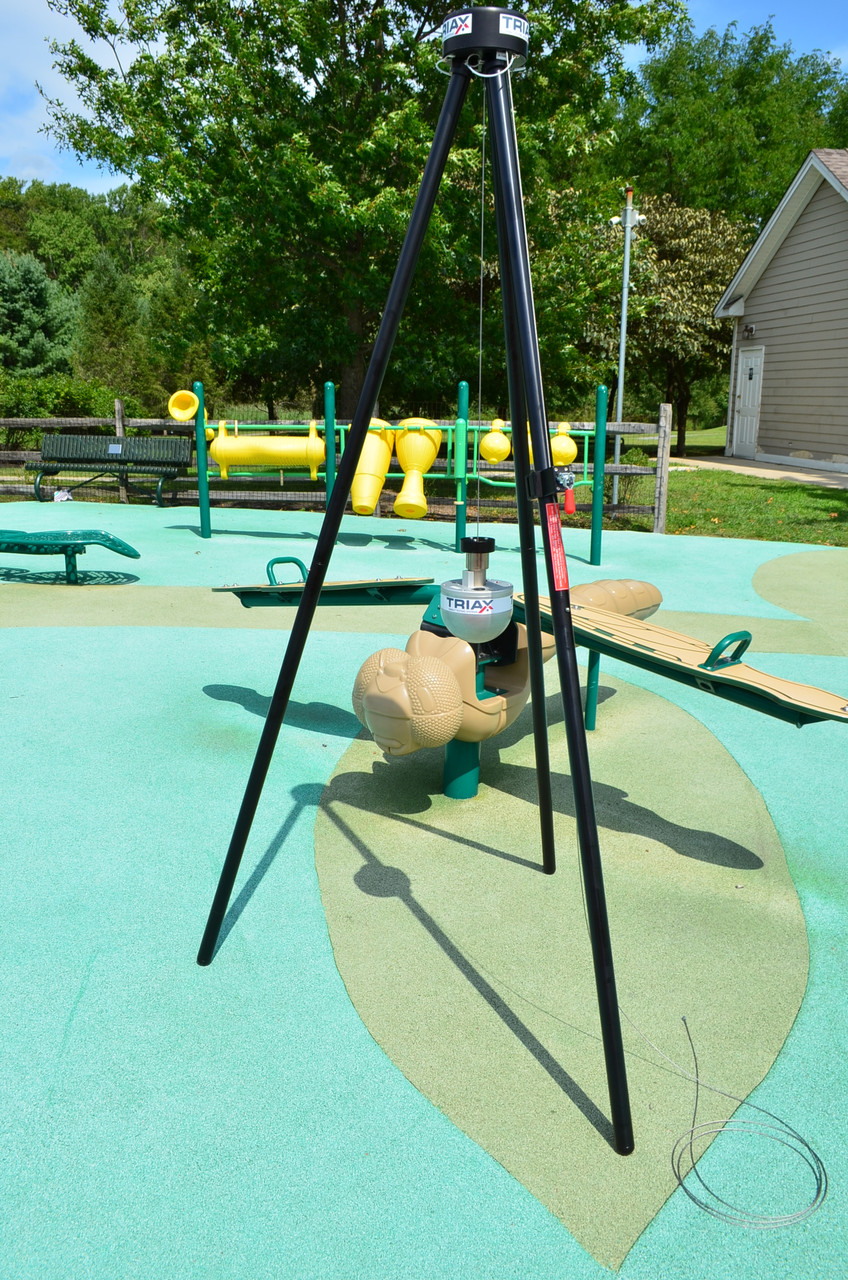

The Triax Touch HIC Impact Tester with tripod is used to measure the impact attenuation of surfaces under and around playground equipment in compliance with worldwide ASTM standards for safety. The unit has a hemispherical shaped impact hammer with a weight of 10.1 pounds. The hammer is dropped from an adjustable height tripod and the hammer can be dropped from variable but consistent heights.

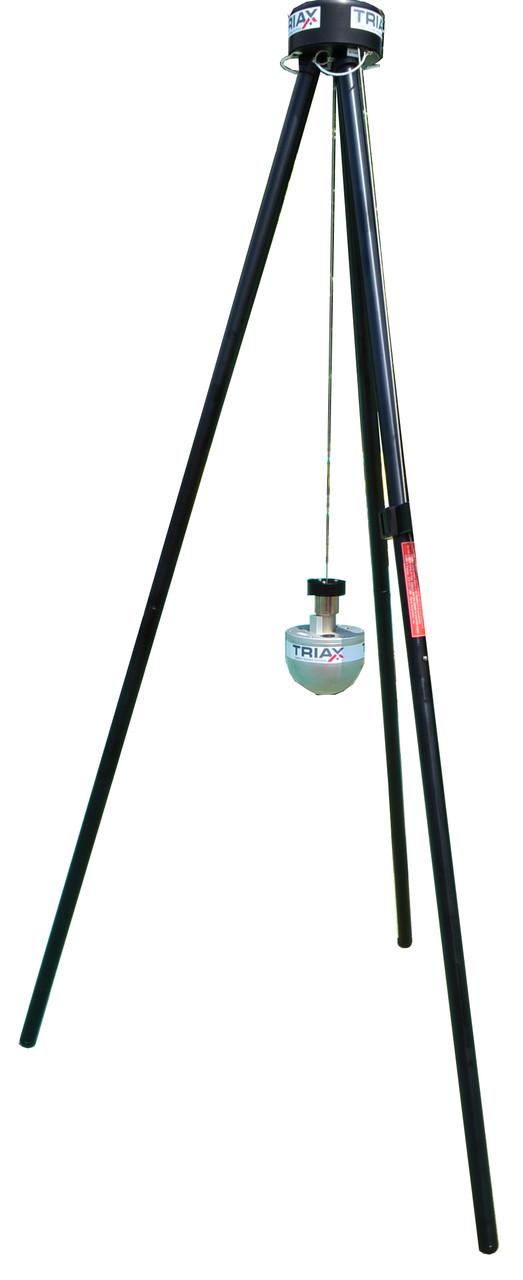

The Triax Touch HIC Impact Tester with tripod has a hemispherical impact tester with a weight of 10.1 pounds and is supported by an adjustable height tripod



The Triax Touch HIC Impact Tester with tripod is used to measure the impact attenuation of surfaces under and around playground equipment in compliance with worldwide ASTM standards for safety. The unit has a hemispherical shaped impact hammer with a weight of 10.1 pounds. The hammer is dropped from an adjustable height tripod and the hammer can be dropped from variable but consistent heights.

Results are displayed on the wireless handheld tablet and drop test data can also be transferred from a removable SD card into the Triax software on a PC or laptop computer.

To further ensure accuracy and repeatability an electromagnet hold and release system prevents errors caused by operators manually dropping the head form, influencing the fall trajectory. This ensures that sequential drops are from the same height and to the same point on the surface.

The Triax Touch HIC Impact Tester with tripod is in compliance with worldwide standards for testing surfaces under and around playground equipment including but not limited to:

ASTM F1292
ASTM F355
EN 1177
AS/NZS 4422
ASTM F3313

This product is made in the USA





The Triax Touch HIC Impact Tester with tripod has a hemispherical impact tester with a weight of 10.1 pounds and is supported by an adjustable height tripod. To further ensure accuracy and repeatability an electromagnet hold and release system prevents errors caused by operators manually dropping the head form, influencing the fall trajectory. This ensures that sequential drops are from the same height and to the same point on the surface.





The wireless handheld controller for the Triax Touch HIC Impact Tester is small and lightweight
The wireless handheld controller for the Triax Touch HIC Inpact Tester is simple and easy to use with five main options on the home screen
The wireless handheld controller for the Triax Touch HIC Impact tester shows data after each test (Drop number, Head Impact Criteria peak Gravities, height of drop, angle of impact and a time and date stamp
The wireless handheld controller for the Triax Touch HIC Impact Tester is small and lightweight
The wireless handheld controller for the Triax Touch HIC Impact Tester is simple and easy to use with five main options on the home screen
The wireless handheld controller for the Triax Touch HIC Impact tester shows data after each test (Drop number, Head Impact Criteria peak Gravities, height of drop, angle of impact and a time and date stamp

The wireless handheld controller for the Triax Touch HIC Impact tester shows data after each test. Simply chick next to advace to next test area

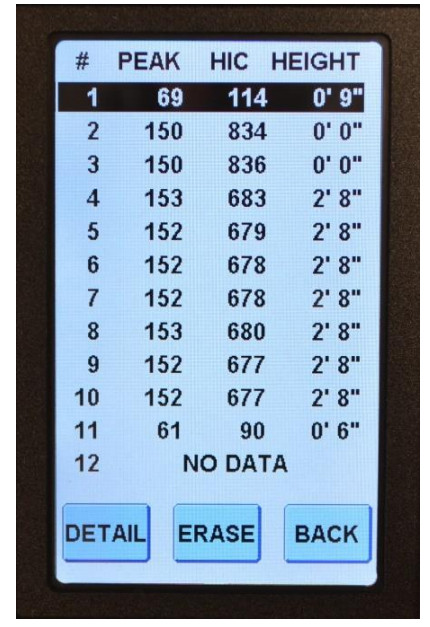

The wireless handheld controller for the Triax Touch HIC Impact tester logs location numbers and data
Pressing GRAPH on the Triax Touch HIC Impact tester control unit will bring up the graph for the drop and display peak and HIC (Head Impact Criteria)
The wireless handheld controller for the Triax Touch HIC Impact tester shows data after each test. Simply chick next to advance to next test area
The wireless handheld controller for the Triax Touch HIC Impact tester logs location numbers and data
Pressing GRAPH on the Triax Touch HIC Impact tester control unit will bring up the graph for the drop and display peak and HIC (Head Impact Criteria)
When the Triax Touch HIC Impact tester's memory card is inserted into a computer, the data is visible showing the data and a HIC (Head Impact Criteria) graph

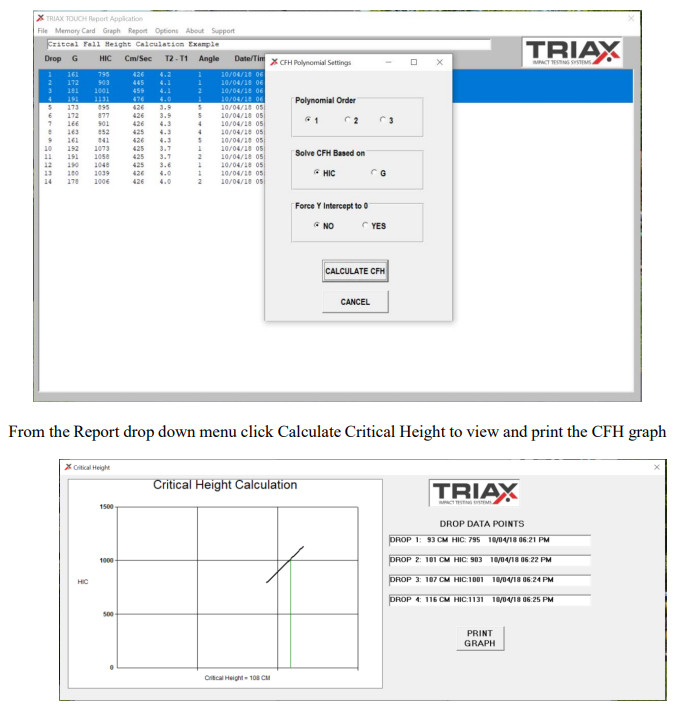

For Critical Fall Height (CFH) calculation, as per EN1177, four drop tests must be performed with the Triax Touch HIC Impact Tester, changing the drop height to result in increasing HIC values. The first two drop tests must result in HIC values below 1000 while the second two result in HIC values greater than 1000. This can also be displayed on a computer by inserting the unit’s memory card in the computer and downloading the data
The Triax Touch HIC Impact Testers Handheld Controller is small enough to fit in your pocket
When the Triax Touch HIC Impact testers memory card is inserted into a computer, the data is visible showing the data and a HIC (Head Impact Criteria) graph
For Critical Fall Height (CFH) calculation, as per EN1177, four drop tests must be performed with the Triax Touch HIC Impact Tester, changing the drop height to result in increasing HIC values. The first two drop tests must result in HIC values below 1000 while the second two result in HIC values greater than 1000. This can also be displayed on a computer by inserting the units memory card in the computer and downloading the data
The Triax Touch HIC Impact Testers Handheld Controller is small enough to fit in your pocket



A manually operated cable clamp allows the head form



For fine adjustment of drop height, a flexible steel cable is used to raise and lower the steel lifting block. To prevent the cable position from changing the supplied locking device is attached to the leg section adjacent to the location where the cable exits the tripod head.

The use of Triax Touch E system (HIC) is applicable to a wide range of additional standards including:

  • Wall / Feature Padding ASTM F2440
  • Pole Vault Landing Systems ASTM F1162
  • Pole Vault Box Collars ASTM F2949
  • Engineered Wood Fiber ASTM F2075
  • Outdoor Fitness Equipment ASTM F3101
  • Soft Contained Play ASTM F1918
  • Aquatic Play Equipment ASTM F2461
  • Loose Fill Rubber ASTM F3012
  • Poured in Place Surfaces ASTM F2479
  • Home Play Equipment ASTM F1148
  • Climbing Crash Pads UIAA 161
  • Rugby Turf Fields ASTM F3146
  • World Rugby Regulation 22



Unit Includes:

  • TRIAX TOUCH wireless head form with fitted, padded storage case
  • TRIAX TOUCH wireless hand held data unit with fitted, padded storage case
  • Reference Testing Mat
  • Height Measuring Rod
  • PC Application
  • Wheeled Carrying Case
  • Set Contains Tripod for Exact Height Drops
  • Displays Drop number
  • Displays Head Impact Criteria (HIC)
  • Displays Peak Gravities
  • Displays Height of drop
  • Shows Time and Date Stamp
  • Displays Critical Fall Height (CFH)
  • Displays Angle of Impact
  • Range 0-500 gMax

 Click here for video of unit in use

Click here for instructions
