HGPRISM-LASER-MM-G - Turf-Tec Laser Height of Cut Prism Gauge with case (Metric Model)

$800.00
SKU:
HGPRISM-LASER-MM-G
Adding to cart… category.add_cart_announcement

Product Description

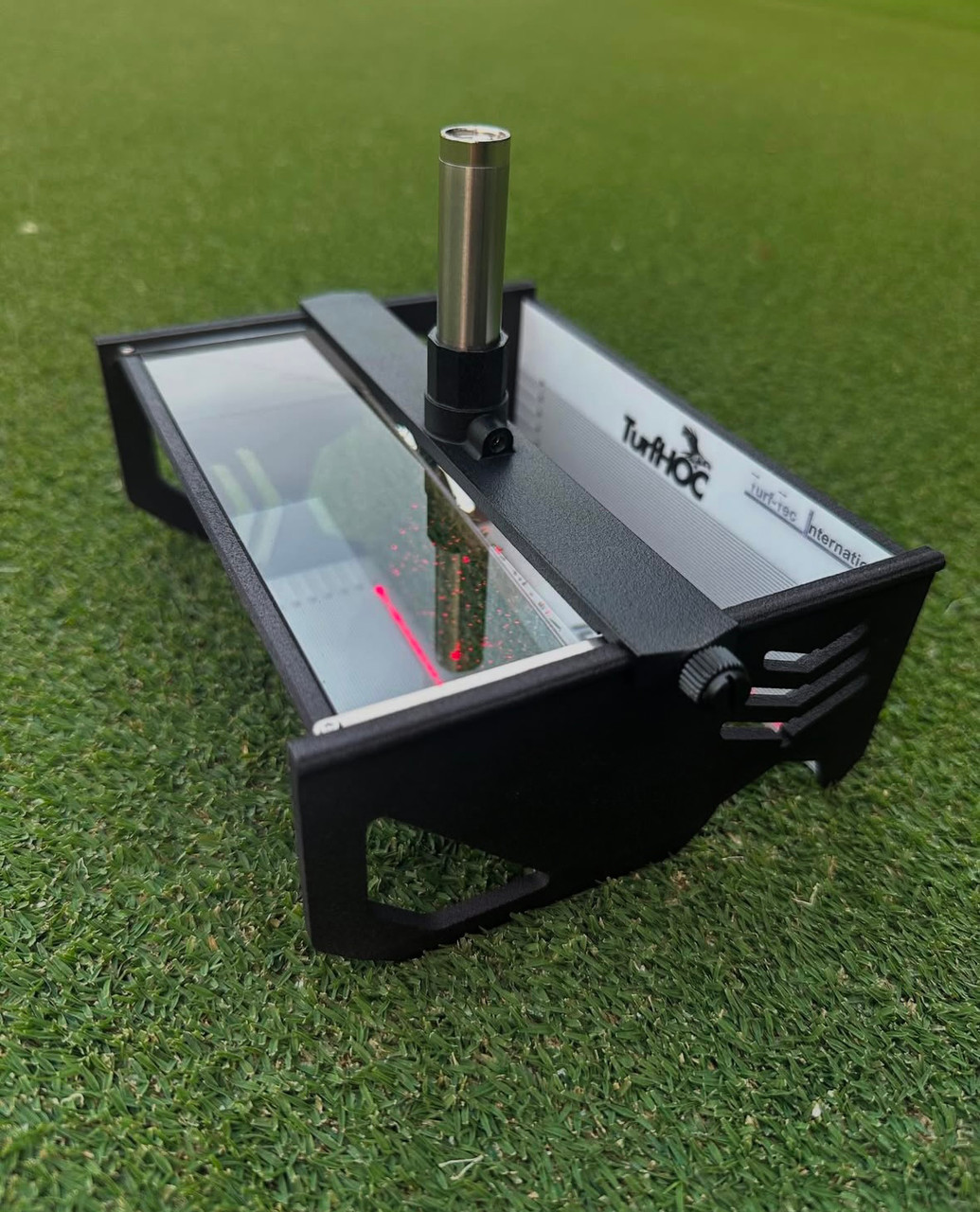

  Turf-Tec Grass Height Prism Gauge with Laser

Metric Millimeter (Metric Model)



The new Turf-Tec Grass Height Prism Gauge with Laser is a new concept in measuring the height of cut on fine turfgrass areas with a solid glass prism and a laser. This combination shows the exact height of cut through the solid glass prism. It is designed to tell you the actual height of cut that the mower is making on the turfgrass area as well as the quality of cut.The new Turf-Tec Grass Height Prism Gauge with Laser is a new concept in measuring the height of cut on fine turfgrass areas with a solid glass prism and a laser. This combination shows the exact height of cut through the solid glass prism. It is designed to tell you the actual height of cut that the mower is making on the turfgrass area as well as the quality of cut. Simply place the specially designed Turf-Tec Laser prism directly on the golf green, tee, fairway or athletic field, and look through the instrument, sliding the specially designed laser down until you reach the tips of the cut turfgrass leaf blades. When the laser illuminates the turfgrass leaf tips, it is transposed onto the inch or millimeter scale, showing the exact height of cut as well as the quality of cut and the overall smoothness of the surface.

The new Turf-Tec Grass Height Prism Gauge with Laser is a new concept in measuring the height of cut on fine turfgrass areas with a solid glass prism and a laser. This combination shows the exact height of cut through the solid glass prism. It is designed to tell you the actual height of cut that the mower is making on the turfgrass area as well as the quality of cut.

Simply place the specially designed prism directly on the golf green, tee, fairway or athletic field, and look through the instrument, sliding the specially designed laser down until you reach the tips of the cut turfgrass leaf blades. When the laser illuminates the turfgrass leaf tips, it is transposed onto the inch or millimeter scale, showing the exact height of cut as well as the quality of cut and the overall smoothness of the surface.

Also, the laser lights up the tips of any turfgrass leaf blades that have not been properly cut, easily showing problems like step cuts, stragglers, cutting unit hop, marcelling or wash boarding when viewed along the direction of cut.

The unit can also be used on artificial infill turf to determine fiber height above the infill material and uniformity of the turf fiber tips.

This model is the Millimeter or Millimeter Model (HGPRISM-LASER-MM-G) that matches the FIFA testing guidelines and shows 1 millimeter increments in a 150 mm length and a 40 mm height. Unit also has .020 increments for imperial reference.

The Grass Height Prism Gauge with Laser features graduated measurement lines that are viewed through the solid glass prism and superimposed on the turf allowing you to measure the actual height of the turfgrass and compare it with mower bench settings.

The "quality" of cut may also be inspected by comparing the turf over the viewing plane of the prism.

Graduated lines are printed at 1/100th or 1.0 mm depending on the unit selected and measures grass up to 1.60 inches or 40 millimeters tall.

It is ideal for inspecting golf greens, baseball infields, cricket pitches, grass tennis courts or any finely manicured place that cutting height and surface smoothness is important. Prism frame is 6 3/8 x 5 x 2 1/2 inches (16 x 13 x 6.5 cm) in size.

Grass Height Prism Gauge includes solid glass prism mounted in a secure frame with readings in inches (0.020 inch increments from 0 to 1.60 inches tall and 1 mm increment reference area from 0 to 40 mm).

Also, the Turf-Tec Laser Prism Gauge's laser lights up the tips of any turfgrass leaf blades that have not been properly cut, easily showing problems like step cuts, stragglers, cutting unit hop, marcelling or wash boarding when viewed along the direction of cut.

HGPRISM-LASER-MM-G Model- Units laser illuminates the turfgrass leaf tips, easily showing the exact height of cut as well as the quality of cut and the overall smoothness of the surface.

HGPRISM-LASER-INCH-G Model - Turf-Tec Height of Cut Prism scale lines are in 1/10th of an inch increments. Details to 0.020 increment lines
HGPRISM-LASER-MM-G Model - Turf-Tec Height of Cut Prism scale lines are in 1 millimeter increments.  Details to 1.0 mm increment lines
Turf-Tec International Laser Height of Cut Prism Gauge in hard caseTurf-Tec International Laser Height of Cut Prism Gauge in hard case
HGPRISM-LASER-MM-G Model - Turf-Tec Laser Height of Cut Prism Gauge with case (MM Model) scale lines show 1 millimeter increments. Unit also has 1/100th of an inch (0.020 increments for reference in a 6 inch (150 mm) length and a 2 3/8 inch (60.3 mm) height. Unit sold in protective hard case
Case measures 11 x 9 x 3 1/2 inches (28 x 23 x 9 cm)



Specifications:
Solid Glass Optics
Nylon Frame (non toxic)
Measurement scale on Metric (MM) version is 1 millimeter and 1/100th of an inch increments
Maximum Measuring Height Scale is 1 5/8 inches or 40 mm
Measurement Scale Shows Details down to 1 mm or 0.020 increments
Prism Measures: 6 3/8 x 5 x 2 1/2 Inches (16 x 13 x 6.5 cm)
Prism Weight: 1 lbs 8 oz. (800 g)
Case Measures 11 x 9 x 3 1/2 inches (28 x 23 x 9 cm)
Prism and Case Weight:  4 lbs (1.8 kg)


Turf-Tec Laser Grass Height Prism Gauge The unit can also be used on artificial infill turf to determine fiber height above the infill material and uniformity of the turf fiber tipsTurf-Tec Laser Height of Cut Prism Gauge can also be used for measuring the pile or fiber height in artificial grass athletic fields to determine if enough infill is installed between the pad and the fibers, for player safety and proper field maintenance. It is also helpful for topdressing new rubber infill and grooming.Turf-Tec Laser Height of Cut Prism Gauge can also be used for measuring the pile or fiber height in artificial grass athletic fields to determine if enough infill is installed between the pad and the fibers, for player safety and proper field maintenance. It is also helpful for topdressing new rubber infill and grooming.

Turf-Tec Laser Height of Cut Prism Gauge can also be used for measuring the pile or fiber height in artificial grass athletic fields to determine if enough infill is installed between the pad and the fibers, for player safety and proper field maintenance.  It is also helpful for topdressing new rubber infill and grooming.

 Click here for Instructions

 HGPRISM-LASER-FIFA-G - Turf-Tec Laser Height of Cut Prism Gauge with case (Metric Millimeter Model) (Matches 2015 FIFA Guidelines)

Warranty

LIMITED WARRANTY OF TURF-TEC INTERNATIONAL PRODUCTS Turfgrass Products Corporation - dba - Turf-Tec International ("Seller") warrants to the final purchaser, that all Turf-Tec International tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or improperly repaired by persons other than Turf-Tec International. To make a claim under this Limited Warranty, you must return the complete tool, transportation prepaid, to Turf-Tec International after contacting Turf-Tec International and receiving a return authorization number. Please include a dated proof of purchase with your tool. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY. Return Policy: Turf-Tec International has been in business since 1976 and we pride ourselves in producing quality tools that last for years and years. We offer a 100% satisfaction guarantee on all of our products and will gladly accept any return for a credit to be used at Turf-Tec International for future orders or a check refund may be issued. There is a 30% re-stocking fee for all returned merchandise whether an in house credit or a refund is requested and shipping charges will not be refunded. All returned merchandise must be new and in re-salable condition. Turf-Tec will only receive returns if a return authorization number is first obtained from Turf-Tec International. Again, all returned merchandise must be new and in re-salable condition and Turf-Tec does not pay return shipping fee's. Hold Harmless Agreement The seller shall protect, defend, indemnify and hold the purchaser and their respective assigns and their attorneys, accountants, employees, officers and directors harmless from and against all losses, costs, liabilities, claims, damages and expenses of every kind and character, as incurred, resulting from or relating to or arising out of the inaccuracy of results, injury of user, injury of sports participant, turfgrass loss, warranty, covenant or any agreement made by the seller in this agreement.
