HGPRISM-01-MM-G - Turf-Tec Height Of Cut Prism Gauge (Metric) with case

$500.00
SKU:
HGPRISM-01-MM-G
Adding to cart… category.add_cart_announcement

Product Description



New Model - Turf-Tec Grass Height Prism Gauge
FIFA Compliant - HGPRISM-01-MM-GThis product is made by Turf-Tec International in the USA

Also Available in Inches Model

The Turf-Tec Grass Height Prism Gauge is made from solid glass and aircraft aluminum. It is designed to tell you the actual height of cut that the mower is making on the turfgrass area. By placing the specially designed prism directly on the golf green, tee, fairway or athletic field and looking through the instrument in the direction of cut, you can determine the actual height of cut as well as the quality of cut and smoothness of the surface.

The Turf-Tec Grass Height Prism Gauge features graduated measurement lines, printed on the solid aluminum frame, that are superimposed on the turf allowing you to measure the actual height of the turfgrass and compare it with mower bench settings. The "quality" of cut may also be inspected by comparing the turf over the viewing plane of the prism in the direction of cut. Graduated lines are shown at 10th of an inch increments and 0.020 inch lines also shows 1.0 mm intervals. The overall scales measures grass up to 1 5/8th inches or 40 millimeters tall. It is ideal for inspecting golf greens, soccer fields, baseball infields, cricket pitches, grass tennis courts or any finely manicured space that cutting height and surface smoothness is important. Prism is 6 1/2 x 5 1/2 x 2 3/8 inches (16.5 x 14 x 6 cm) in size.

The Grass Height Prism Gauge is made from solid glass and aircraft aluminum. It is designed to tell you the actual height of cut that the mower is making on the turfgrass area. By placing the specially designed prism directly on the golf green, tee, fairway or athletic field and looking through the instrument in the direction of cut, you can determine the actual height of cut as well as the quality of cut and smoothness of the surface. The Grass Height Prism Gauge features graduated measurement lines, printed on the solid anodized aluminum frame, that are superimposed on the turf allowing you to measure the actual height of the turfgrass and compare it with mower bench settings.

The "quality" of cut may also be inspected by comparing the turf over the viewing plane of the prism in the direction of cut. Graduated lines are inscribed at 10th of an inch and 1 mm intervals and measures grass up to 40 millimeters tall or 1 5/8th inches. It is ideal for inspecting golf greens, soccer fields, baseball infields, cricket pitches, grass tennis courts or any finely manicured space that cutting height and surface smoothness is important. Prism is 6 1/2 x 5 1/2 x 2 3/8 inches (16.5 x 14 x 6 cm) in size.

Grass Height Prism Gauge includes a solid glass prism mounted in a secure solid aluminum frame with readings in millimeters and with a 10th of an inch reference scale 1.0 mm - 40 mm).

To assess mowing quality, simply place the Turf-Tec Grass Height Prism Gauge on turfgrass area to be measured in the direction of the mower cut
To assess mowing quality, simply place the Turf-Tec Grass Height Prism Gauge on turfgrass area to be measured in the direction of the mower cut

Fédération Internationale de Football Association (FIFA) is the international governing body of football and is no way associated with Turf-Tec International

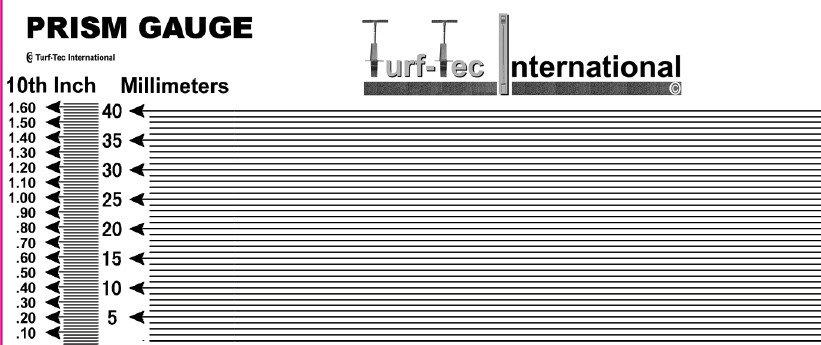

Turf-Tec Height of cut prism scale lines are in 1 millimeter increments and 1/10th of an inch increments  Details to 1 mm or .020 increment
The "quality" of cut may also be inspected by comparing the turf over the viewing plane of the prism. Graduated lines are inscribed at 1/8, 1/10th and 1/16th of an inch as well as 1 mm intervals and measures grass up to 1 5/8 inches or 40 millimeters tall. HGPRISM-G Model - Turf-Tec Height of cut prism scale lines are in 1/8th, 1/16th, 1/10th of an inch and 1 millimeter increments. Details to 1 mm or .020 increments

HGPRISM-FIFA-G Model - Turf-Tec FIFA Height of Cut Prism scale lines match FIFA size guidelines and shows 1.0 millimeter increments in a 175 mm Length and a 140 mm Height.  Unit also has .020 inch increments for reference
Turf-Tec International Grass Height Prism Gauge in hard case
Turf-Tec Height of Cut Prism Gauge is sold in protective hard case - Case measures 10 x 6 x 4 inches
Specifications:
Solid glass optics
Aircraft aluminum frame
Measurement scale shows 1.0 millimeter increments with a 150 mm length and a 140 mm height
Maximum measuring height scale is 40 mm or 1 5/8 inches
Unit also has 0.010 inch increments for imperial reference
Units prism glass is 5 1/2 inches (150 mm) in length and 2 3/8 inches in height (60 mm)
Prism Measures: 6 1/2 x 5 1/2 x 2 3/8 inches (16.5 x 14 x 6 cm)
Prism Weight: 2 lbs 8.7 oz (1.15 kg)
Case measures 10 x 6 x 4 inches (25 x 18 x 11 cm)
Prism and Case Weight:  3.75 lbs. (1.70 kg)

Turf-Tec Grass Height Prism Gauge can also be used for measuring the pile height in Artificial Grass athletic fieldsTurf-Tec Grass Height Prism Gauge can also be used for measuring the depth of runner infill topdressingTurf-Tec Grass Height Prism Gauge can also be used for measuring the fiber height in Artificial Grass sports fields

Turf-Tec Grass Height Prism Gauge can also be used for measuring the pile or fiber height in artificial grass athletic fields to determine if enough infill is installed between the pad and the fibers, for player safety and proper field maintenance.  It is also helpful for topdressing new rubber infill and grooming

HGPRISM-01-MM-G - Turf-Tec Height of Cut Prism Gauge with case

Click Here for Instructions

Click here for booklet from John Deere Golf "Factors that Affect Cut Quality"

Also see our Height of Cut Prism Laser Model Also see our Height of Cut Prism Laser Model

Also see our Height of Rough Gauge   Also see our Height of Cut - Rough Gauge

Warranty

Turf-Tec International Terms of Sale and Warranty LIMITED WARRANTY OF TURF-TEC INTERNATIONAL PRODUCTS Turfgrass Products Corporation - dba - Turf-Tec International ("Seller") warrants to the final purchaser, that all Turf-Tec International tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or improperly repaired by persons other than Turf-Tec International. To make a claim under this Limited Warranty, you must return the complete tool, transportation prepaid, to Turf-Tec International after contacting Turf-Tec International and receiving a return authorization number. Please include a dated proof of purchase with your tool. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY. Return Policy: Turf-Tec International has been in business since 1976 and we pride ourselves in producing quality tools that last for years and years. We offer a 100% satisfaction guarantee on all of our products and will gladly accept any return for a credit to be used at Turf-Tec International for future orders or a check refund may be issued. There is a 30% re-stocking fee for all returned merchandise whether an in house credit or a refund is requested and shipping charges will not be refunded. All returned merchandise must be new and in re-salable condition. Turf-Tec will only receive returns if a return authorization number is first obtained from Turf-Tec International. Again, all returned merchandise must be new and in re-salable condition and Turf-Tec does not pay return shipping fee's. Hold Harmless Agreement The seller shall protect, defend, indemnify and hold the purchaser and their respective assigns and their attorneys, accountants, employees, officers and directors harmless from and against all losses, costs, liabilities, claims, damages and expenses of every kind and character, as incurred, resulting from or relating to or arising out of the inaccuracy of results, injury of user, injury of sports participant, turfgrass loss, warranty, covenant or any agreement made by the seller in this agreement.
