Product Description

Turf-Tec MACROSCOPE portable monocular microscopes
20x 40x and 100x magnification power scopes with pen light and hard case

Turf-Tec MACROSCOPE portable monocular microscopes are designed to fill the need for superior image quality in simple, cost effective configurations for application in the field as well as research, production, quality control or wherever superior image quality is essential. Turf-Tec MACROSCOPE portable microscopes represent a significant departure from current day trends towards more sophistication and more elaborate features. Instead, they offer a simple, basic design and an ease of use not found in today's laboratory microscopes but without compromising optical or mechanical quality. Turf-Tec macroscopes are available in three magnification powers, MACROSCOPE 20X, Turf-Tec MACROSCOPE 40X and the Turf-Tec MACROSCOPE 100X Power Units. All three units produce images superior to most laboratory instruments in resolution, contrast, brightness and field of view but at only a fraction of the cost. All units incorporate a calibrated measuring reticle providing precise measurements of objects being viewed.

Unit bodies are constructed of solid aluminum, with aluminum and stainless steel parts and glass optics and are of the highest quality for long life. Each unit also comes with a pen light.

Turf-Tec MACROSCOPE 20X is a fixed magnification monocular unit that provides 20X magnification and is ideal for insect identification in turfgrass environments.  The MACROSCOPE 20X offers a 5/16 (0.8 mm) field of view.

The Turf-Tec MACROSCOPE 40X is a fixed magnification monocular unit that is equivalent in performance to instruments costing thousands of dollars but is much quicker and easier to use. The 40X MACROSCOPE is ideal for disease diagnosis on turfgrass plants.  The MACROSCOPE 40X offers a 3/16 inch (0.4 mm) field of view.

The Turf-Tec MACROSCOPE 100X is a fixed magnification monocular unit that excellent in performance to much more expensive instruments but is much quicker and easier to use. The 100X MACROSCOPE is ideal for disease diagnosis on turfgrass plants.  The MACROSCOPE 100X offers a 1/16 inch (0.15 mm) field of view.

Images produced by all three units are positional correct, making it easier to locate the precise area of interest. This is especially helpful under difficult circumstances or for the inexperienced user. The Macroscope is a simple mechanical design for portability. All three units can be used not only in the field but also for in-place observation of specific portions of large or immovable objects such as, golf greens, sports fields, bridge girders, an aircraft wing or windshield, cement structure, etc., without the need for destructive sampling for laboratory analysis.

Applications for the units are diversified and numerous. Archeology, botany, entomology, forensics, geology, horticulture, numismatics and philately, quality control and textiles are just a few of the disciplines that can benefit from the use of the Turf-Tec MACROSCOPE portable microscopes.

The Turf-Tec MACROSCOPE has been shown to be very effective in diagnosing Asian Soybean Rust (Phakopsora pachyrhizi).  Asian Soybean Rust is a fungal disease that can quickly defoliate soybean plants and reduce pod set, pod fill, seed quality and yield.  The Macroscope is also an excellent way to diagnose Citrus Greening, also called Huanglongbing or Yellow Dragon Disease, one of the more serious diseases of citrus. This bacterial disease is thought to have originated in China and is spread by Asian Citrus Psyllid Diaphorina Citri and the Asian Citrus Psyllid.  The Macroscope 40X is also useful in identifying Cryptic or Silverleaf Whitefly, (Bemisia Tabaci) Species Q vs B, spotted lanternfly, tropical thrips Thrips parvispinus),spotted-wing drosophila, Thrips parvispinus (pepper thrips) and cotton jassid.

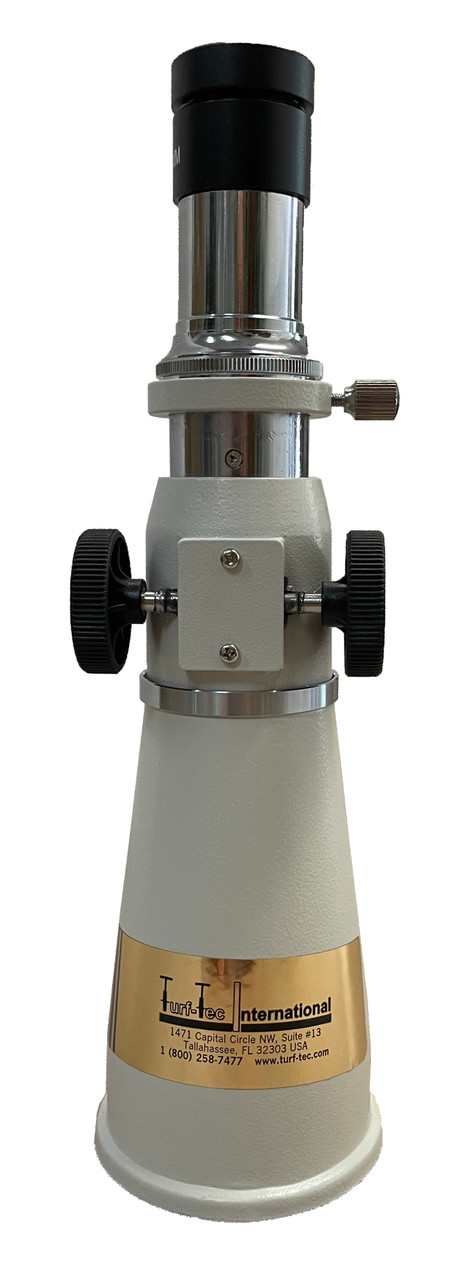

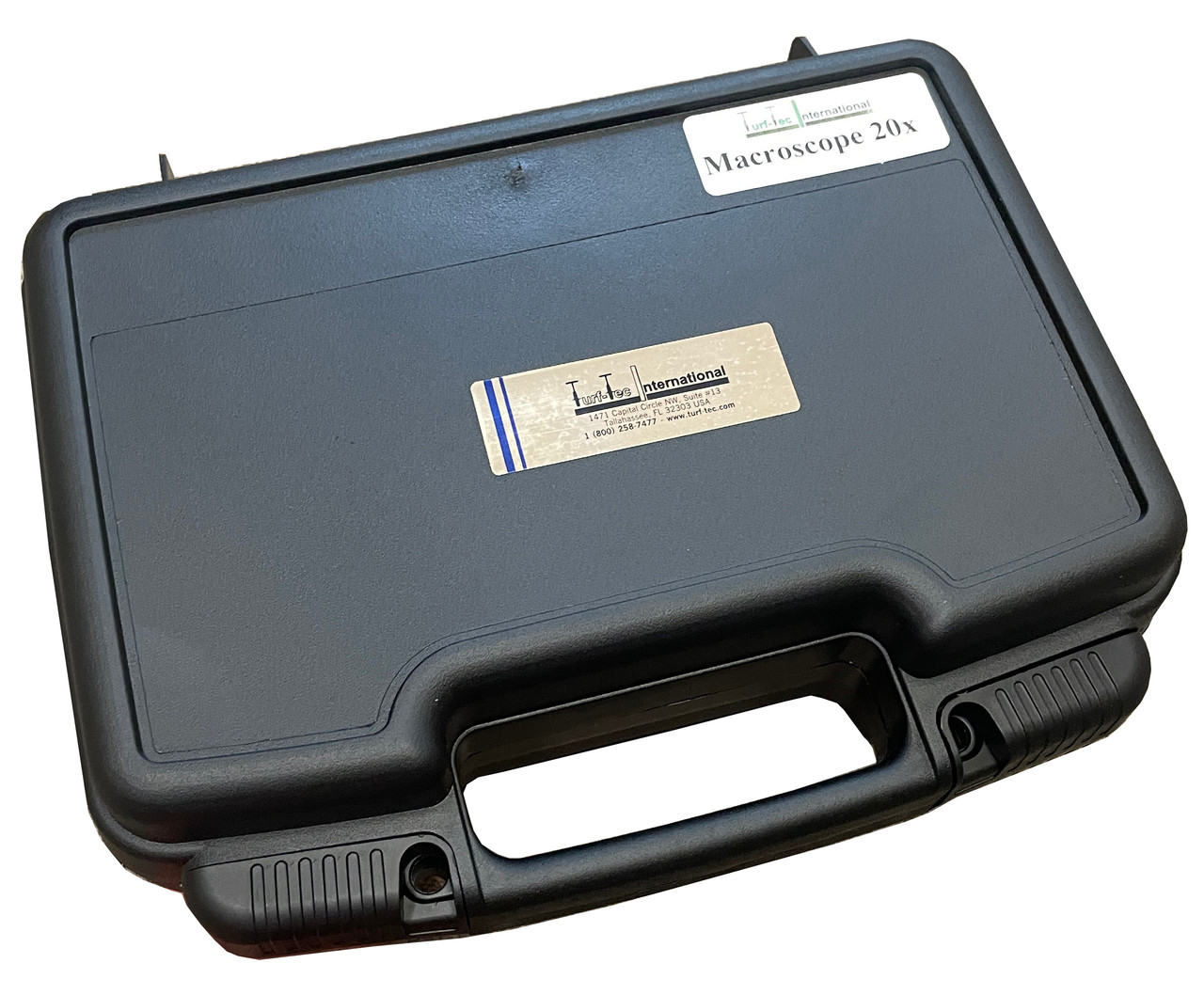

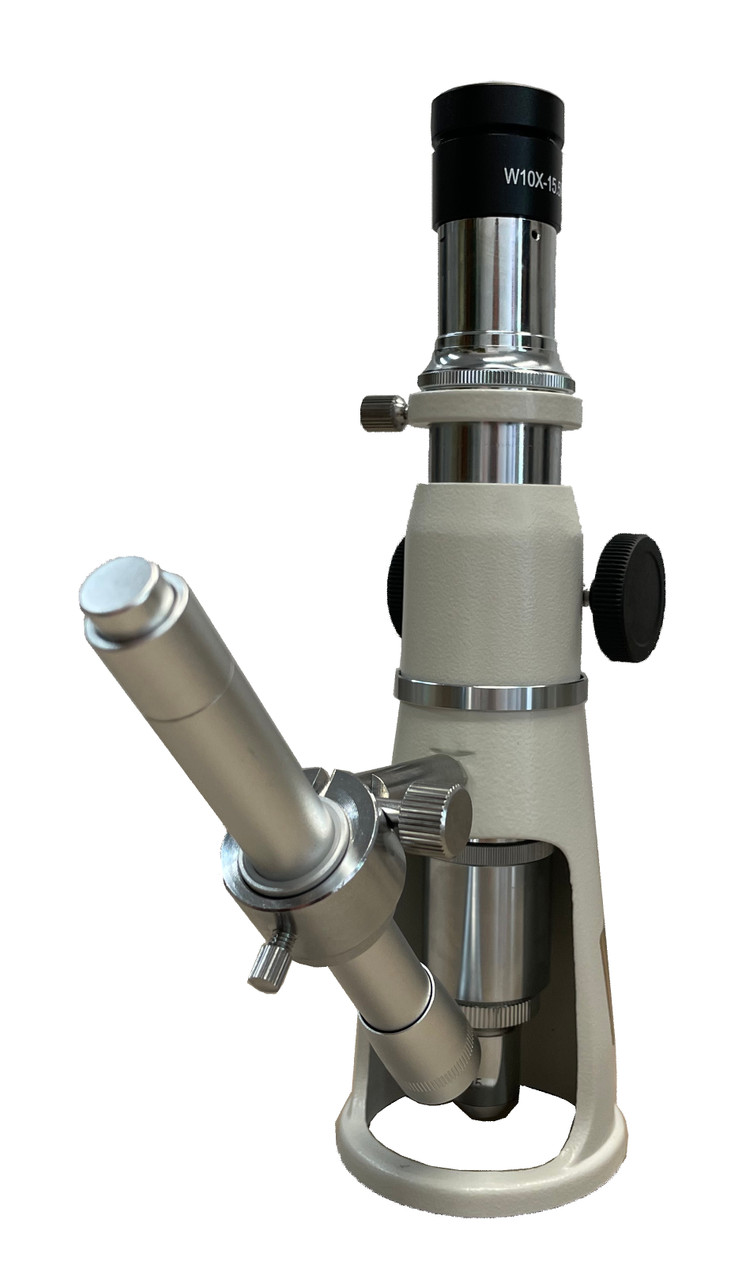

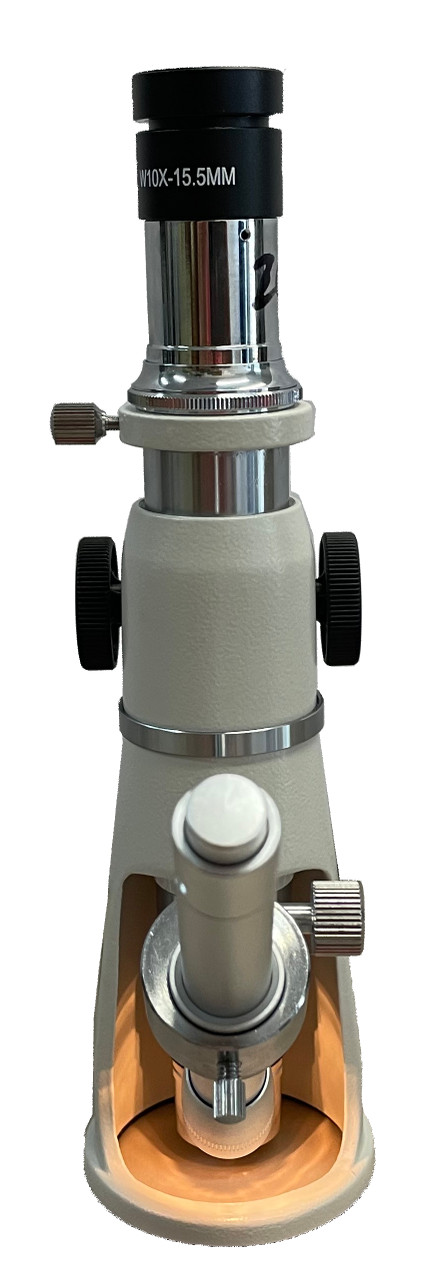

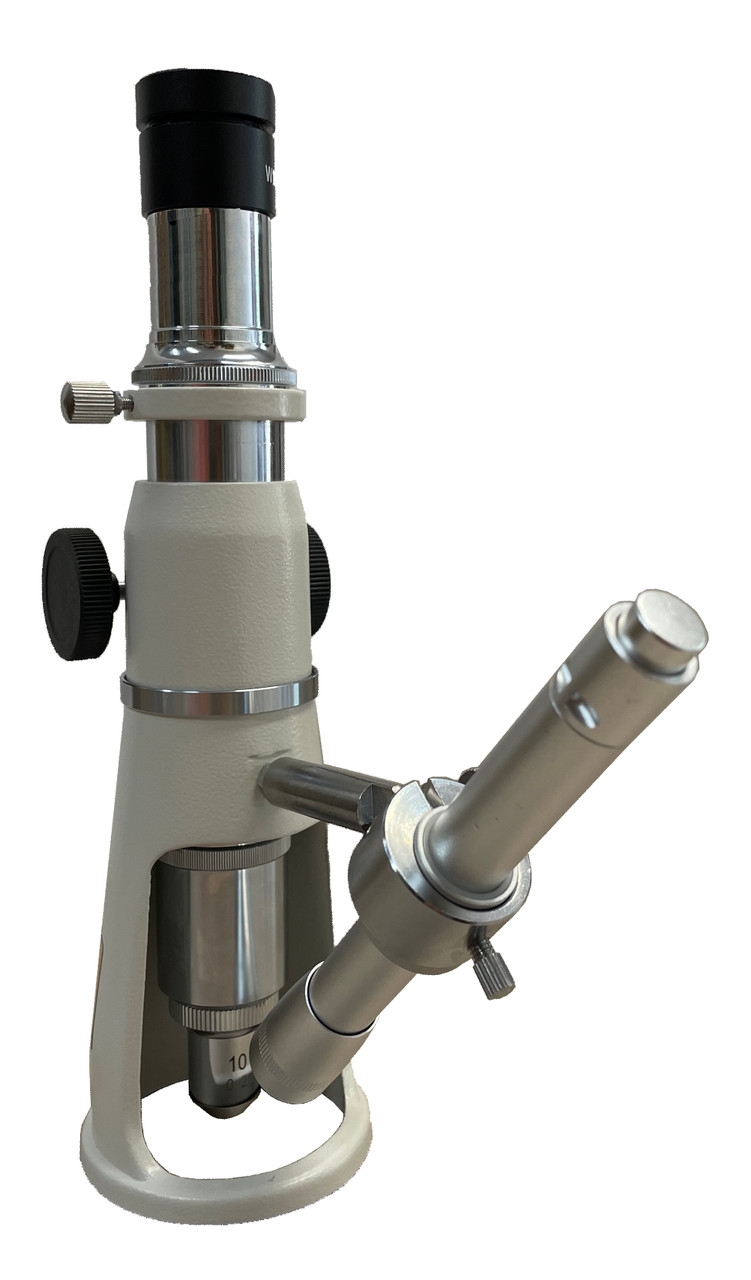

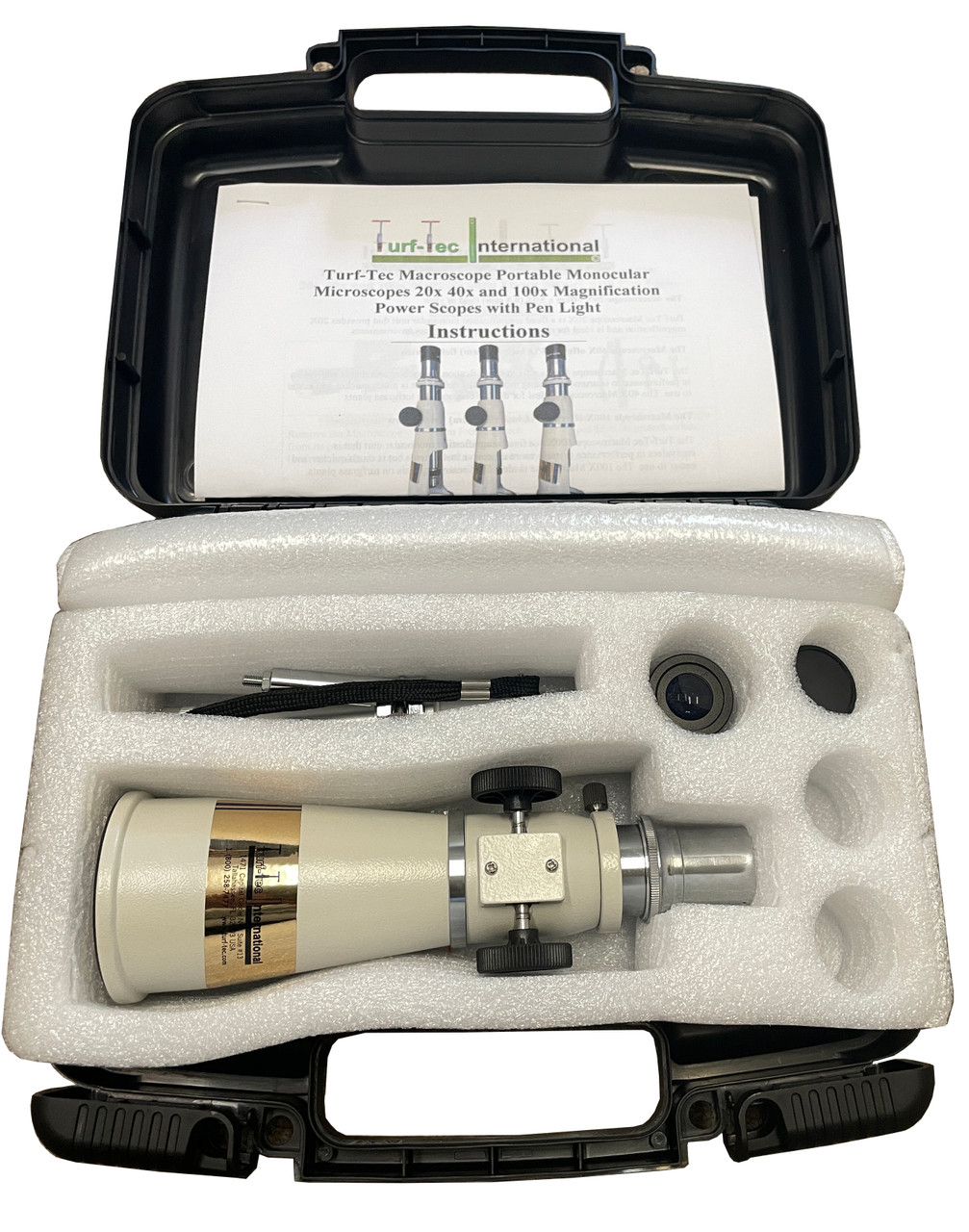

Front view Turf-Tec MACROSCOPE portable monocular microscopes 20x 40x and 100x with pen light and hard case (included)	Front view Turf-Tec MACROSCOPE portable monocular microscopes 20x 40x and 100x with pen light and hard case (included)	Front and back view Turf-Tec MACROSCOPE portable monocular microscopes 20x 40x and 100x with pen light and hard case (included)

MACROSCOPE portable monocular microscopes magnifications

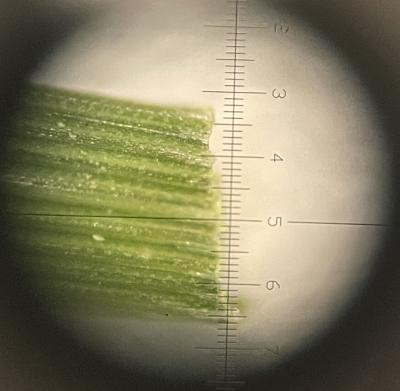

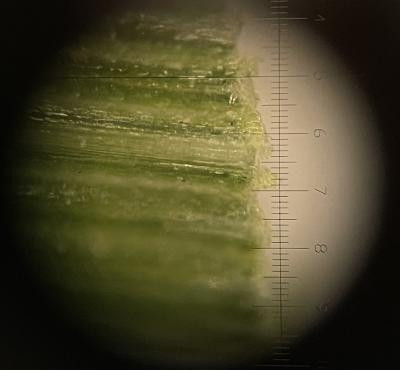

Sample of turfgrass leaf blade image from 20X Turf-Tec Macroscope monocular shown through Macroscope 20x Scope	Sample of turfgrass leaf blade image from 40X Turf-Tec Macroscope monocular shown through Macroscope 40x Scope	Sample of turfgrass leaf blade image from 100X Turf-Tec Macroscope monocular shown through Macroscope 100X Scope
Sample of turfgrass root image at 20X shown through Turf-Tec Macroscope monocular 20x power scope	Sample of turfgrass root image at 40X shown through Turf-Tec Macroscope monocular 40x power scope	Sample of turfgrass root image at 100X shown through Turf-Tec Macroscope monocular 100x power scope
Sample of sand particles image at 20X shown through Turf-Tec Macroscope monocular 20x power scope	Sample of sand particles image at 40X shown through Turf-Tec Macroscope monocular 40x power scope	Sample of sand particles image at 100X shown through Turf-Tec Macroscope monocular 100x power scope
Units Available 20x Power	Units Available 40x Power	Units Available 100x Power
MACR20-2-L - MACROSCOPE 20X Power Turf-Tec MACROSCOPE 20X offers a 5/16 (0.8 mm) field of view	MACR40-2-L - MACROSCOPE 40X Power The Turf-Tec MACROSCOPE 40X offers a 3/16 inch (0.4 mm) field of view	MACR100-2-L - MACROSCOPE 100X Power The Turf-Tec MACROSCOPE 100X offers a 1/16 inch (0.15 mm) field of view

Specifications

Accessories Available
MACRCCA-2-L - USB Digital Microscope and stand - 20x & 300x - 5 Mega Pixel Attachment	MACRLT-L - Macroscope Light Table

Click here for Instructions

MACR20-2-L - MACROSCOPE 20X Power
MACR40-2-L - MACROSCOPE 40X Power
MACR100-2-L - MACROSCOPE 100X Power
