Product Description
Turf-Tec USB Digital Microscope and stand - 20x & 300x - 5 Mega Pixel Camera
The new 2021 Turf-Tec USB Digital Microscope and stand connects directly to any computer with a USB port. This product allows you to view and scan still images, as well as video from 20x to 300x magnification. It is a 5 Mega Pixel camera. USB Camera can be mounted in the sturdy stand or removed and used as a stand-alone hand scope. Eight LED lights encircle the camera for excellent bright viewing, and the LED lights can be adjusted for intensity of brightness.
The Turf-Tec USB Digital Microscope has been shown to be very effective in diagnosing Asian Soybean Rust (Phakopsora pachyrhizi). Asian Soybean Rust is a fungal disease that can quickly defoliate soybean plants and reduce pod set, pod fill, seed quality and yield. The Macroscope is an excellent way to diagnose Citrus Greening, also called Huanglongbing or Yellow Dragon Disease, which is one of the more serious diseases of citrus. This bacterial disease is thought to have originated in China and is spread by Asian Citrus Psyllid Diaphorina Citri and the Asian Citrus Psyllid. Turf-Tec USB Digital Microscope is also useful in identifying Cryptic or Silverleaf Whitefly, (Bemisia Tabaci) Species Q vs B.
Software functions include: | Unit comes with: |
---|---|
Capture Photo Capture Video Timer (Photo / Video) Calibration and Measurement Draw and Text onto photos |
Digital 20x & 300x - 5 Mega Pixel Microscope Stand with holders Calibration / Measuring ruler Software CD Instruction manual |
Side view Turf-Tec USB Digital Microscope and stand - 20x & 300x with 5 Mega Pixel Camera, LED Lights and calibration scale
|
Top view Turf-Tec USB Digital Microscope and stand - 20x & 300x with 5 Mega Pixel Camera, LED Lights and calibration scale
|
Turf-Tec USB Digital Microscope and stand shown with computer (Not included) for 20x to 300x with 5 Mega Pixel Camera, LED Lights and calibration scale
|
Turf-Tec USB Digital Microscope and stand shown with box, calibration scale and CD for 20x to 300x with 5 Mega Pixel Camera
|
Using Turf-Tec USB Digital Microscope without stand for subject evaluation from 20x to 300x with 5 Mega Pixel Camera
|

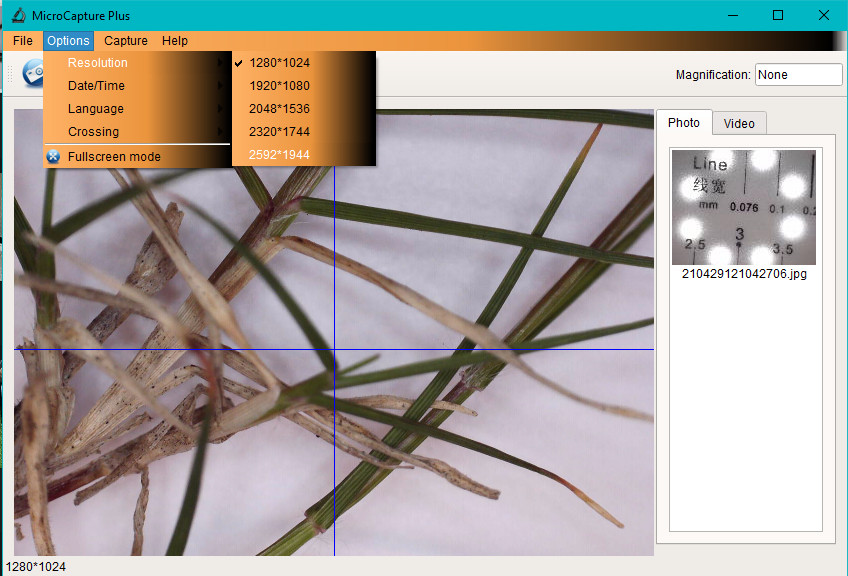

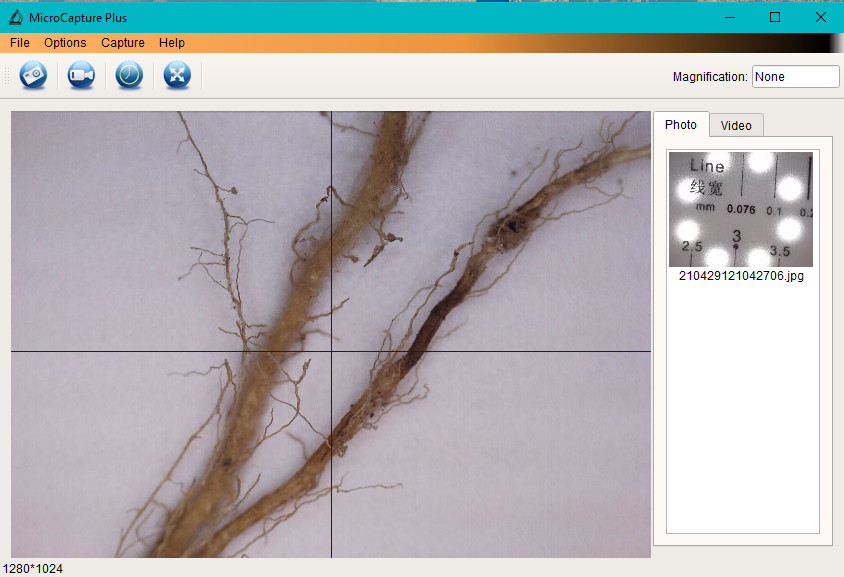

Samples of screen view using software included with Turf-Tec USB Digital Microscope with 5 Mega Pixel Camera for still photo or video capture
|
Specifications
Computer System Requirements
|
Windows 7 / 8 / 10 / Mac 10.14 or later / Android 4.0 or later / P4 1.8 or above / RAM: 1GB / USB port: 2.0 |
Image sensor
|
5 Mega Pixels (true resolution) |
Still capture resolution
|
2592x1944, 2320x1744,2048x1536,1920x1080, 1280x1024 |
Video capture resolution
|
2592x1944, 2320x1744,2048x1536,1920x1080, 1280x1024 |
Focus Range
|
Manual focus from 0mm to 150mm |
Magnification Ratio
|
10x to 300x |
Video format
|
AVI |
Photo format
|
JPEG |
Light source
|
LEDs (brightness adjustable) |
PC interface
|
USB2.0 |
Power source
|
5V DC from USB port |
Bundle software
|
MicroCapture Plus (with measurement for Win/Mac) / TinyScope for Android |
Operation system
|
Windows 7 / 8 / 10, Mac 10.14 or later - Android 4.0 or later |
OSD language
|
English, Deutsch, Spanish, Russian, Italian, French, Portuguese, Dutch, Polish, Japanese, Korean, Chinese |
Size Microscope:
|
110mm (L) x 33mm (R) |
Size of stand
|
165mm(L) x118mm(W)x12mm (H) |
