IN8-W - Turf-Tec Heavy Duty Tall Infiltration Rings - 6" X 12" X 7"

$500.00
SKU:
IN8-W
Adding to cart… category.add_cart_announcement

Product Description

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026This product is made by Turf-Tec International in the USA

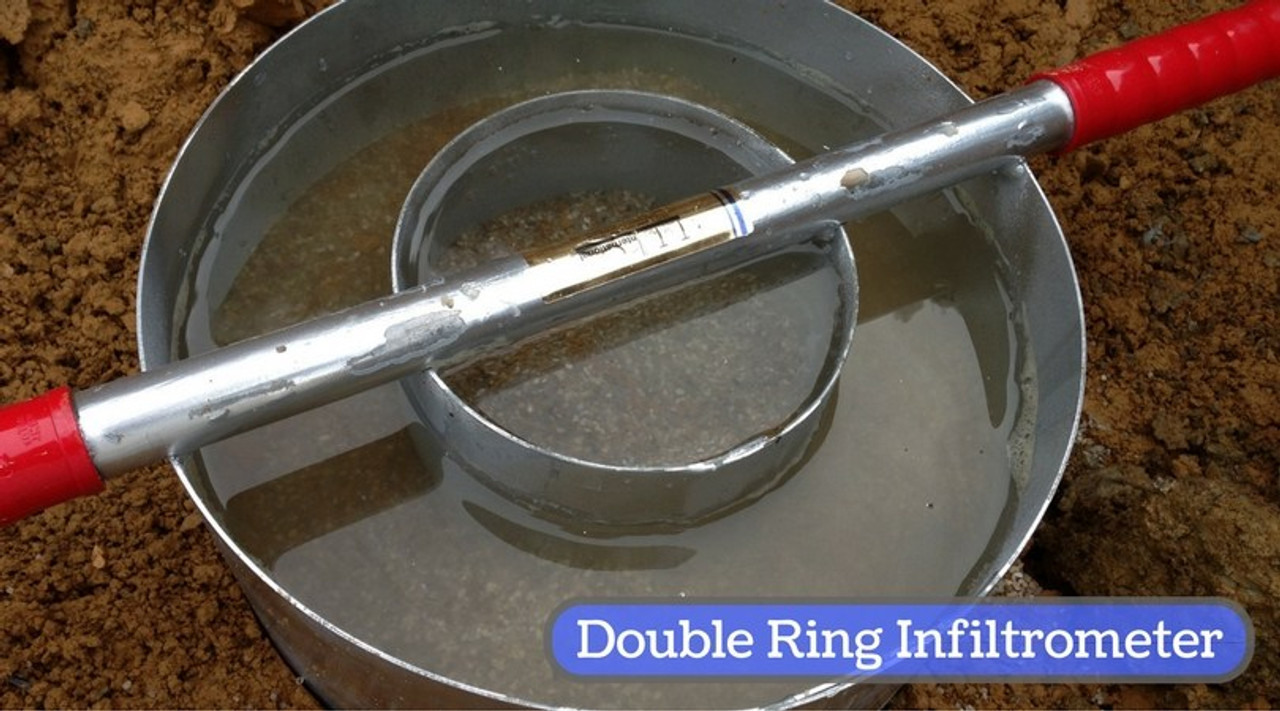

IN8-W -  Turf-Tec Heavy Duty Tall Infiltration Rings 6 and 12 inch diameter by 7 inches tall Double Ring Infiltrometer

The new Turf-Tec Heavy Duty Tall Infiltration Rings allow the field infiltration rates to be measured. This tool conforms to the new 2006 Pennsylvania Stormwater Best Management Practices Manual.

The Turf-Tec Heavy Duty Tall Infiltration Rings have a 6 inch inner ring and a 12 inch outer ring with a 7 inch height. A gripped rubber handle is welded across the rings to keep them concentric and allow easy insertion into, and removal from the soil. These rings are ideal for rocky or hard soil types.

IN8-W Shown with optional IN6-W driving plate





The new Turf-Tec Heavy Duty Tall Infiltration Rings allow the field infiltration rates to be measured. This tool conforms to the 2006 Pennsylvania Stormwater Best Management Practices Manual.

The Turf-Tec Heavy Duty Tall Infiltration Rings have a 6 inch inner ring and a 12 inch outer ring with a 7 inch height. A gripped rubber handle is welded across the rings to keep them concentric and allow easy insertion into, and removal from, the soil. These rings are ideal for hard soil types.  These Infiltration Rings are constructed of heavy duty 16 gauge (.065 inch) galvanized steel to prevent rust and ensure a long life.

Determine soil infiltration rate in a little as fifteen minutes*

Now, for the first time, a field instrument to measure the rate of water infiltration on all areas. This instrument determines the downward flow of water through the soil. The rings are centered by the welded handle on the top of the unit; this ensures the rings stay in place while driving them into the soil. The double ring ensures accuracy.

Now you can connect IN8 to Mariotte Tubes by ordering IN8P-W as shown below.

* 15 minute test is after soil reaches saturation



Check Infiltration on:

  • Soil Evaluation

  • Retention Ponds

  • Wetlands

  • Drain fields

  • Forestry

  • Site Planning

  • Stormwater Recharge Areas

  • Golf Courses

  • Sports Fields

  • New Construction

Specifications:

  • Six inch and twelve inch rings (15.24 cm X 30.48 cm)

  • Height of seven inches (17.78 cm)

  • Weight 14 lbs (6.8 kg)

  • Sturdy Construction

  • Rust proof galvanized metal 16 gauge (.065 inch)

  • Double ring

  • Rings are welded into place to ensure proper placement

  • Economical

  • Easy to Use

  • OPTIONAL - Unit can be purchased with ports added to allow IN12-W Mariotte Tubes to be attached (Model IN8P-W)

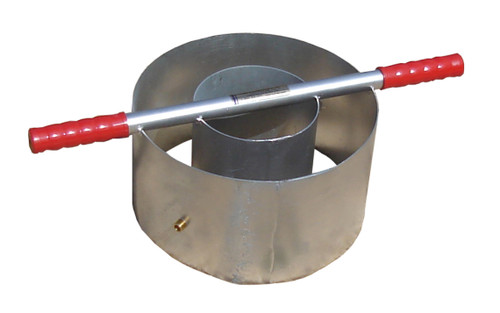

Photo showing IN8P-W Turf-Tec Heavy Duty Tall Infiltration Rings - 6 and 12 inch diameter by 7 inches tall with ports for optional Mariotte Tubes

Photo showing IN8P-W Turf-Tec Heavy Duty Tall Infiltration Rings - 6 and 12 inch diameter by 7 inches tall with ports for optional Mariotte Tubes

Click here to download Turf-Tec International's free Excel spreadsheet for IN7-W, IN8-W and IN8P-W - 6 and 12 inch Infiltration Rings infiltration test





The new Turf-Tec Heavy Duty Tall Infiltration Rings conform to the new 2006 Pennsylvania DEP (Department of Environmental Protection) recommendations to test stormwater for soil evaluation and for Infiltration BMP's Design Guidelines.
BMP Manual Appendix C
See Appendix C - Protocols for Structural BMP's



Click Here for Instructions on This Product



IN8-W  - Turf-Tec Heavy Duty Tall Infiltration Rings 6 and 12 inch diameter by 7 inches tall
