IN10-W - Turf-Tec Infiltration Rings 12 and 24 Inch - ASTM 3385 - with port for IN12-W or IN13-W Mariotte Tubes

$875.00
SKU:
IN10-W
Adding to cart… category.add_cart_announcement

Product Description

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026This product is made by Turf-Tec International in the USA

Turf-Tec International ASTM Infiltration Rings

ASTM 3385 Double Ring Infiltrometer

IN10-W: 12 and 24 Inch Diameters for ASTM 3385

The new Turf-Tec Infiltration Rings have diameters of 12 and 24 Inches (600 MM and 300 MM) and an overall height of 20 inches (500 MM) that match ASTM standards. These double ring Infiltration rings are double ring for standard testing of soils with a hydraulic conductivity between 1X10-2 cm/s or sand type soils with high infiltration rates. They match ASTM Standard D 3385-03 which replaced old ASTM D 3385-94. These infiltration rings are ideal for taking ASTM infiltration tests on all areas and match the ASTM 3385 test.

This method of testing is useful for field measurement of the infiltration rate of soils. Infiltration rates have applications in the field of liquid waste disposal, evaluation of potential septic tank disposal fields, leaching studies and drainage efficiencies. They are also helpful in determining irrigation requirements, water spreading or recharge, canal leakage and reservoir leakage testing and studies. They match ASTM Standard D 3385-03 which replaced old ASTM D 3385-94. These infiltration rings are ideal for taking ASTM infiltration tests on all areas and match the ASTM 3385 test.

The new Turf-Tec Infiltration Rings have diameters of 12 and 24 inches (60 cm and 30 cm) and an overall height of 20 inches (50 cm) that match ASTM Standard D3385-09, which replaced old ASTM D3385-94 and ASTM D3385-03.

The Turf-Tec Infiltration Rings are double rings used for standard testing of soils with a hydraulic conductivity between 1 X 10-2 cm/s or less than about 1 X 10-6 cm/s, or sand type soils with high infiltration rates.

This Double Ring Infiltrometer set is constructed of heavy duty and durable galvanized steel and braced with welded steel supports, inside and out, to ensure the rings stay evenly centered as they penetrate the soil.

These Infiltration Rings are constructed of heavy duty 16 gauge (.065 inch) galvanized steel to prevent rust and ensure a long life. They also contain ports to allow easy connection of Turf-Tec Mariotte Tubes. These rings provide an ASTM approved double ring infiltration test which provides a soil infiltration test in a simple yet efficient manner.

Turf-Tec 12 and 24 inch Infiltration Rings are already centered in position for ease of positioning rings and ease of insertion into the soil.  The welded handle and welded inside support braces ensure the rings are perfectly centered with every test.  In addition, the center ring is already suspended 1 inch above the outer ring to identically match the ASTM specifications and to ensure exact soil placement.

This method of testing is useful for field measurement of the infiltration rate of soils.  Infiltration rates have applications in the field of liquid waste disposal, evaluation of potential septic tank disposal fields, leaching studies and drainage efficiencies.  They are also helpful in determining irrigation requirements, water spreading or recharge, canal leakage and reservoir leakage testing and studies.

The Turf-Tec 12 and 24 inch ASTM Infiltration Rings are useful in industries like geology, geotechnical, engineering, hydrology, forestry, environmental testing, hydrogeological, runoff studies, wetland mitigation, permeability testing, sanitation contractors, project planning and EPA requirements.The purpose of the double ring is to ensure the downward flow of movement of water to ensure proper measurements. These Infiltration Rings are ideal for taking ASTM infiltration tests on all areas and match the ASTM 3385 test.

The Turf-Tec 12 and 24 inch ASTM Infiltration Rings are useful in industries like geology,  geotechnical, engineering, hydrology, forestry, environmental testing, hydro geological, runoff studies, rain gardens, wetland mitigation, permeability testing, sanitation contractors, project planning, Professional Engineers (P.E.) and EPA requirements.  Double Ring Infiltrometer, standard set.

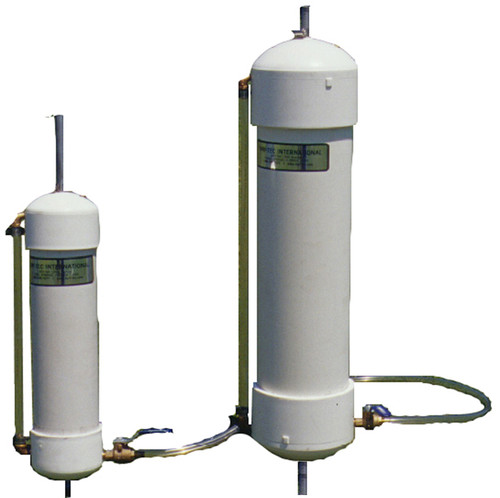

Mariotte Tubes are  also available and highly recommended to maintain constant head pressure (IN12  Purchased separately)

Turf-Tec Infiltration Rings 12 and 24 inch come with Excel Spreadsheet for easy data recording.

Also see the IN11-W Driving plates for the 12 and 24 Inch Infiltration rings.



Also see the IN11-W  Driving plates for the 12 and 24 Inch Infiltration rings

Also see the New Turf-Tec Mariotte Tubes (IN12-W) to allow you to maintain a constant head pressure.

..also see the New Turf-Tec Mariotte Tubes (IN12-W) to allow you to maintain  a constant head pressure

... also see our new Large Volume Turf-Tec Mariotte Tubes (IN13-W) to allow a constant head pressure to be maintained over a longer test period.

... also see our new Large Volume  Turf-Tec Mariotte Tubes (IN13-W) to allow a constant head pressure to be  maintained over a longer test period

Specifications:

  • Inner Ring is 12 inches diameter (30 cm)

  • Outer Ring is 24 inch diameter (60 cm)

  • Overall Height of 20 inches (50 cm)

  • Unit Weight 50 lbs (22.7 kg)

  • Sturdy Construction - Rings are welded into place to ensure proper placement

  • Inner ring is suspended 1 inch above outer ring to match ASTM D3385-09 Specifications

  • Rust resistant galvanized steel is 16 gauge (.065 inch thick)

  • Top welded steel braced handles for ease of insertion and removal from test area

  • Four 1/4 inch steel reinforcing braces ensure center ring and outer ring stay in alignment during testing

  • Rings come with brass ports for the attachment of optional IN12-W Mariotte Tubes

  • Entire ring comes fully assembled and ready to use right out of the box

Free downloadable spreadsheet for ASTM 3385 Infiltration Testing
