IN13-W - Turf-Tec Large Volume Mariotte (100 liter or 26 gallons each) Tubes (for IN10-W or IN14-W) ASTM 3385 Infiltration Rings

$2,400.00
SKU:
IN13-W
Adding to cart… category.add_cart_announcement

Product Description

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026This product is made by Turf-Tec International in the USA

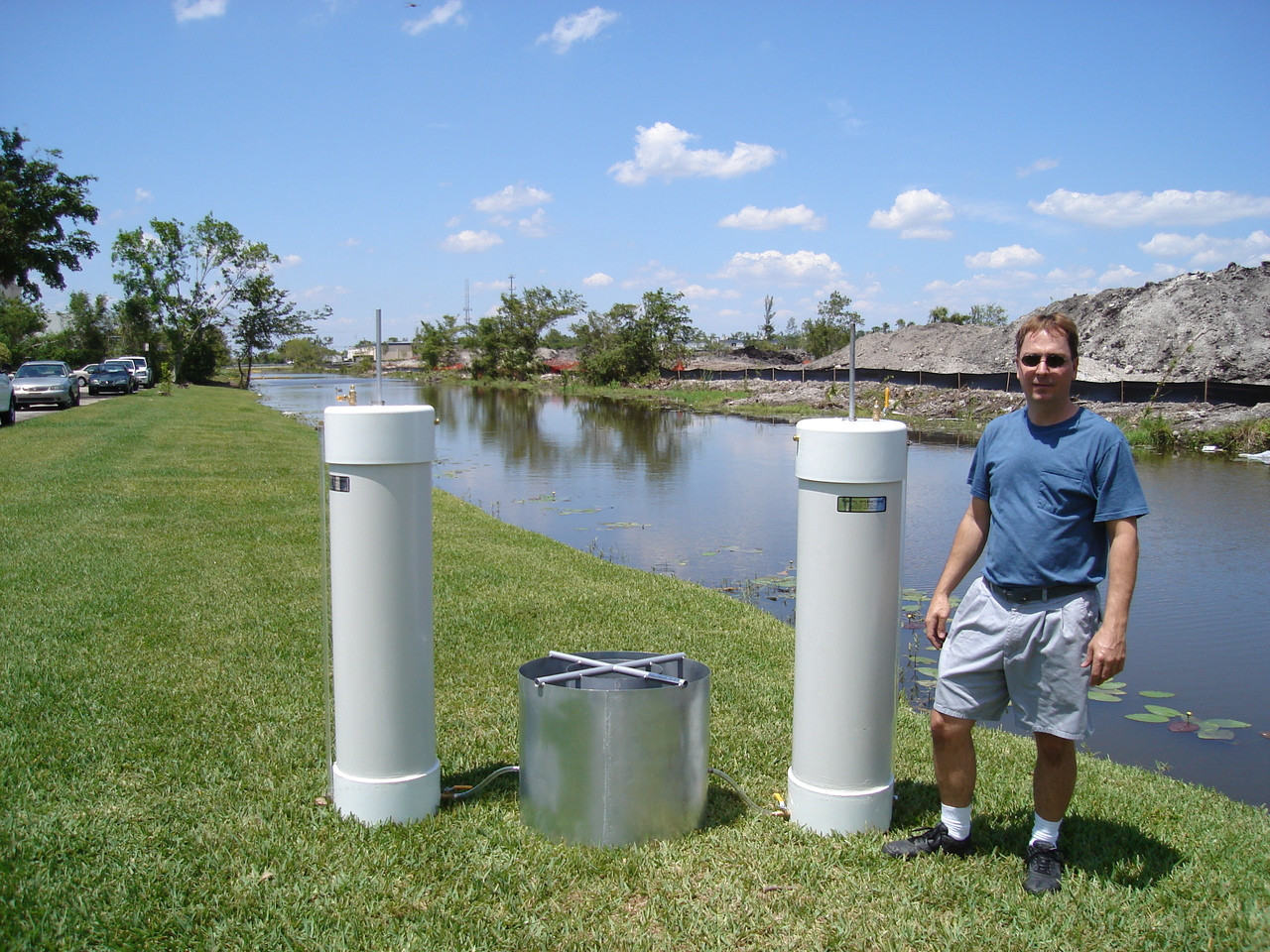

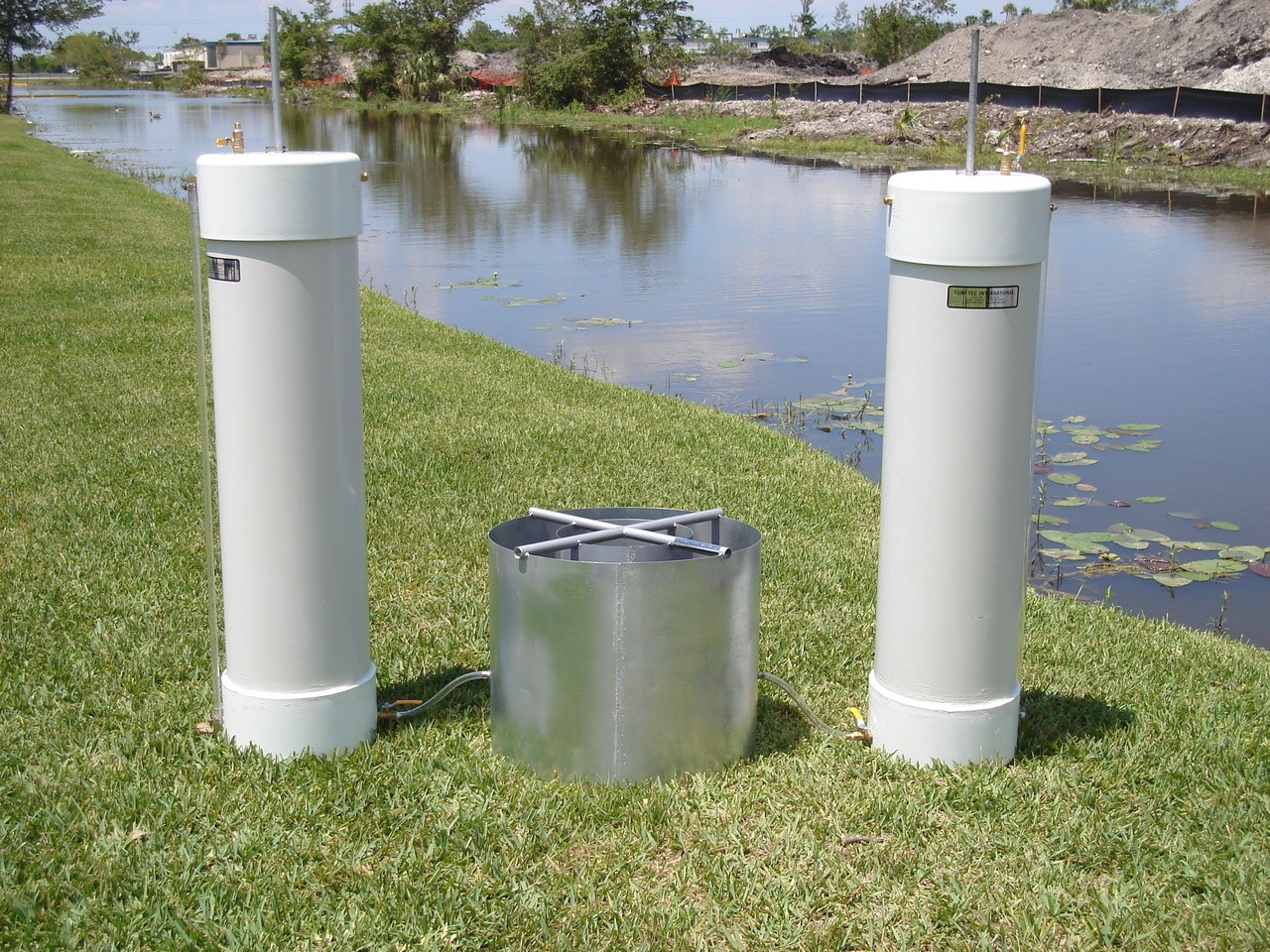

Turf-Tec International Large Volume Mariotte Tubes for use with 12 and 24 Inch Diameters  Infiltration Rings for ASTM 3385

IN13-W:  Large Volume Mariotte Tubes

The new Turf-Tec Large Volume Mariotte Tubes match the ASTM for standard testing of soils with a hydraulic conductivity between 1X10-2 cm/s or sand type soils with high infiltration rates. These tubes are a companion tool for using with the Turf-Tec 12 and 24 inch Infiltration Rings (IN10-W). They match the ASTM Standard D 3385-03 which replaced old ASTM Standard D 3385-94.



 The new Turf-Tec Large Volume Mariotte Tubes match the ASTM for standard testing of soils with a hydraulic conductivity around 1X10-2 cm/s or loose sand type soils with very high infiltration rates.  The new large volume tubes can also hold a large volume of water for extended testing periods.

These tubes are a companion tool for using with the Turf-Tec 12 and 24 inch Infiltration Rings (IN10-W).  They match the ASTM Standard D 3385-03  which replaced old ASTM Standard D 3385-94.

The Turf-Tec Large Volume Mariotte Tubes are constructed of durable heavy wall PVC tubing with solid brass and stainless steel hardware for many years of service.  The Large Volume Mariotte Tubes allow for measurement of liquids flow during the  infiltration test.

The Turf-Tec Large Volume Mariotte Tubes allow for measurement of liquids flow during the infiltration test  by providing a constant flow of water into the Turf-Tec 12 and 24 inch  Infiltration Rings. The set consists of two Large Volume Mariotte Tubes, each one containing 100,000 ml (100 liter or about 26 gallons). The tops are removable for easy maintenance and cleaning and the site glass is calibrated in 250 ml increments.   Each tube is fitted with a solid brass valve to regulate the flow of water from  the Mariotte tube and into the Turf-Tec 12 and 24 inch Infiltration Rings.   Once the flow rate of liquid from the Mariotte Tubes is consistent with the  infiltration into the soil from the Turf-Tec 12 and 24 inch Infiltration Rings,  the calibrated sight glass on the side of the tubes can be checked for infiltration  rates.  The Turf-Tec Large Volume Mariotte Tubes allows testing personnel the ability to perform other  tasks and periodically check and record the infiltration rate instead of manually filling the Infiltration rings by hand.

This method of testing is useful for field measurement of the infiltration rate of soils.  Infiltration rates have applications in the field of liquid waste disposal, evaluation of potential septic tank disposal fields, leaching studies and drainage efficiencies.  They are also helpful in determining irrigation requirements, water spreading or recharge, canal leakage and reservoir leakage testing and studies.  The purpose of the double ring is to insure the downward flow of movement of  water to insure proper measurements.  These infiltration rings are ideal  for taking ASTM infiltration tests on all areas and match the ASTM 3385 test.



The Turf-Tec Large Volume Mariotte Tubes allow for measurement of liquids flow during the infiltration test by providing a constant flow of water into the Turf-Tec 12 and 24 inch Infiltration Rings. The set consists of two Large Volume Mariotte Tubes, each one containing 100,000 ml (1,000 liter or about 26 gallons). The tops are removable for easy maintenance and cleaning and the site glass is calibrated in 250 ml increments. Each tube is fitted with a solid brass valve to regulate the flow of water from the Mariotte tube and into the Turf-Tec 12 and 24 inch Infiltration Rings. Once the flow rate of liquid from the Mariotte Tubes is consistent with the infiltration into the soil from the Turf-Tec 12 and 24 inch Infiltration Rings, the calibrated sight glass on the side of the tubes can be checked for infiltration rates. The Turf-Tec Large Volume Mariotte Tubes allows testing personnel the ability to perform other tasks and periodically check and record the infiltration rate instead of manually filling the Infiltration rings by hand.

Mariotte Tubes have calibrated site glasses
Specifications for 100,000 ml Turf-Tec Large Volume Mariotte Tube

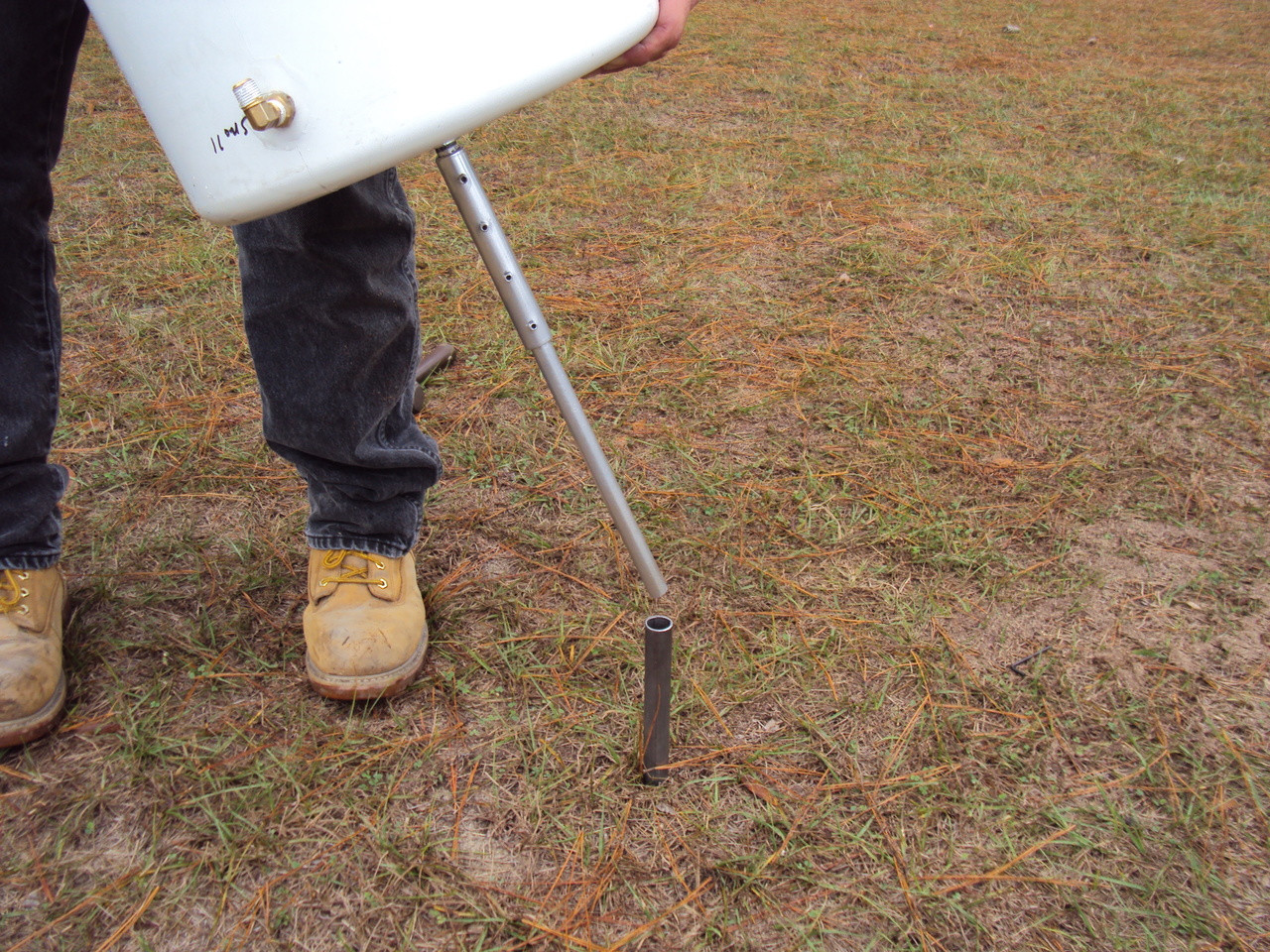

Construction: Heavy wall PVC Volume over 100,000 ml (100 liter or 26 gallons) Site Glass calibrated in 250 ml levels Steel center support spike Steel center driving spike Stainless steel and brass fittings and valves Fully adjustable fill valve and outlet valve Clear site glass located on side Vinyl hose for connecting to IN10-W or IN14-W Infiltration Rings included Overall Height without bottom spikes attached 60" Inches tall Overall height with spikes attached 72" Inches Tall Overall Width 14" Inch Diameter



IN13-W - Turf-Tec International Large Volume Mariotte Tubes*

* To be used in conjunction with Turf-Tec 12 and 24 inch Infiltration Rings (IN10-W) or (IN14-W)
