IN7-W - Heavy Duty Infiltration Rings - 6 & 12 Inch Diameter x 4 Inches Tall

$425.00
SKU:
IN7-W
Adding to cart… category.add_cart_announcement

Product Description

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026

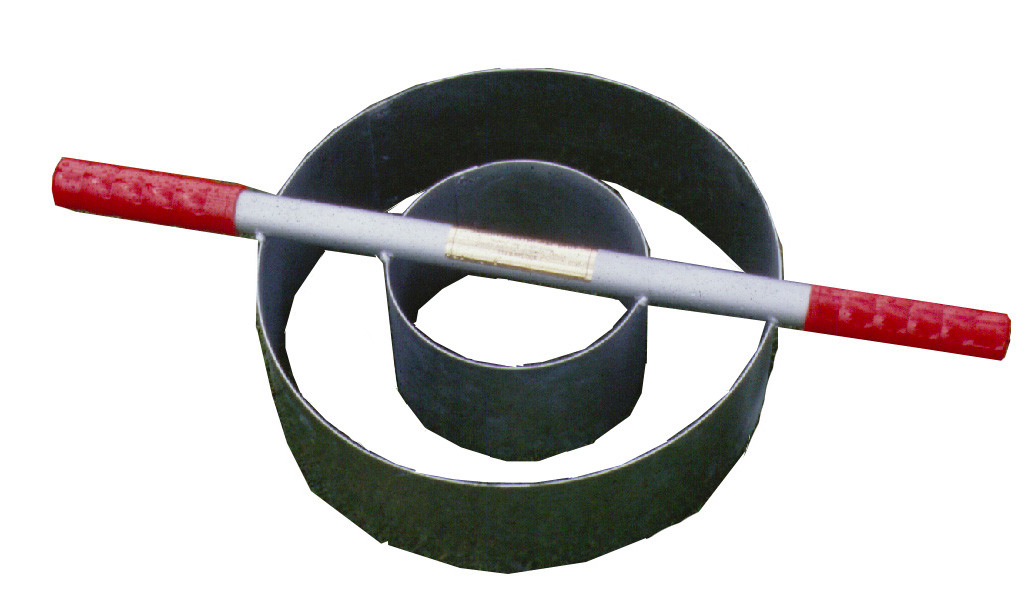

IN7-W - Turf-Tec Heavy Duty Double Ring Infiltration Rings 6 and 12 inch diameter by 4 inches tall

 The new Turf-Tec Heavy Duty Infiltration Rings allow the field testing of soil infiltration rates quickly and easily with minimal amounts of time and water. These Turf-Tec Heavy Duty Infiltration Rings are designed to be inserted into the soil to a depth of two inches deep and then the rings are filled with water. The drop in water in the center ring is then measured over time to determine the rate of infiltration. These rings are made out of heavier gauge steel for rocky or hard soil types. These Infiltration rings are constructed of heavy duty 16 Gauge (.065 inch) galvanized steel to prevent rust and insure a long life. This tool is ideal for geotechnical students as well as anyone who wants to take a quick double ring infiltration test. They have a 6 inch inner ring and a 12 inch outer ring with a 4 inch height. A gripped rubber handle is attached to allow easy insertion into the soil.These Turf-Tec Heavy Duty Infiltration Rings are designed to be inserted into the soil to a depth of two inches deep and then the rings are filled with water. The drop in water in the center ring is then measured over time to determine the rate of infiltration. These rings are made out of heavier gauge steel for rocky or hard soil types. These Infiltration rings are constructed of heavy duty 16 Gauge (.065 inch) galvanized steel to prevent rust and insure a long life.

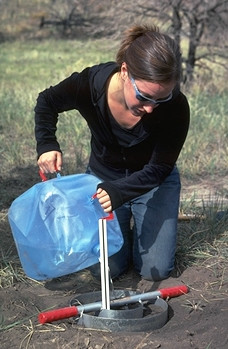

Turf-Tec Heavy Duty Double Ring Infiltration Rings being filoled with water for testing soil infiltration rates

The new Turf-Tec Heavy Duty Infiltration Rings allow the  field testing of soil infiltration rates quickly and easily with minimal amounts of time and water.  These Turf-Tec Heavy Duty Infiltration Rings are designed to be inserted  into the soil to a depth of two inches deep and then the rings are filled with  water. The drop in water in the center ring is then measured over time to  determine the rate of infiltration. These rings are made out of heavier gauge  steel for rocky or hard soil types. These Infiltration rings are constructed of  heavy duty 16 Gauge (.065 inch) galvanized steel to prevent rust and insure a  long life. This tool is ideal for geotechnical students as well as anyone who  wants to take a quick double ring infiltration test. They have a 6 inch inner  ring and a 12 inch outer ring with a 4 inch height. A gripped rubber handle is  attached to allow easy insertion into the soil.
These Turf-Tec Heavy Duty Infiltration Rings are designed to be inserted into  the soil to a depth of two inches deep and then the rings are filled with water.  The drop in water in the center ring is then measured over time to determine the  rate of infiltration. These rings are made out of heavier gauge steel for rocky  or hard soil types. These Infiltration rings are constructed of heavy duty 16  Gauge (.065 inch) galvanized steel to prevent rust and insure a long life.

Check Infiltration on:

  • Golf greens
  • Fairways
  • Golf tees
  • Sports fields
  • New construction
  • Lawns
  • Playgrounds
  • Wetlands
  • Drain fields
  • Septic systems
  • Forestry
  • Farms

Specifications:

  • Six inch and twelve inch rings (15.24 cm X 30.48 cm)
  • Height of four inches (10.16 cm)
  • Weight 7 lbs (3.2 kg)
  • No damage to turf or soil
  • Sturdy construction
  • Rust proof galvanized metal 16 Gauge (.060 inch)
  • Double ring
  • Rings are welded into place to insure proper       placement
  • Economical
  • Easy to use

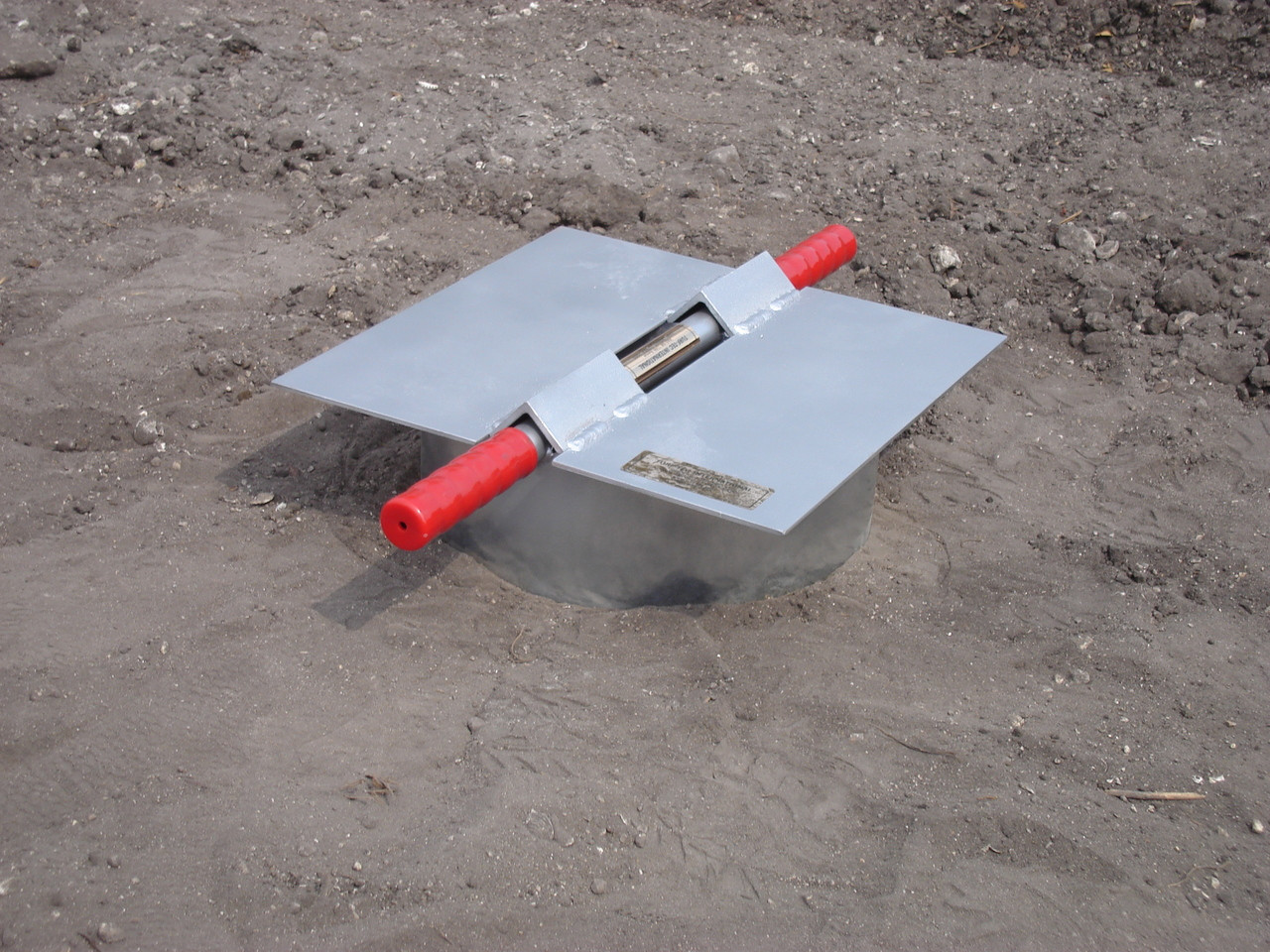

 The Turf-Tec Heavy Duty Infiltration Rings IN7-W Shown with optional IN6-W driving plate

Determine infiltration rate in a little as fifteen minutes*

Now, for the first time, a field instrument to measure the  rate of water infiltration on all types of areas. This instrument determines the downward  flow of water through the soil.  The rings are centered by the welded  handle on the top of the unit; this insures the rings stay in place while  driving them into the soil.

The Turf-Tec Heavy Duty Infiltration Rings are a useful and  necessary instrument. It is now possible to monitor how slow or fast rain or  irrigation water moves into the soil. An excellent tool for engineers, earth science and  forestry students.

*15 minute test does not take into account getting soil to saturation.  For a 15 minute test a moisture sensor should be used to qualify soil moisture.



IN7-W Shown with optional IN6-W driving plate

IN7-W -  Turf-Tec  Heavy Duty Infiltration Rings 6 and 12 inch

 Click here to download instruction manual

New 2018!!! Now included in California's 2nd Nature’s Best Management Practices Rapid
Assessment Methodology BMP Ram Field Protocols V4.4 March 2018

     (See cover, Page # 5 and Page # 12) Link:

http://www.turf-tec.com/Infilt-Gov-Files/IN7-California-Manual0BMPRAM_FieldProtocols.pdf


Click here to download Turf-Tec International's free Excel spreadsheet for IN7-W, IN8-W and IN8P-W - 6 and 12 inch Infiltration Rings infiltration test
