IN15-W : Turf-Tec SDRI Infiltration Rings 5 foot and 12 foot Diameters Sealed Double Ring Infiltrometer (SDRI) for ASTM 5093
The new IN15-W Turf-Tec SDRI Infiltration Rings have diameters of 5 foot and 12 foot rings that match ASTM Standard D 5093-02 which replaced old ASTM D 5093-90. These rings are for performing a Sealed Double Ring Infiltration Test or SDRI (S.D.R.I.).
The Turf-Tec Infiltration Rings are double ring for standard testing of soils with a hydraulic conductivity between 1X10-7 m/s to 1X10-10 m/s or tight soils with low infiltration rates.
They are constructed of durable aluminum outer ring and a durable steel inner ring. The inner ring is a seam welded one piece tank to prevent leaks. The outer rings are constructed of rigid aluminum and bolted together with the aid of a rubber gasket to form a tight seal. The inner infiltration rings are also painted to prevent rust and insure a long life. The outer rings are made from aluminum and do not require painting.
Click image to enlarge Turf-Tec IN15-W SDRI Infiltration Rings
Using the Turf-Tec SDRI Infiltration Rings for ASTM Standard D 5093-02 test method is useful for field measurement of the infiltration rate of very slow infiltrating soils. This test method is useful for measuring liquid flow through soil moisture barriers such as compacted clay liner or covers used at waste disposal facilities, for canal and reservoir liners, for seepage blankets, lake and irrigation pond areas and for amended soil liners such as those used for retention ponds or storage tanks. It is also useful in determining if a spill occurs, how the soil around the area will react. This test method is government approved and matches ASTM Standards.
The purpose of the double ring is to insure the downward flow of movement of water to insure proper measurements. These infiltration rings are ideal for taking ASTM infiltration tests on all areas and match the ASTM 5093 test. The IN15-W Infiltration set comes with both inner and outer rings, rubber gasket for 12 X 12 foot Infiltration rings, bolts for 12 X 12 foot Infiltration rings, 3000 ml IV bag, rubber splash guard and all necessary hoses and fitting to conduct the complete ASTM Standard D 5093-02 test for the Sealed Double Ring Infiltration Test or SDRI.
Click image to enlarge Turf-Tec IN15-W SDRI Infiltration Rings

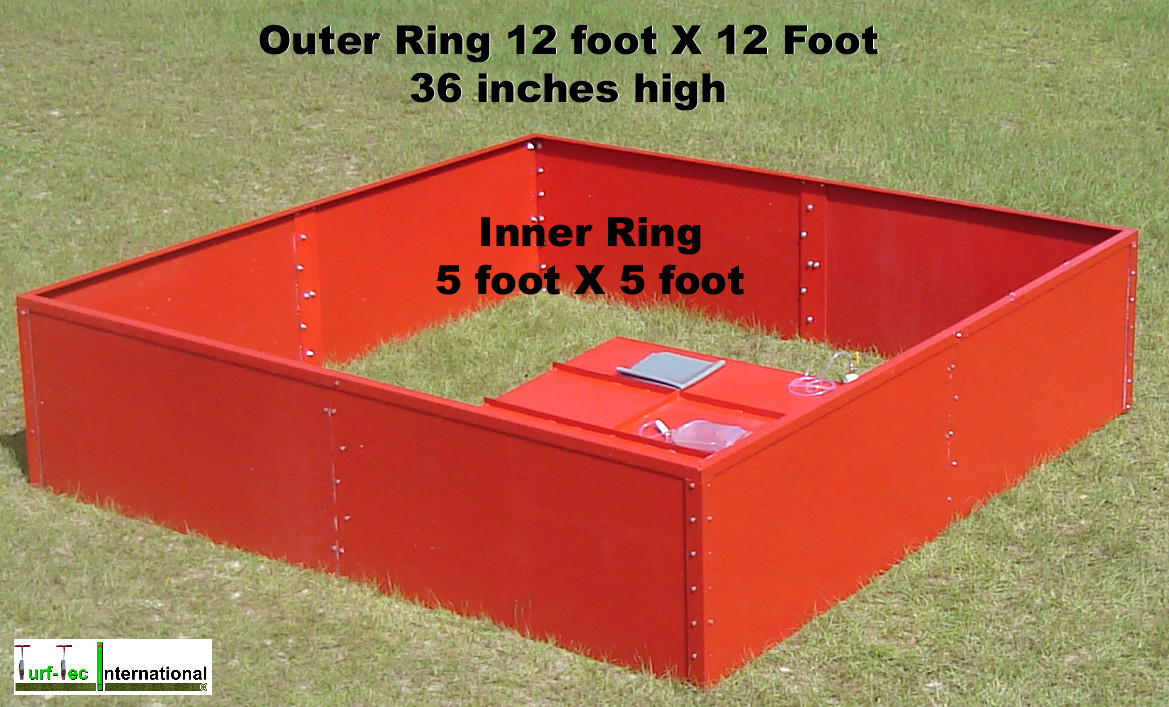

The inner ring of the IN15-W Turf-Tec SDRI Infiltration Rings has a diameters of 5 foot x 5 foot and a overall height of 11 inches tall at its highest point.
|Digging trench for center five foot Turf-Tec SDRI Infiltration ring installation.

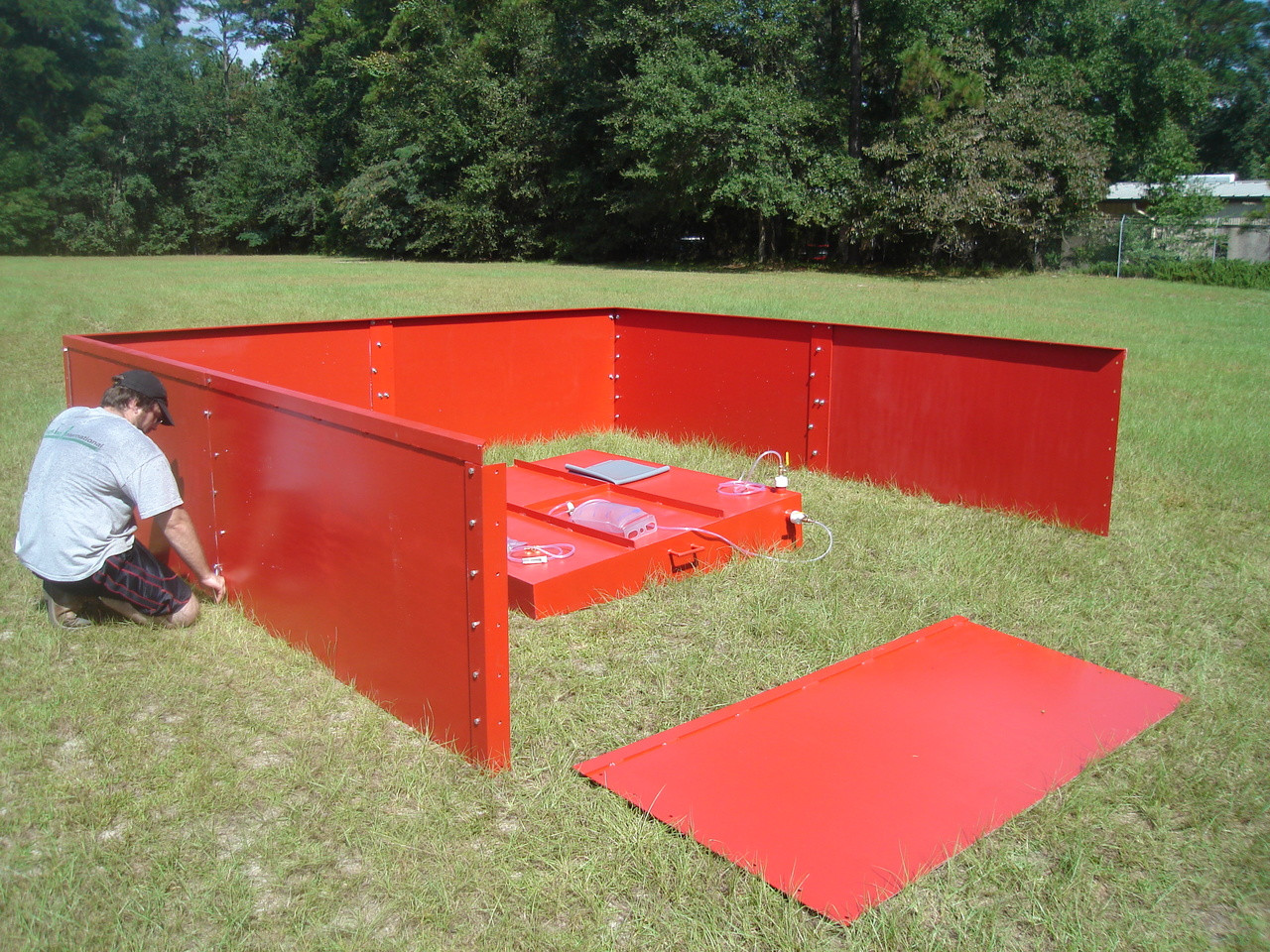

||Installing the outer 12 foot SDRI Turf-Tec Infiltration ring.
||Completed installation of Turf-Tec SDRI Infiltration rings and filling rings to begin testing.
Check Infiltration on:
- Soil moisture barriers
- Compacted clay liners
- Soil Barrier testing
- Covers used at waste disposal facilities
- Waste Management - Final Covers
- In-Situ Testing
- Canal Liners
- Reservoir liners
- Seepage blankets
- Amended soil liners
- Retention ponds
- Storage tanks
- Test any area where soil is supposed to be almost impervious to water entry
- Inner Steel Tank dimensions 60 X 60 X 11 inches (Weight is approximately 138 lbs)
- Inner Tank constructed from 14 Gauge steel (.07 inches thick)
- Inner Tank has 2 ports, one for vent cap and one brass ball valve for flexible bag inlet
- Inner tank has 4 handles to aid in insertion and transportation
- Outer Tank constructed from .125 inches thick Aluminum (3mm thick) (Weight of each panel is approximately 45 lbs each)
- Outer tank dimensions when assembled is 12 feet X 36 inches tall
- Outer tank walls bolt together with 3/8 inch bolts and rubber gaskets (Supplied and pre-assembled)
- Set comes with 2- 3000 ML flexible supply bag, clamps and brass shut off valve, hose to connect flexible bag to inner ring and rubber splash guard
- Inner ring is painted to insure long life and rust resistance
- Outer ring is constructed from 100% Aluminum
- All Specification meet or exceed ASTM Standard D 5093-02
- Total Shipping weight (Palletized) 600 lbs (270 kg)
