IN16-W - Turf-Tec Heavy Duty 12 Inch Diameter Infiltration Ring

$800.00
SKU:
IN16-W
Adding to cart… category.add_cart_announcement

Product Description

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026This product is made by Turf-Tec International in the USA

IN16-W - Turf-Tec Heavy Duty 12 Inch Diameter Infiltration Ring

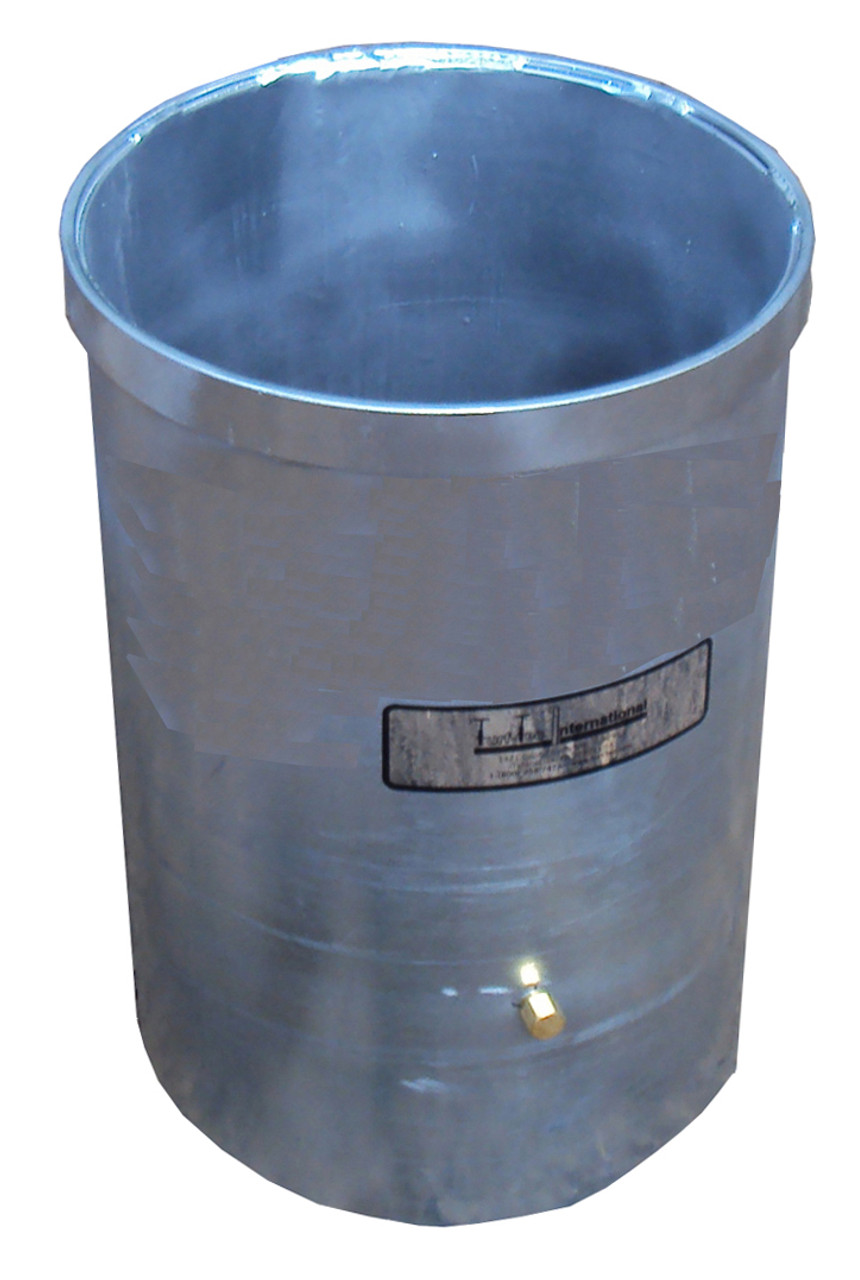

IN16-W - Turf-Tec Heavy Duty 12 Inch Diameter Infiltration Ring. The new Turf-Tec Heavy Duty 12 Inch Diameter is a single ring Infiltration Ring has a diameters of 12 Inches (30 CM) and an overall height of 20 inches (50 CM).

Turf-Tec Heavy Duty 12 Inch Diameter Infiltration Ring shown here with optional driving plate (IN17-W) and optional 10,000 ml Mariotte Tube (IN12A-W)

Turf-Tec Heavy Duty 12 inch diameter Infiltration Ring shown here with optional driving plate (IN17-W) and optional 10,000 ml Mariotte Tube  (IN12A-W)



Turf-Tec Heavy Duty 12 Inch Diameter Infiltration Ring shown here with optional 10,000 ml Mariotte Tube with site glass are also available and highly recommended to maintain constant head pressure (IN12A) Purchased separately



A 10,000 ml Mariotte Tube  with site glass are  also available and highly recommended to maintain constant head pressure (IN12A)  Purchased separately



See IN12-W – Turf-Tec Mariotte Tubes



The new Turf-Tec Heavy Duty 12 inch diameter is a single ring Infiltration Ring and has a diameter of 12 inches (30 cm) and an overall height of 20 inches (50 cm).

This single ring Infiltrometer is constructed of very heavy duty and durable galvanized steel and topped with a 1/4 inch thick, steel reinforced top edge for driving into the soil.

The Turf-Tec Heavy Duty 12 inch diameter Infiltration Ring is ideal for infiltration testing areas that do not need a double ring infiltration test. You can set this ring on the area to be tested, place the optional 1/2 inch thick steel driving plate (IN17-W) on top and drive the ring into the soil.  The ring can be filled with water and then the infiltration rate can be determined by timing the amount of time it takes the water to go into the soil.

Turf-Tec Heavy Duty 12 inch diameter Infiltration Ring comes with a brass port located 7 inches above the base for the attachment of an optional IN12A-W Mariotte Tube.  This will allow you to maintain a constant head of water in  the ring during testing without the need for personnel to continually fill ring while testing is being conducted. The Mariotte Tube is also helpful for periods of prolonged or overnight testing.

urf-Tec Heavy Duty 12 Inch Diameter Infiltration Ring comes complete with inside welded steel brace for ease of extraction from soil. This single ring Infiltrometer is constructed of very heavy duty and durable galvanized steel and topped with a 1/4" thick steel reinforced top edge for driving into the soil.

Turf-Tec Heavy Duty 12 inch diameter Infiltration Ring comes complete with inside welded steel brace for ease of extraction from soil.

_______________________________________________________________

This method of testing is useful for field measurement of the infiltration rates where a double ring Infiltrometer is not necessary to fulfill local or state infiltration test standards.

The simple design, coupled with strong construction and a port already installed, makes the addition of the optional Mariotte Tube simple and seamless.





Turf-Tec Infiltration Rings 12 and 24 inch come with Excel Spreadsheet for easy data recording.

Turf-Tec Heavy Duty 12 inch diameter Infiltration Rings can be used with free Excel Spreadsheet for easy data recording.  Link!







Also see the IN11-W driving plates for the 12 and 24 Inch Infiltration rings

Also see the New Turf-Tec Mariotte Tubes (IN12-W) to allow you to maintain a constant head pressure.

..also see the New Turf-Tec Mariotte Tubes (IN12-W) to allow you to maintain  a constant head pressure

... also see our new Large Volume Turf-Tec Mariotte Tubes (IN13-W) to allow a constant head pressure to be maintained over a longer test period.

... also see our new Large Volume  Turf-Tec Mariotte Tubes (IN13-W) to allow a constant head pressure to be  maintained over a longer test period



Specifications:



  • Infiltration Ring is 12 inches diameter (30 cm)

  • Overall Height of 20 inches (50 cm)

  • Weight is 35 lbs (15.6 kg)

  • Rust resistant galvanized steel is 11 gauge (1/8 inch thick)

  • Inside welded steel brace for ease of removal from test area

  • 1/4 inch steel reinforcing band on to top edge

  • Ring come with brass port located 7 inches above the base for the attachment of optional IN12-W Mariotte Tubes

  • Entire ring comes fully assembled and ready to use right out of the box



IN16-W - Turf-Tec Heavy Duty 12 inch diameter Infiltration Ring
