Product Description
IN2 - Infiltrometer Float Rod Full Assembly
P-IN2-Float Rod Assembly
Infiltrometer Float Replacement
Instructions
To replace Infiltrometer Float follow the below instructions:
Remove old float and float rod by removing protective cover cap on top of rod.
- Turn Infiltrometer up (Timer side up) and unscrew pointer screw with hex head screwdriver.
- Remove PVC float rod through bottom of Infiltrometer (through the center infiltration ring).

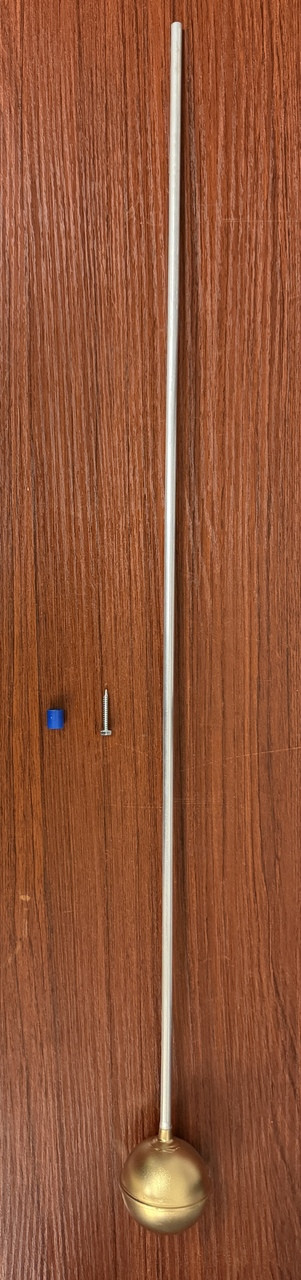

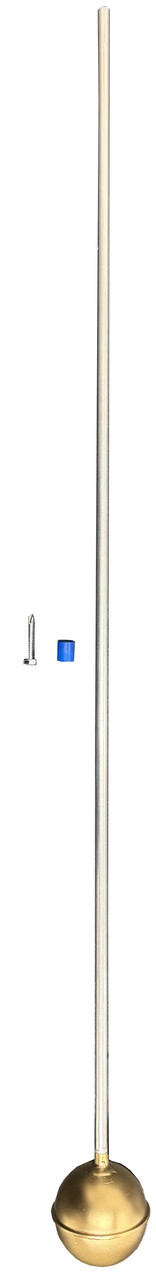

- Place new aluminum float and float rod (provided) through bottom of Infiltrometer (through the center infiltration ring). Be sure float rod goes through both plastic guides in the face plate.

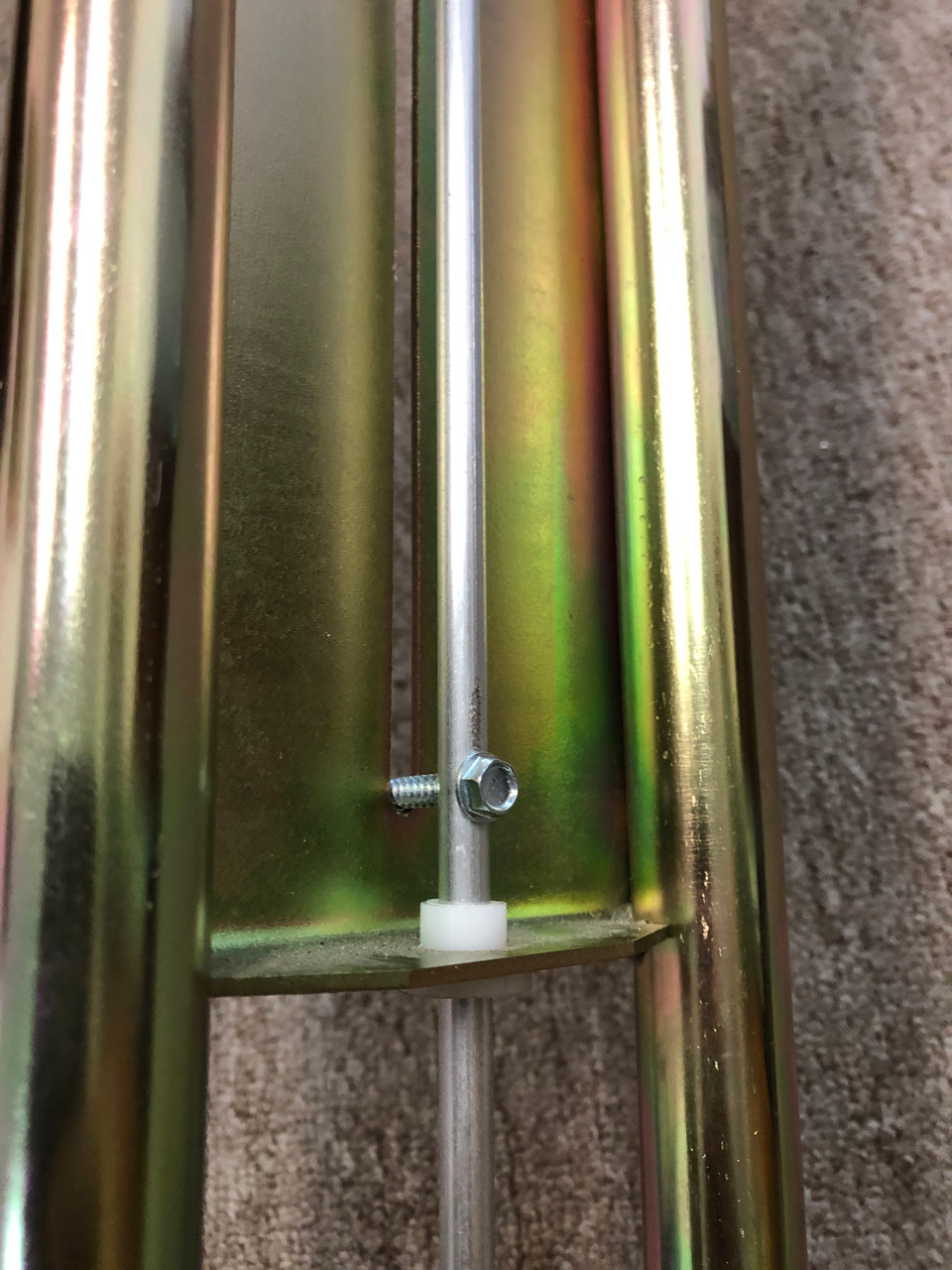

- Place new screw (provided) through back of tube, so screw had is facing away from face plate.
- Gently screw self-tapping screw through float rod until front of screw is sticking through the inch indicator slot in the face plate. Do not over tighten or breakage can occur.
- Place new protective cap (provided) on top of float rod with "Goop" brand adhesive. (Not Provided)
- Place additional "Goop" brand adhesive. (Not Provided) around screw to strengthen area.
- Let glue fully cure (About 24 hours before usage.
