Product Description


Turf-Tec Brass Sieve Set - Sand
These solid brass sieves are a full eight inches in diameter and are the same type of sieves used by laboratories and Universities for particle size analysis.
These sieves are excellent for determining the particle size of sand. It is ideal for checking topdressing sands, measuring the consistency of sand trap sands and a must for use during construction. The Brass Sieve Set comes with a full USGA breakdown with six to eight-inch diameter sieves that form a stack with the below diameter mesh screens. The sieves places in sequential order of largest to smallest will allow a complete particle size breakdown.

DIMENSIONS & SPECIFICATIONS:
Brass Frames. Brass Cloth and Bronze Phosphorous for smaller meshes. Sieves are 8 Inches in diameter Height of 2 Inches. They fit into each other to form a stack. The sieve cover and pan are included. Gravel sizes are also available.
|
USGA Class - Sand |
US Standard Mesh Number |
Millimeter Size |
Inches |
|
8 Inch Diameter Cover |
n/a |
n/a |
n/a |
|
Very Course |
10 |
2.00 mm |
.0787 |
|
Coarse |
18 |
1.00 mm |
.0394 |
|
Medium |
35 |
.50 mm |
.0197 |
|
Fine |
60 |
.25 mm |
.0098 |
|
Very Fine |
100 |
.15 mm |
.0059 |
|
Silt |
270 |
.05 mm |
.0021 |
|
8 Inch Diameter Pan |
n/a |
n/a |
n/a |
These Millimeter sizes and classification are by the United States Department of Agriculture System and United States Golf Association Green Section.
Click Here for Instructions on This Product

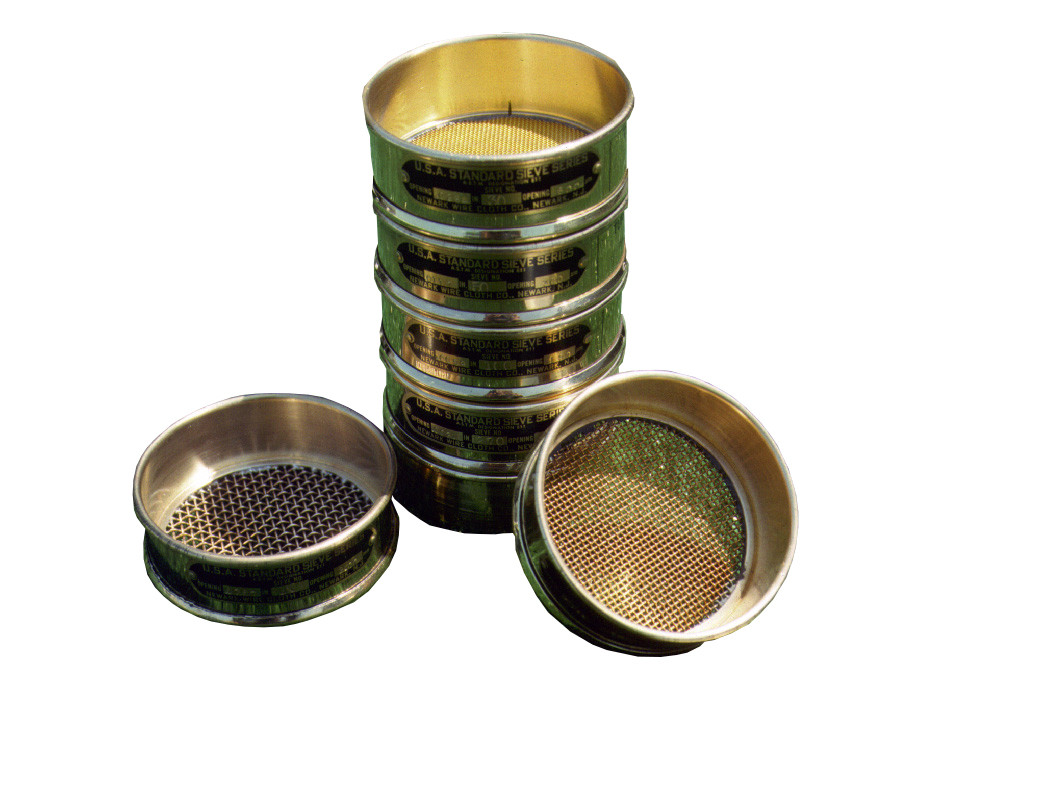

BS1-S - Brass Sand Sieve Set - 8" Diameter
Free Excel Spreadsheet for recording sieve samples from Turfgrass areas
