Product Description
FieldScout Wireless pH, EC and ORP Meter with Pinpoint Tip ISFET Probe, Bluetooth and Charger
PH-EC-ORP-IFSET
![]() |
The FieldScout Wireless pH, EC and ORP Meter has a Pinpoint Tip ISFET Probe, Bluetooth Connection and Charger and measures pH, EC and ORP directly in the soil. It provides immediate readings and consistent turfgrass quality. Easy and accurate to use with Bluetooth Low Energy wireless connection to your mobile device.Sample directly into turfgrass areas, or into liquid solutions. Download the FieldScout pH app to connect your probe and follow the instructions to calibrate and begin taking measurements. Connect up to 6 probes for simultaneous wireless measurements. Receive real time notifications whenever the value of the pH, EC or ORP is out of range. Unit includes meter, pilot hole maker, brush to clean the probe, wireless base and charging cord, pH4, pH7 and EC calibration solutions and a hard carrying case.The FieldScout Wireless pH, EC and ORP Probe can be inserted directly into the soil to get an instant pH reading wirelessly that appears on your cell phone or tablet in the pH Meter app. First, a pilot hole is made with the pilot hole maker (included). Next, spray distilled water with a spray bottle (not included) into the hole then insert the probe. The pilot hole can be made at different depths in the soil in order to measure pH, EC and ORP at different root depths.The unit uses an ISFET pH sensor (Ion-Sensitive Field-Effect Transistor). This is a solid-state device used to measure the acidity or alkalinity and is a modern, more durable alternative to traditional glass electrode pH sensors. |
FEATURESSample pH, EC and ORP directly in the soil after making a hole with the pilot hole maker |
|---|
|
|
|
|
The FieldScout Wireless pH, EC and ORP Meter with Pinpoint Tip ISFET Probe can be inserted directly into the soil to get an instant pH reading wirelessly to your cell phone or tablet and the pH Meter app. The probe can be inserted into different depths in the soil in order to measure pH, EC and ORP at different root depths. |

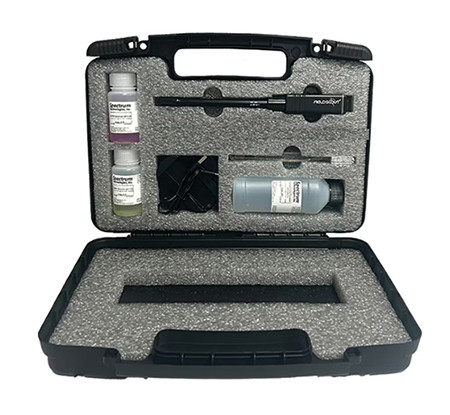

The FieldScout Wireless pH, EC and ORP Meter with Pinpoint Tip ISFET Probe includes the meter, brush to clean the probe, wireless base and charging cord, pH4 and pH7 and EC Calibration solutions for calibration and a hard carrying case. |
|
|
|
|

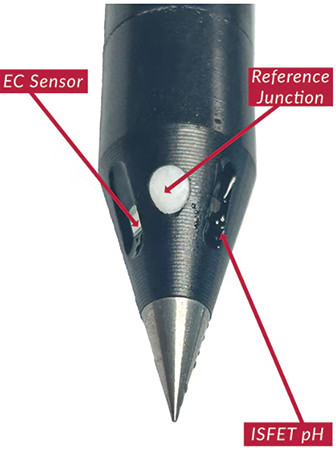

The FieldScout Wireless pH, EC and ORP Meter with Pinpoint Tip ISFET Probe contains a reference junction and the IFSET Sensor (Ion-Sensitive Field-Effect Transistor for pH measurement) and EC Sensor. |
The FieldScout Wireless pH, EC and ORP Meter with Pinpoint Tip ISFET Probe's free app shows pH, EC, ORP, soil temperature and last calibration date as well as the past readings. |
Specifications
|
Meter Specifications |
|
| Connection | BLE (Bluetooth Low Energy) wireless connection to mobile device |
| ATC (Auto Temperature Correction) | Yes |
| Status | RGB LED for status update and recognition to cloud-based application |
| Dimensions | 8.8" x 1.0" x 0.8" inch (224mm x 24.2mm x 20mm) |
| Probe Material | ABS / PEEK/Stainless Steel |
| Probe Length | 5.0" (128mm) |
| Data Storage | Transmitter stores data when mobile device is disconnected |
| Operating/Storage Temperature | 32 F to 176 F (0 C to 80) and 30% to 80% RH |
| Battery | Wireless Chargeable Battery |
| Battery Operation Time | 2-3 Weeks |
| Battery Charge Time | 2 hours |
|
pH Specifications |
|
| pH Measurement Range |
0.00 to 14.00 |
| Sensor | Glass-Free Ion Sensitive Field Effect Transistor (ISFET) Semiconductor |
| Accuracy |
+/- 0.02 pH point |
| Resolution |
0.02 |
| Drift |
< 0.14 pH / 24 hrs |
| Calibration | 1, 2, 3 and 5 point calibration BLE (Bluetooth Low Energy) wireless |
|
Temperature Specifications |
|
| Sensor | NTC |
| Range | 32 F - 176 F (0 C - 80 C) |
| Accuracy | 1 % |
| Resolution | 0.1 F (0.1 C) |
|
EC - Electrical Conductivity |
|
| Sensor | 4-Electrode EC Sensor |
| Range | 50 - 111,800 milliSiemens/centimeter |
| Accuracy Within 1% | 50 - 12,880 milliSiemens/centimeter |
| Accuracy Within 10% | 50 - 111,800 milliSiemens/centimeter |
| Resolution (50 - 12,880 mS/cm) | 0.5 nS/cm |
| Resolution (50 - 111,800 mS/cm) | 50 nS/cm |
| Calibration | At Factory / 1-Point Calibration |
|
ORP - Oxidation Reduction Potential |
|
| Range | 2,000 - + 2,000 mV |
| Accuracy | +/- 0.2mV |
| Resolution | 0.1mV |
| Calibration | At Factory |
