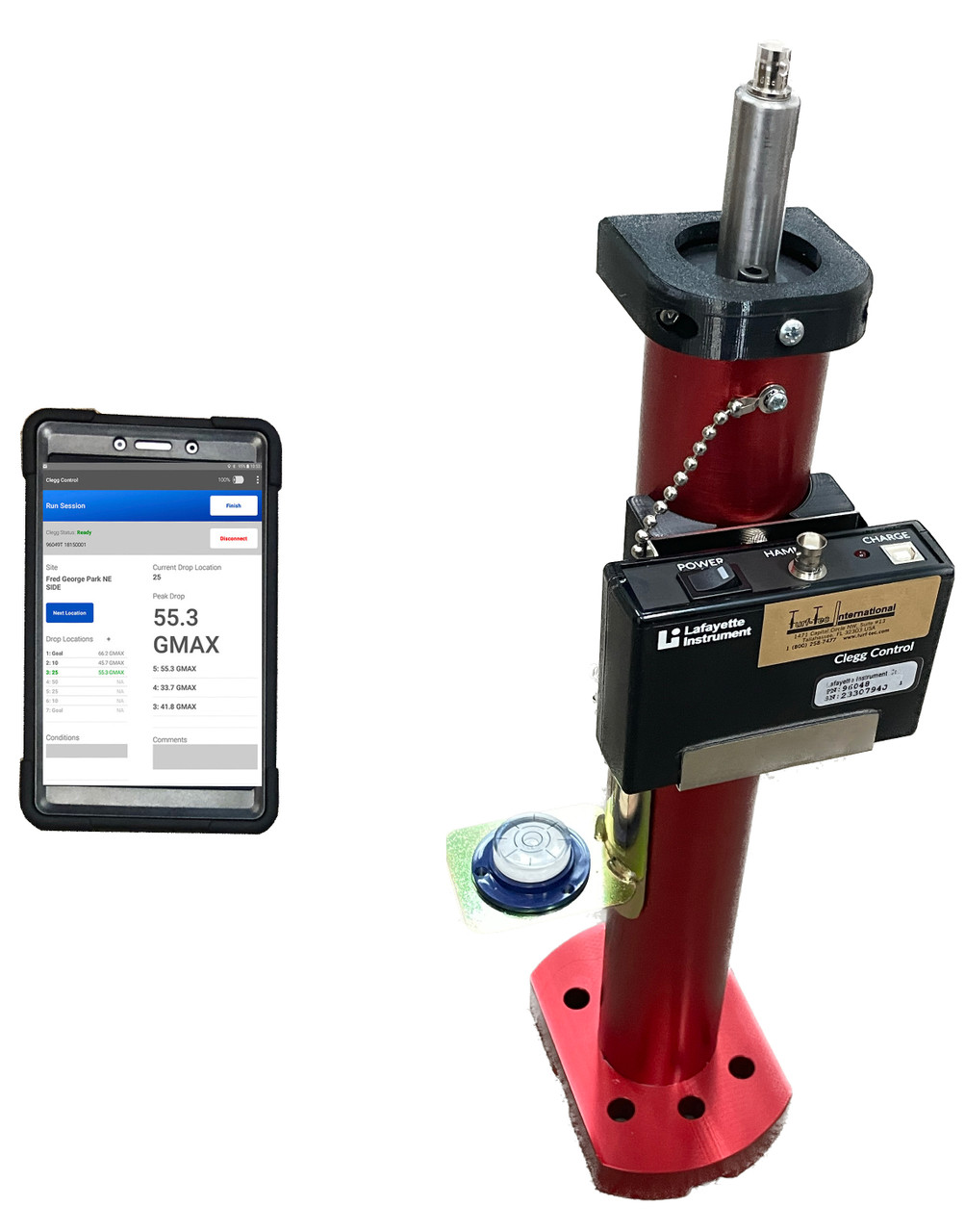

PNCLEGG-S-0.5 - Clegg Impact Tester 0.5 kg (New Bluetooth Model) with Hard Case For Golf Courses

$4,650.00
SKU:
PNCLEGG-S-0.5

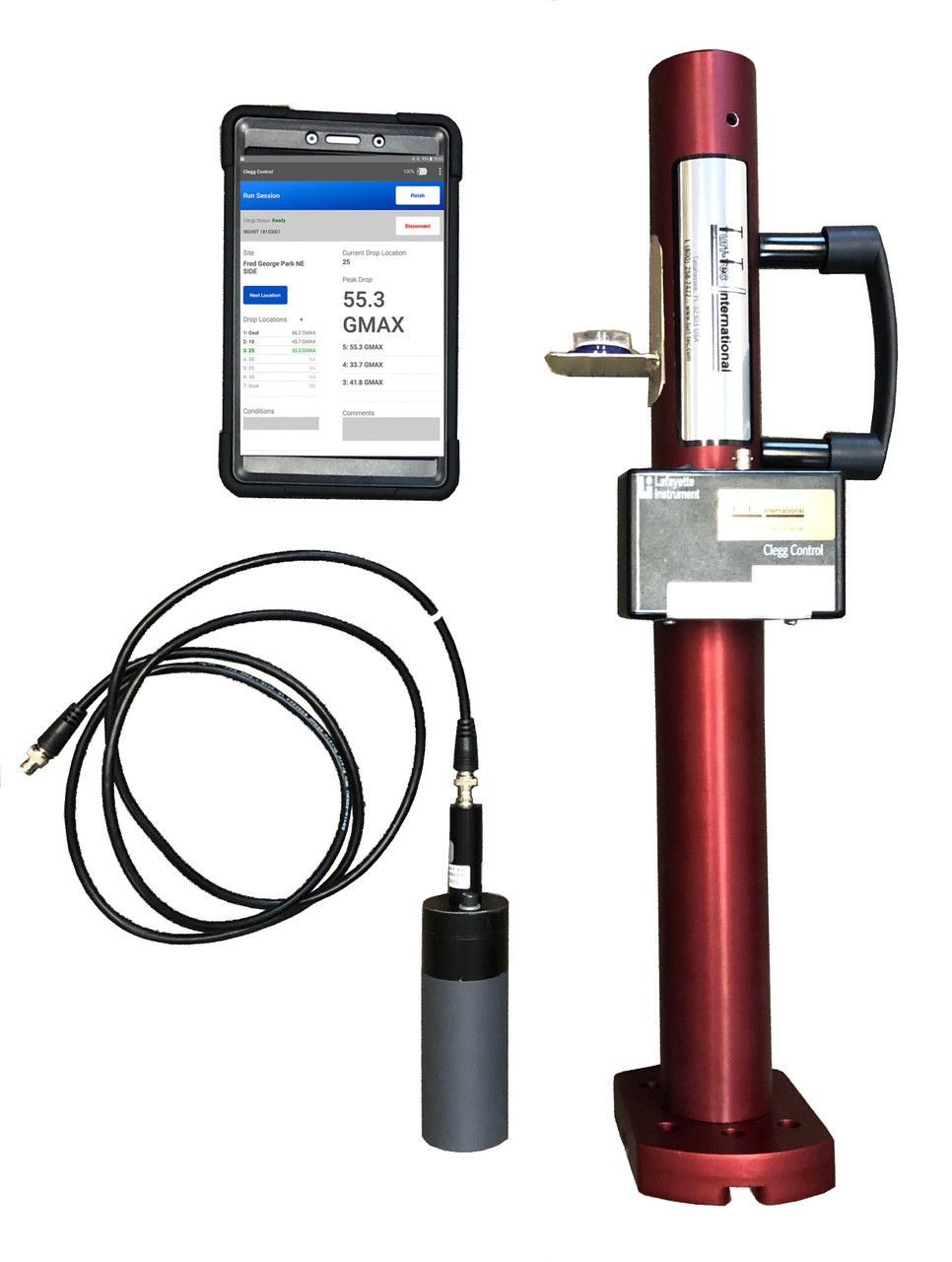

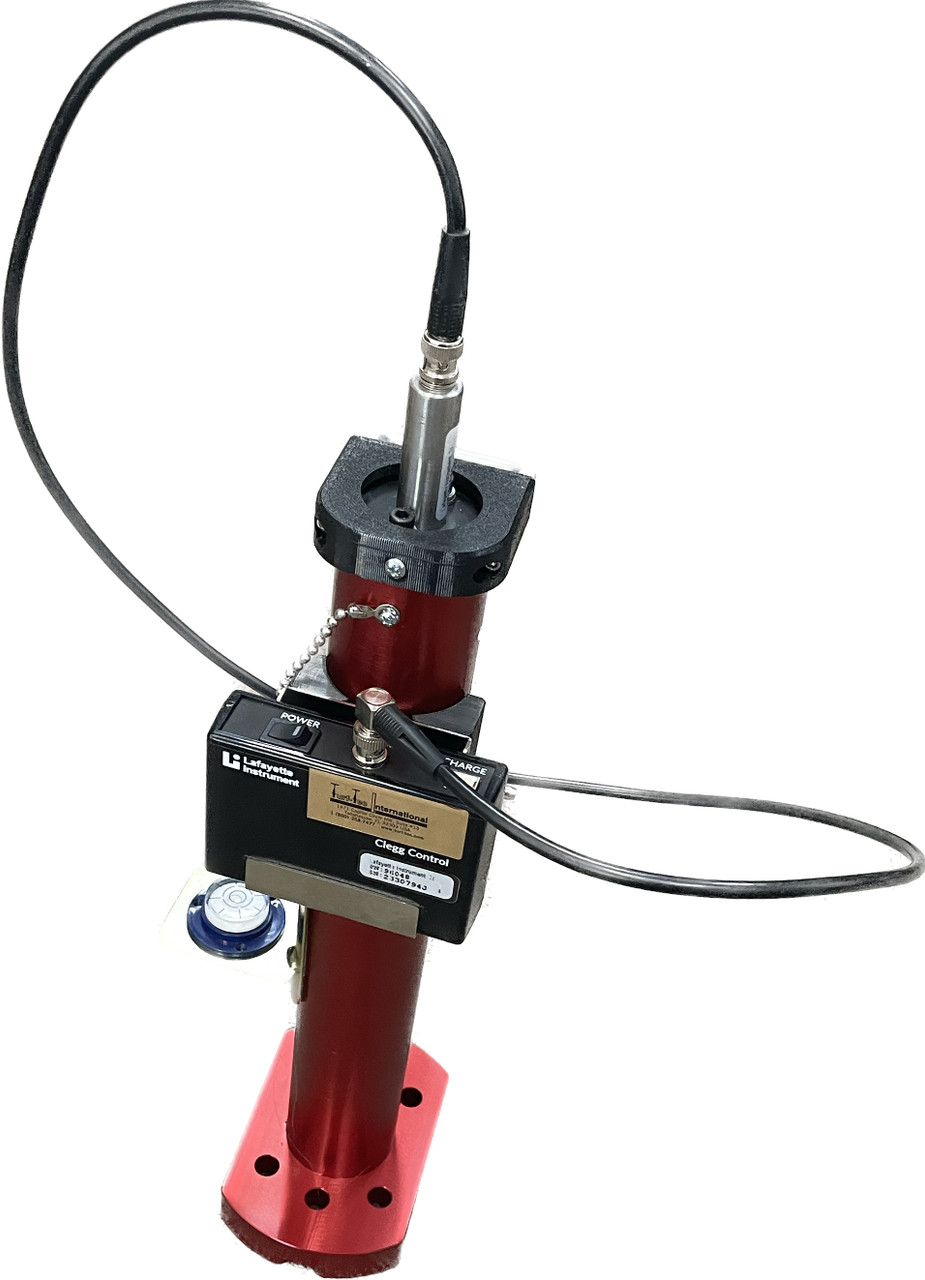

PNCLEGG-S-0.5 - New Wireless Clegg Impact Tester with bluetooth and GPS - 0.5 kg Model - For golf greens

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026

 New 0.5 kg Clegg Impact Tester / Clegg Decelerometer with Hard Case

for Golf Greens

 Click here for model for Sports Turf and Athletic Fields

New Clegg Impact Tester / Clegg Decelerometer with Hard Case. New for 2020 - The Clegg Impact tester has a wireless bluetooth sending unit and GPS enabled tablet, data logging and mapping. The NEW PNCLEGG-S-2.25-A- Clegg Impact Tester 2.25 kg model reads out from 0 to 150 GravitiesNew Clegg Impact Tester / Clegg Decelerometer with Hard Case. The Clegg Impact Tester is a professional instrument used to determine hardness on all types of areas - Readings in Gravities (Gmax), CIT's and F355 Equivalent. The 0.5 kg unit is a professional instrument to determine hardness specifically on Golf Greens, Golf Green approaches and bunker sand. These reading will ensure consistant playablity and uniformity from green to green. The Clegg Impact Tester is a professional instrument used to determine hardness on all types of areas - Readings in Gravities (Gmax), CIT's and F355 Equivalent



New for 2020 - The Clegg Impact tester 0.5 kg unit has a wireless Bluetooth sending unit and GPS enabled tablet, data logging and mapping. The NEW PNCLEGG-S-2.25-A- Clegg Impact Tester 2.25 kg model reads out from 0 to 150 Gravities, 0 to 15 CIT's or 0 to 218 - F355 GMax equivalent readings and has a better accuracy range (+/- 1% or 1.5 G Accuracy) as compared to the 0-1000 Gravity unit (+/- 1% or 10 G Accuracy) for testing soft surfaces like golf greens. Also, the 0.5 kg size will not damage the putting surface.

The 0.5 kg Clegg Impact Tester unit is a professional instrument to determine hardness specifically on Golf Greens, Golf New Clegg Impact Tester / Clegg Decelerometer with Hard Case. The 0.5 kg Clegg Impact Tester unit is a professional instrument to determine hardness specifically on Golf Greens, Golf Green approaches and bunker sand. These reading will ensure consistant playablity and uniformity from green to green. GPS MapGreen approaches and bunker sand. These reading will ensure consistent playability and uniformity from green to green.



Instruction Manual and App comes with conversion formula to convert readings to F355 equivalent readings. Note the 150 g maximum reading on this unit is sufficient for maximum impact readings in the ASTM F355 range after using the conversion formula included in the Turf-Tec Instruction Manual. 200 g's on F355 Impact Tester = 135 g's on Clegg Impact Tester.Instruction Manual and App comes with conversion formula to convert readings to F355 equivalent readings.  Note the 150 g maximum reading on this unit is sufficient for maximum impact readings in the ASTM F355 range after using the conversion formula included in the Turf-Tec Instruction Manual. 200 g's on F355 Impact Tester = 135 g's on Clegg Impact Tester.



The principle behind the Clegg Impact Soil Tester, also called the Clegg Hammer and Clegg Decelerometer, is to obtain a measurement of the deceleration of a free falling mass (Hammer) from a set height onto a surface under test to determine its hardness. The impact of the Hammer produces an electrical pulse, which is converted and displayed on the GPS enabled tablet in units of gravities "G-max", tens of gravities "CIT", or F355 Equivalent units. Reference ASTM test methods ASTM 1936, ASTM F355, D5874 and F1702.



The standard test protocol for sports field testing is to drop the hammer one consecutive time on the test area result. The Clegg offers the convenience of rapidly scanning compaction variation over large areas.



See the Clegg Impact Tester in use on YouTubeAvailable in following models

  • 0.5 kg - Used for soft turf, sand areas and golf greens (0 to 1000 Gravities)
  • 2.25 kg - Used for surfaces consisting of natural or synthetic turf (football, baseball, soccer fields, playgrounds, pitches, horse tracks, and golf greens) (0 to 1000 Gravities) (+/- 1% or 10 G Accuracy)
  • 2.25 kg-A - New Used for surfaces consisting of natural or synthetic turf (football, baseball, soccer fields, playgrounds, pitches, horse tracks, and golf greens) (0 to 150 Gravities) New (+/- 1% or 1.5 G Accuracy)
  • 4.5 kg - Used for surfaces such as preconstructed soils, trench reinstatement, bell holes, and foundations
  • 10 kg - Used for flexible pavement, aggregate road beds, trench reinstatement, bell holes, and foundations
  • 20 kg - Used for surfaces such as flexible pavement, aggregate road beds, trench reinstatement, bell holes, and foundations

Simple and quick test procedure

  1. The 0.5 kg Clegg test procedure is very rapid and can easily be performedClegg Impact Tester / Clegg Decelerometer shown with Turf-Tec Level. The 0.5 kg Clegg test procedure is very rapid and can easily be performed by site personnel with minimal training. Each test can be completed in less than 30 seconds and the results are immediate. by site personnel with minimal training. Each test can be completed in less than 30 seconds and the results are immediate.
  2. Select a fairly level surface.
  3. Set the guide tube into position. Secure by placing a foot on the tube's base flange and steady with the lower leg and knee.
  4. The tablet app is placed in the test mode.
  5. The Hammer is raised to the drop height designated by the indicator mark.
  6. The level is centered.
  7. The Hammer is released allowing it to fall freely.

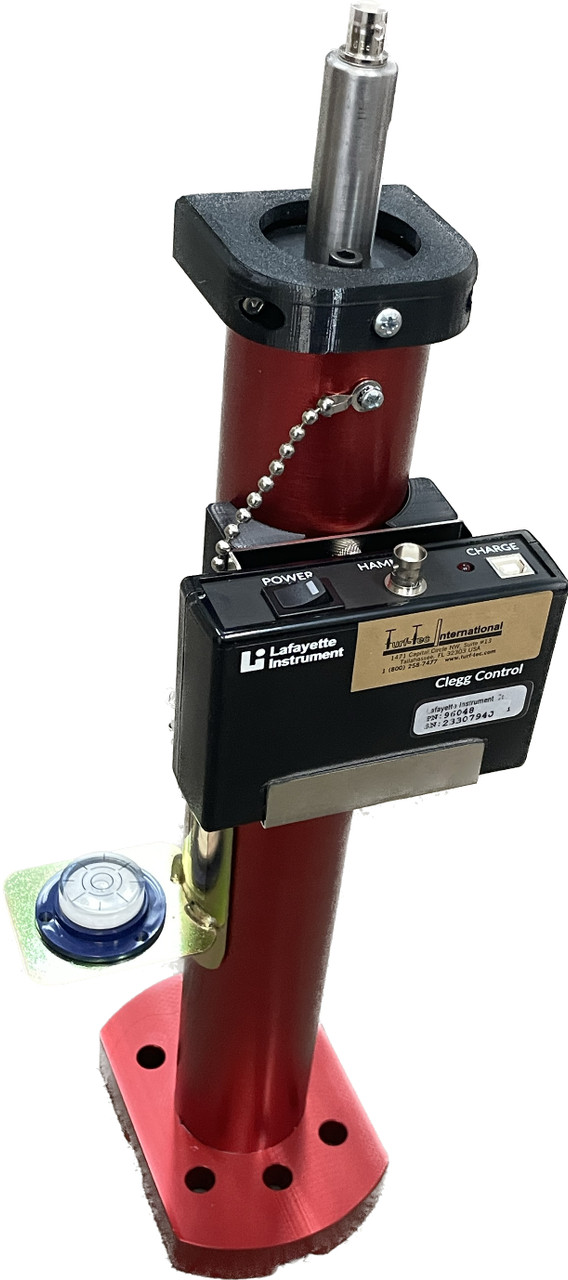

  8. Clegg Impact Tester / Clegg Decelerometer Control unitThe Gravities value (Gmax), CIT value or F355 equivalent reading is displayed and is instantly saved, along with the GPS coordinates, into the Clegg app.
  9. Move to the next test site and repeat the test procedure.

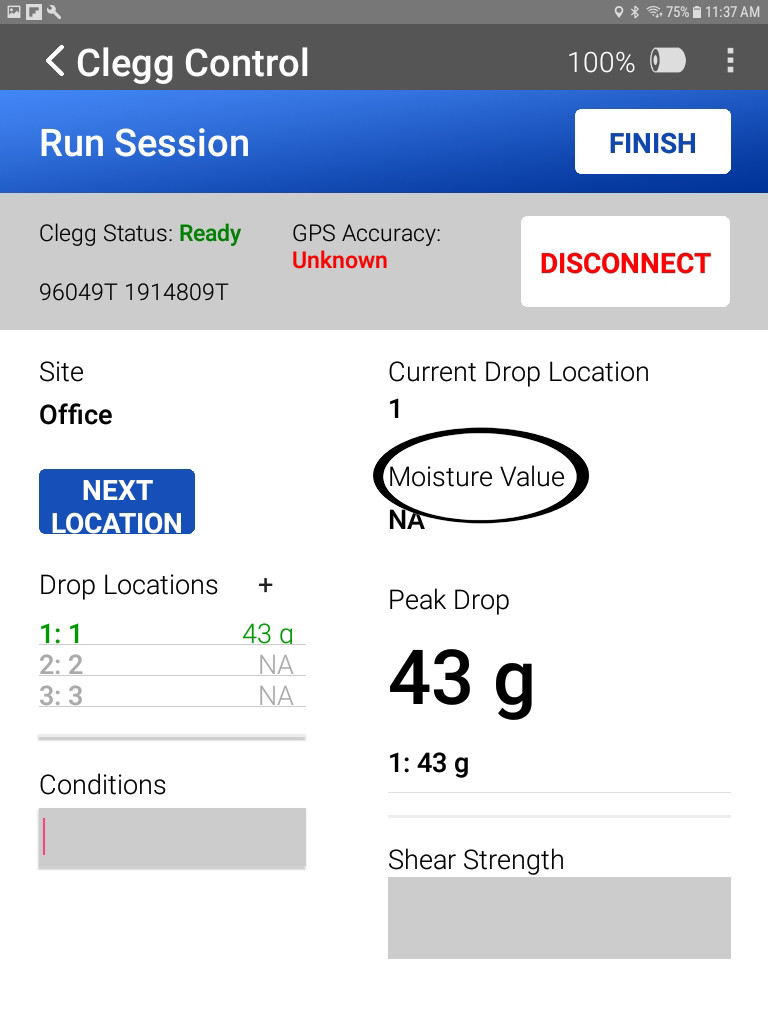

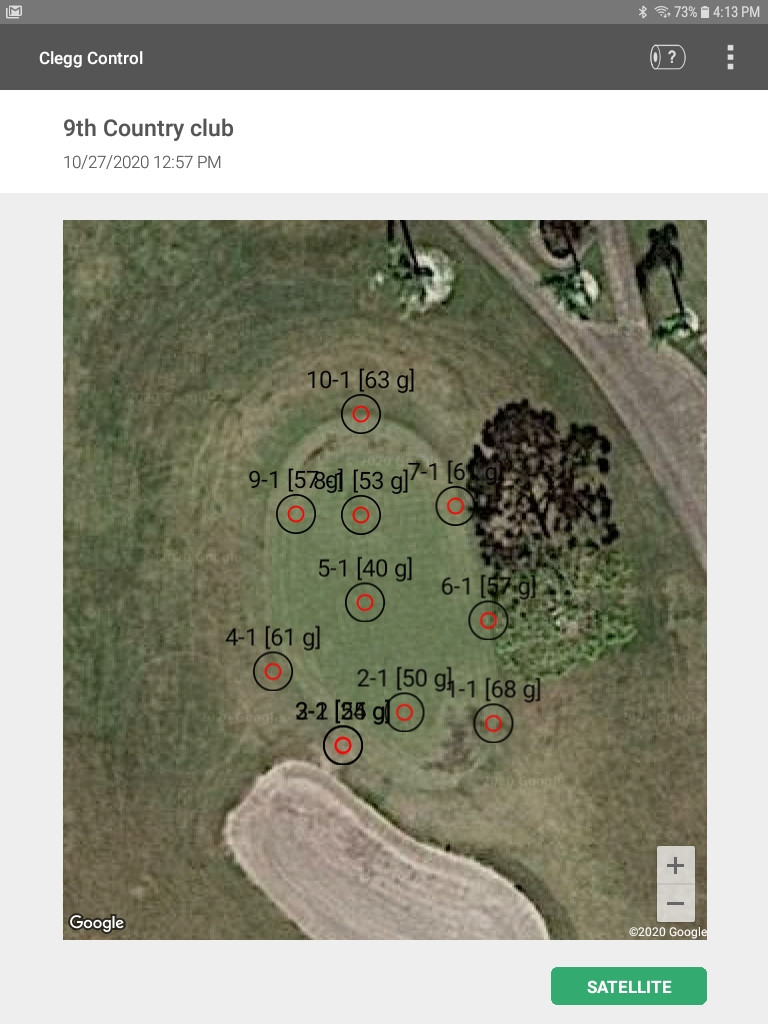

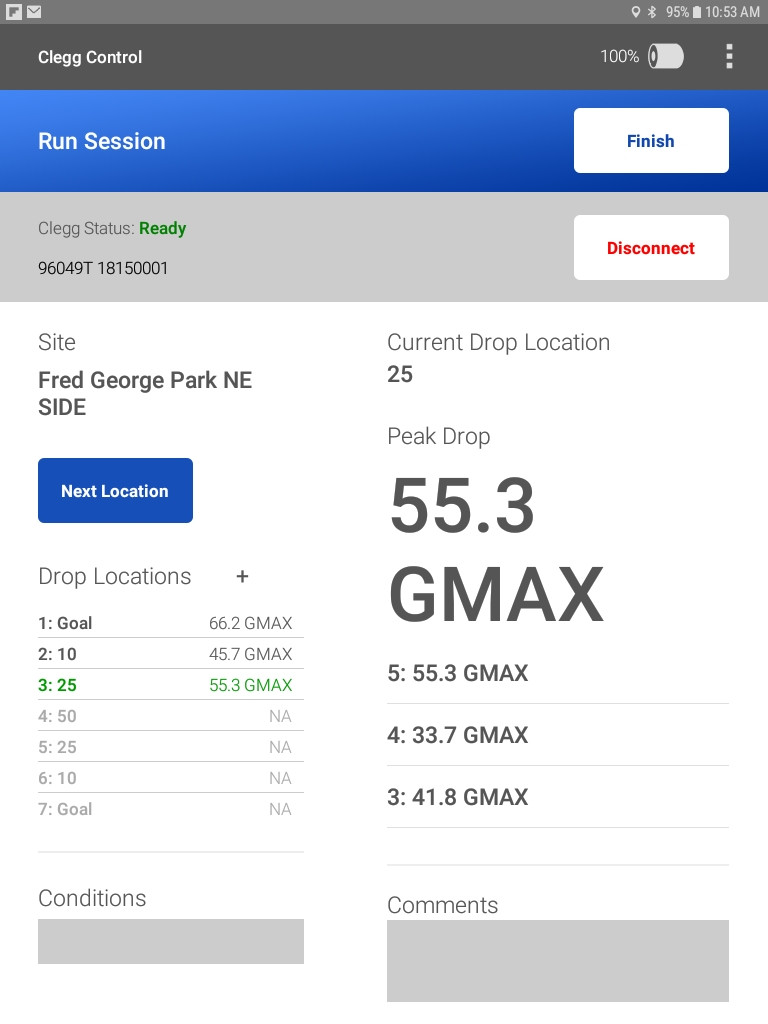

 Clegg 2019 Screen on Tablet with GPS

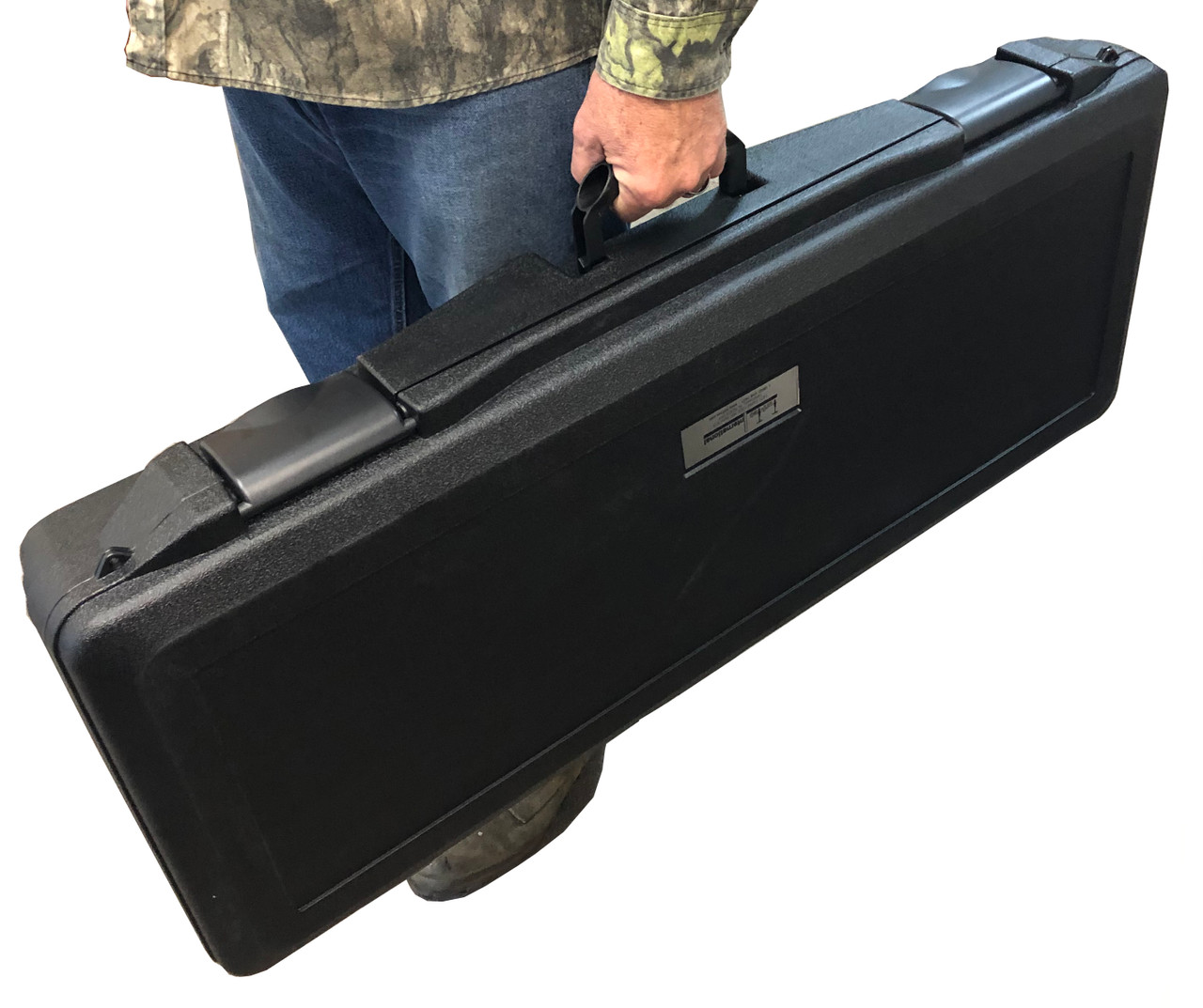

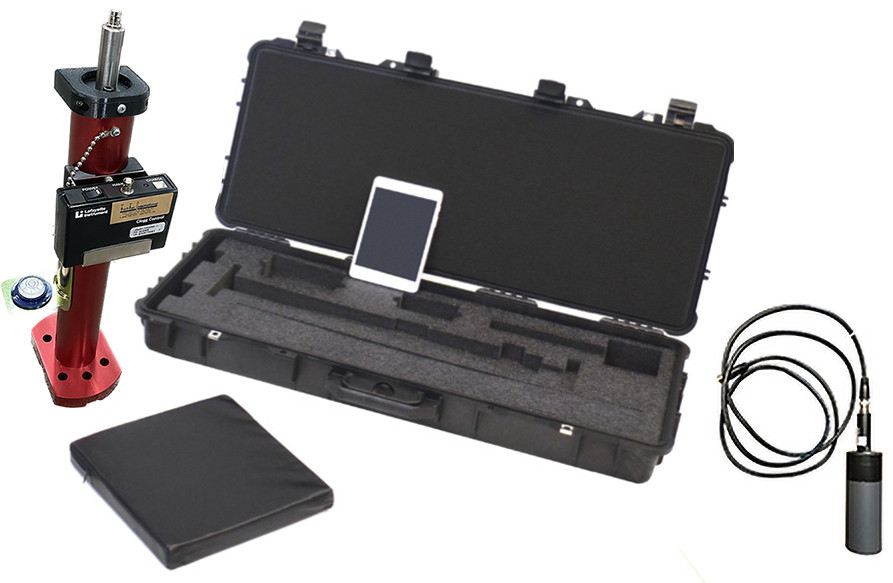

Clegg shown with Turf-Tec hard case

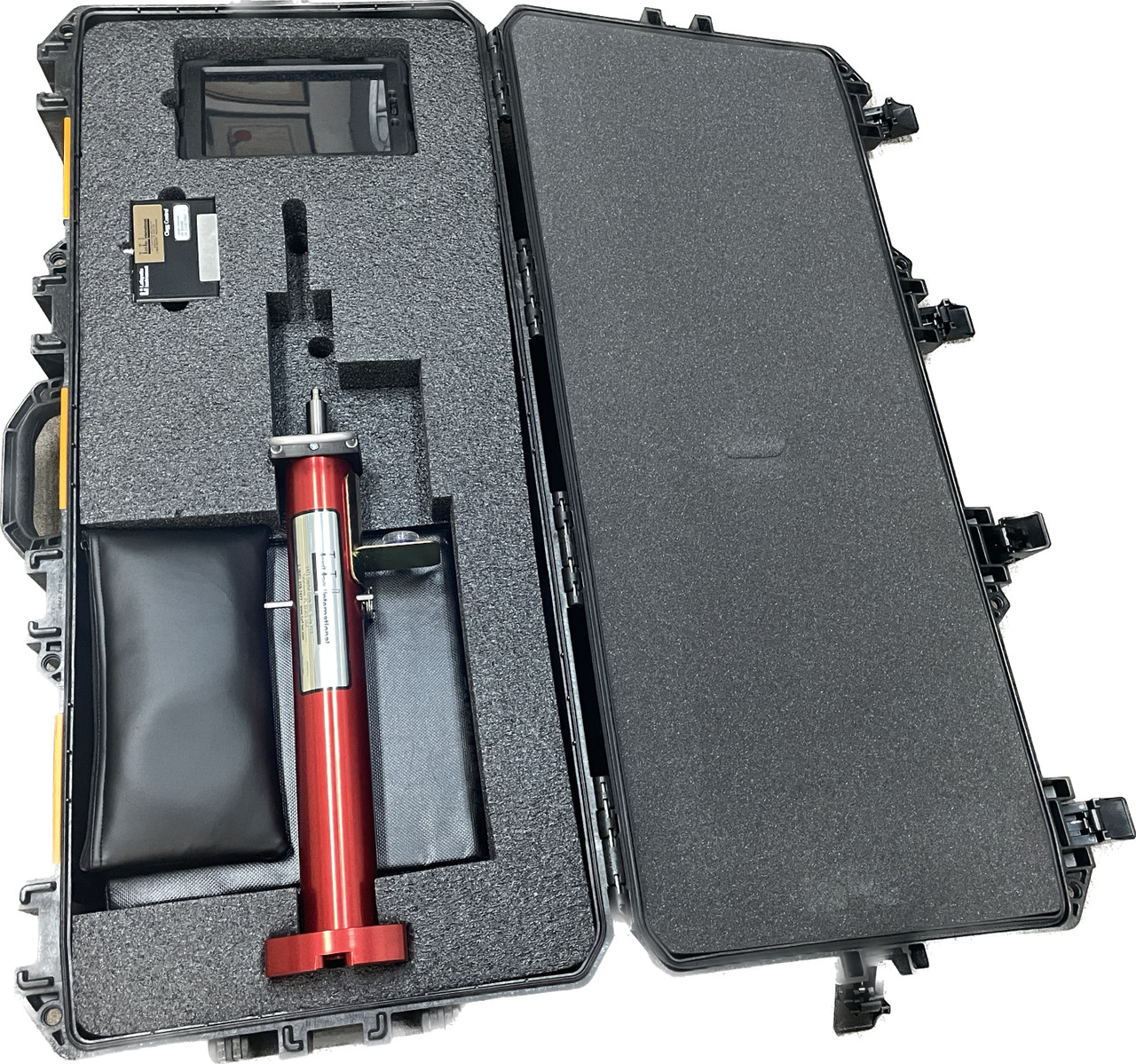

Clegg shown with Turf-Tec optional hard case

Clegg shown with Turf-Tec optional hard case



The 0.5 kg Clegg Impact Tester is a professional instrument used to determine hardness on all types of areas from Golf Greens, approaches and bumber sand for uniform playability.



Specifications:



  • Clegg 0.5kg Hammer with hardened strike face
  • Guide tube is aluminum and will provide years of reliable, accurate service
  • Tablet comes ready to use with Clegg Control Application pre-installed and calibrated to your Clegg Hammer (available in the iOS & Google Play Store)



Unit Comes with the following:

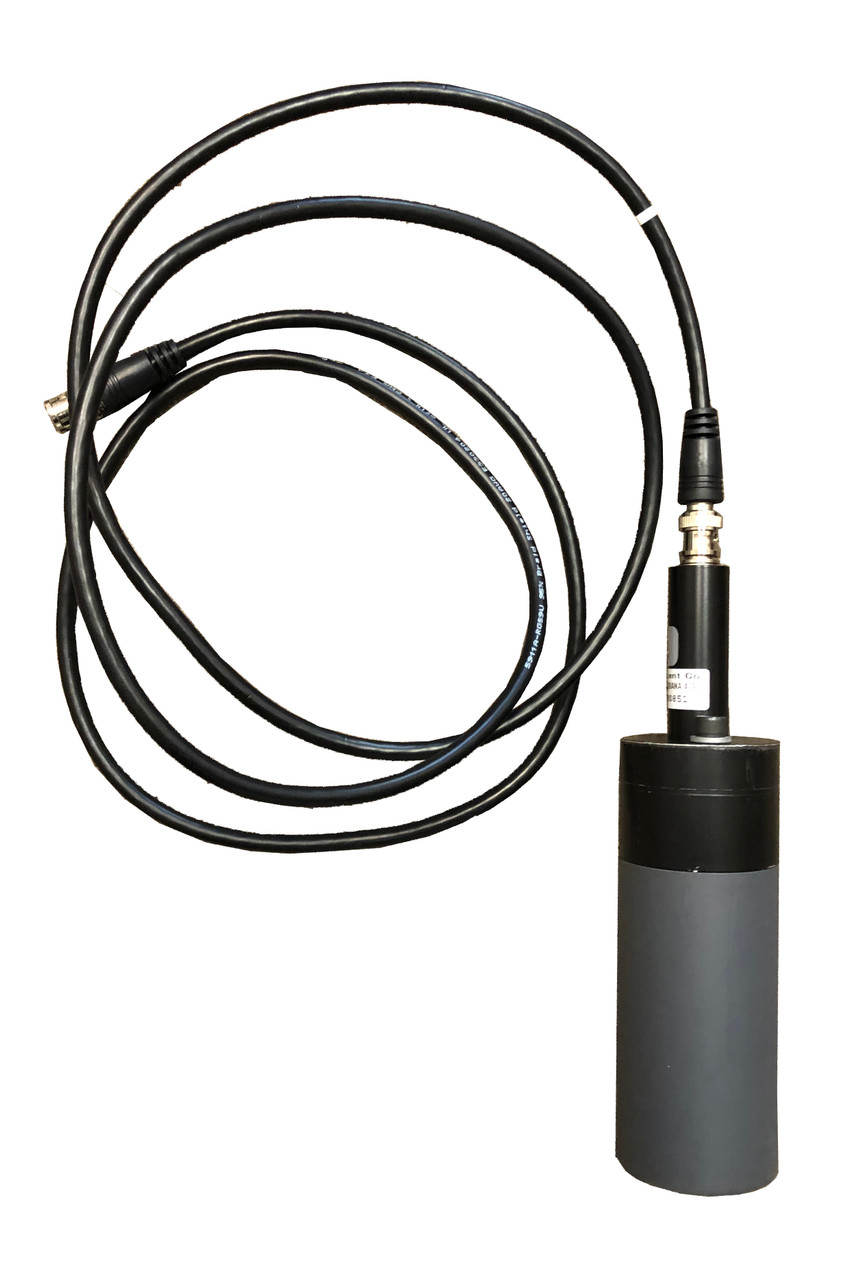

  • 0.5 kg Impact Hammer
  • Guide Tube with Foot
  • Bubble Level
  • Samsung Galaxy Tablet "A" with Clegg Control Application
  • GPS Integrated Tablet
  • Bluetooth Sending Unit
  • BNC Coax Cable
  • 12x12 inch Foam Calibration Pad (0-150g 2.25 kg-A unit)
  • Instruction Manual
  • Charger
  • Hard Case
  • Battery Life: 12 Hours
  • 3.7V/1.75Ah Lithium Ion Battery
  • Complete Charge in 3 hours
  • Results displayed/stored on Tablet-Based Application
  • App is also available in the Google Play Store for Android
  • App is also available in Apple Store for Iphone and Ipad

See the Clegg Impact Tester in use on YouTube





PNCLEGG-S-0.5 -  Clegg Impact Tester 0.5 kg model

Click here to order this product



Click here for instructions for 0.5 kg Clegg Android Version



Click here for video on Clegg Impact Tester
