Turf-Tec Grass Height Prism Gauge
(SAE Inches and Metric model)
Also available in Metric for FIFA Test Guideline (Model HGPRISM-FIFA-G)

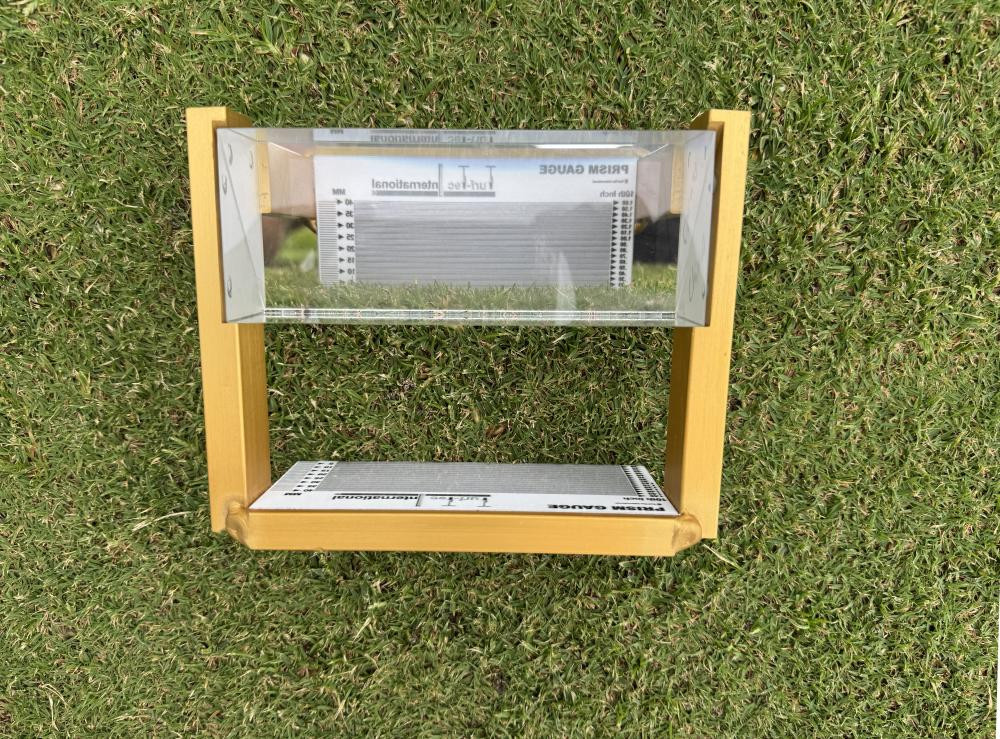

The Turf-Tec Grass Height Prism Gauge is made from solid glass and stainless steel. It is designed to tell you the actual height of cut that the mower is making on the turfgrass area as well as smoothness of cut. By placing the specially designed prism directly on the golf green, tee, fairway or athletic field and looking through the instrument, you can determine the actual height of cut as well as the quality of cut and smoothness of the surface. Unit can also be used on artificial infill turf to determine fiber height and uniformity.

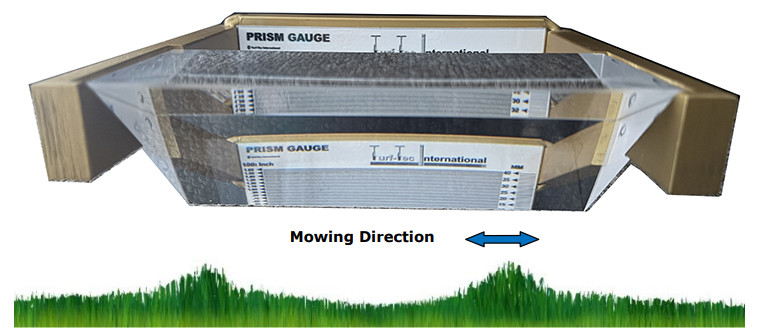

The Grass Height Prism Gauge features graduated measurement lines that are viewed through the solid glass prism that are superimposed on the turf allowing you to measure the actual height of the turfgrass and compare it with mower bench settings.

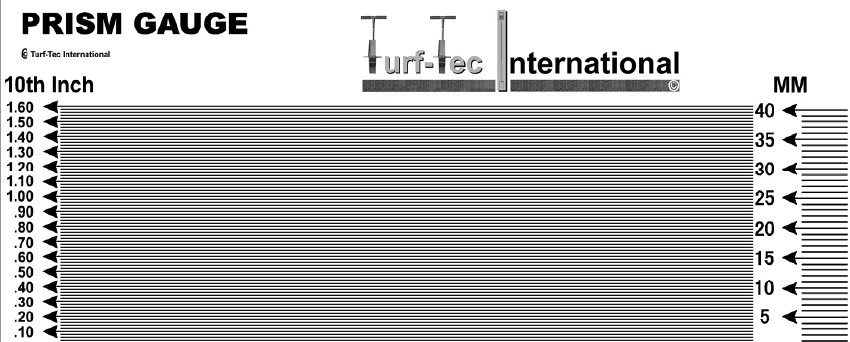

The "quality" of cut may also be inspected by comparing the turf over the viewing plane of the prism. Graduated lines are inscribed at 1/8, 1/10th and 1/16th of an inch as well as 1 mm intervals and measures grass up to 1 5/8 inches or 40 millimeters tall.
It is ideal for inspecting golf greens, baseball infields, cricket pitches, grass tennis courts or any finely manicured place cutting height and surface smoothness is important. Prism is 8 1/2 x 5 x 3 inches in size.
Grass Height Prism Gauge includes solid glass prism mounted in secure stainless steel bracket with readings in millimeters and inches (1/16th - 1 5/8 inch) and (1 mm - 40 mm).
|HGPRISM-G Model - Turf-Tec Height of cut prism scale lines are in 1/8th, 1/16th, 1/10th of an inch and 1 millimeter increments. Details to 1 mm or .020 increments|
|Also available in HGPRISM-FIFA-G Model - Turf-Tec FIFA Height of cut prism scale lines match new 2015 FIFA testing guidelines and shows 1 millimeter increments in a 175 mm length and a 40 mm height. Unit also has .020 increments for reference|
|Prism Gauge sold in new protective hard case Case measures 10 x 6 x 4 inches|
Solid Glass Optics
Stainless Steel Frame
Measurements on scale are 1/8th, 1/16th, 1/10th of an inch and 1 millimeter increments
Maximum measuring height scale is 1 5/8 inches or 40 mm
Measurement scale will show details down to 1 mm or .020 increments
Prism Measures: 8 1/2 x 4 7/8 x 2 3/4 inch (215 x 125 x 70 mm)
Prism Weight: 4 lbs 4.1 oz (1936 g)
Case measures 10 x 6 x 4 inches (25 x 18 x 11 cm)
Prism and Case Weight: 5 3/4 lbs (2.6 kg)
Turf-Tec Grass Height Prism Gauge can also be used for measuring the pile or fiber height in Artificial Grass athletic fields to determine if enough infill is installed between the pad and the fibers for player safety and proper field maintenance. It is also helpful for topdressing new rubber infill and grooming.
