PNCLEGG-S-2.25-A - Clegg Impact Tester (New Bluetooth Model) with Hard Case for Sports Fields

$4,650.00
SKU:
PNCLEGG-S-2.25-A

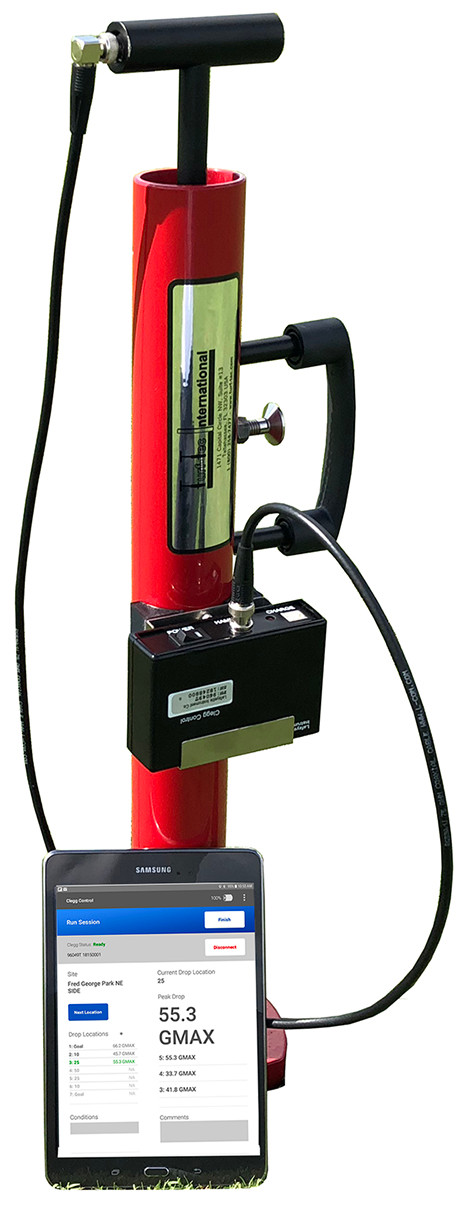

PNCLEGG-S - New Wireless Clegg Impact Tester with bluetooth and GPS - 2.25 kg Model - For Natural and Artificial Sports Fields

Turf-Tec International, Tallahassee, Florida. USA (850) 580-4026



This product is made in the USASee the Clegg Impact Tester in use on YouTube New Clegg Impact Tester / Clegg Decelerometer with Hard Case
F
or Sports Field Testing and Horse Racing

 Click here for Clegg model for Golf Courses

 Click here to see all our products relating to artificial turf surface

Clegg Impact Tester new GPS and Bluetooth- For Horse Tracks, The 2.25 kg Clegg conforms to standards testing for H.R. 133 Title XII—Horseracing Integrity and Safety Act of 2020 for the racetrack safety program (Stimulus BILL 116 HR 133 Public Law 116–68). It can be used on Dirt, Turf, Synthetic and Grass racetracks.The standard test protocol developed by Dr. Clegg is to drop the hammer four consecutive times on the same location with the highest value result in the series taken as the Peak Clegg Impact Test result. Since that time, other test protocols have been used based on the materials under test and the application. These other protocols vary the Hammer drop height or use the average result in place of the peak. The Clegg offers the convenience of rapidly scanning compaction variation over large areas. In research studies, 250 tests were performed with the Clegg in a half-day. For Horse Tracks, The 2.25 kg Clegg conforms to standards testing for H.R. 133 Title XII—Horseracing Integrity and Safety Act of 2020 for the racetrack safety program (Stimulus BILL 116 HR 133 Public Law 116–68). It can be used on Dirt, Turf, Synthetic and Grass racetracks.The Clegg Impact Tester is a professional instrument used to determine hardness on all types of areas - Readings in Gravities (Gmax), CIT's and F355 Equivalent



New for 2020 - Wireless bluetooth display with GPS enabled tablet, data logging and mapping. The NEW PNCLEGG-S-2.25-A- Clegg Impact Tester 2.25 kg model reads out from 0 to 150 Gravities, 0 to 15 CIT's or 0 to 218 - F355 GMax equivalent readings and has a better accuracy range (+/- 1% or 1.5 G Accuracy) as compared to the 0-1000 Gravity unit (+/- 1% or 10 G Accuracy) for testing soft surfaces like natural grass fields & synthetic turf athletic fields, infill products and all sports fields.  This model is the same model that is used to test all NFL National Football League Stadium Fields before games.  Instruction Manual and App comes with conversion formula to convert readings to F355 equivalent readings.  Note the 150 g maximum reading on this unit is sufficient for maximum impact readings in the ASTM F355 range after using the conversion formula included in the Turf-Tec Instruction Manual. 200 g's on F355 Impact Tester = 135 g's on Clegg Impact Tester.

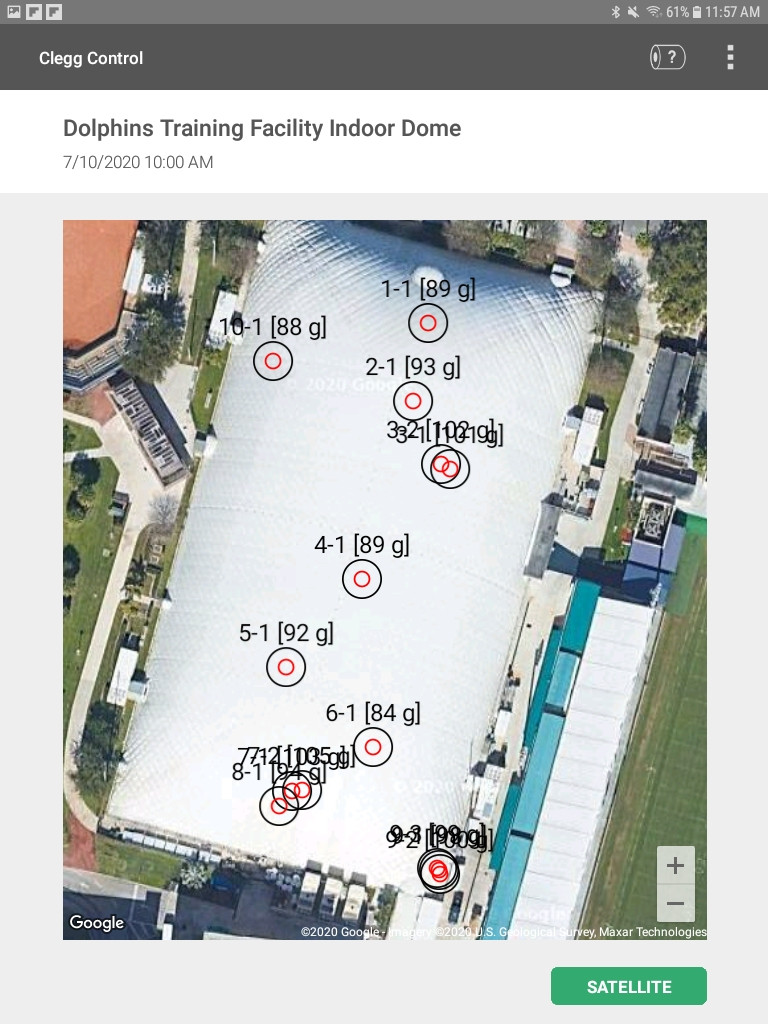

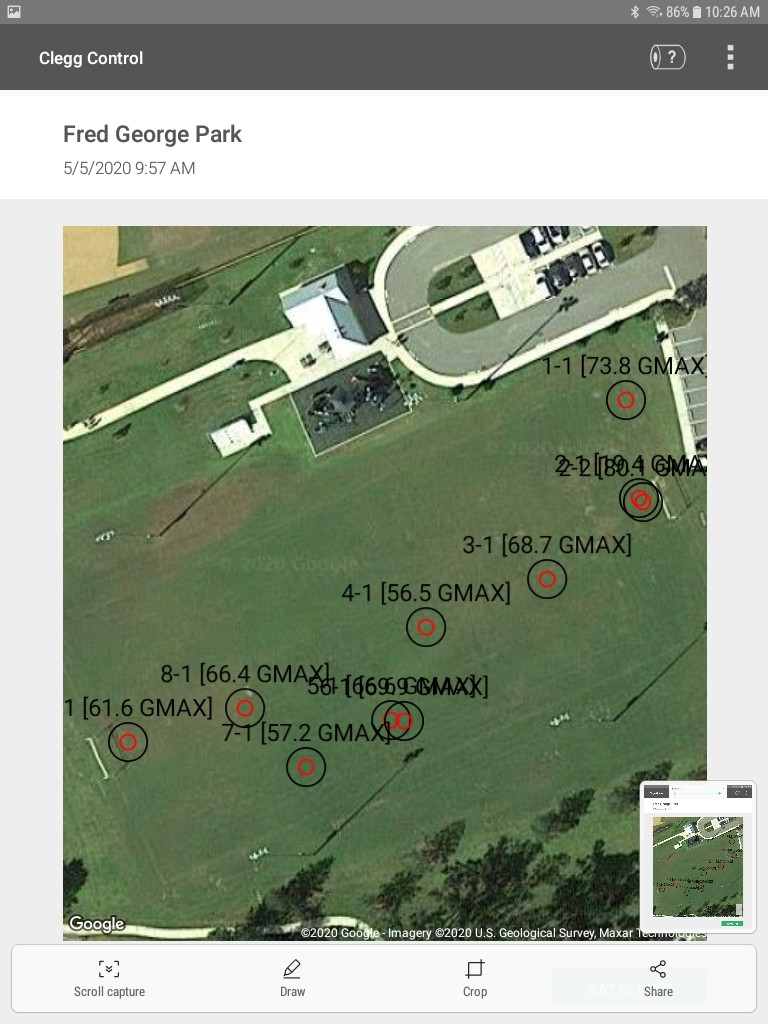

Clegg Impact Tester Mapping with GPS Image

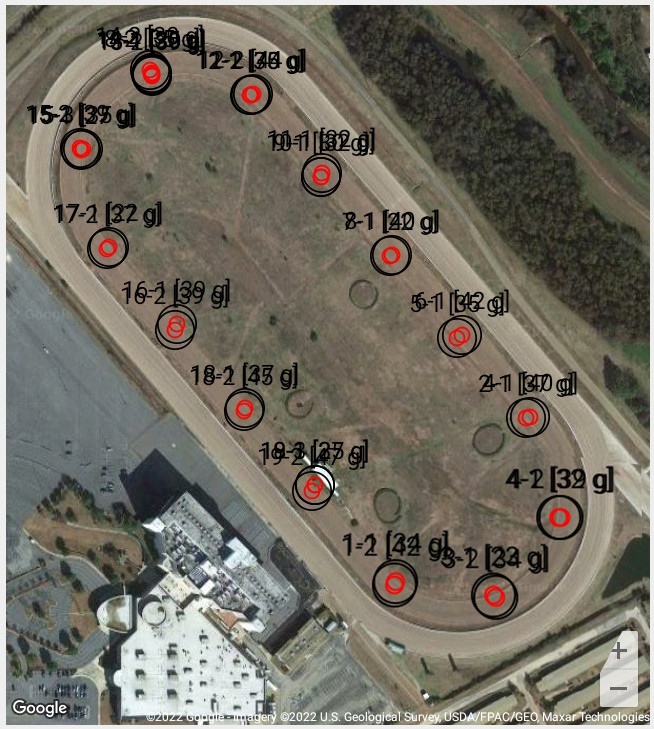

For Horse Tracks, The 2.25 kg Clegg conforms to standards testing for H.R. 133 Title XII - Horse racing Integrity and Safety Act of 2020 for the racetrack safety program (Stimulus BILL 116 HR 133 Public Law 116 - 68). It can be used on Dirt, Turf, Synthetic and Grass racetracks.



The principle behind the Clegg Impact Soil Tester, also called the Clegg Hammer and Clegg Decelerometer, is to obtain a measurement of the deceleration of a free falling mass (Hammer) from a set height onto a surface under test to determine its hardness. The impact of the Hammer produces an electrical pulse, which is converted and displayed on the GPS enabled tablet in units of gravities "G-max", tens of gravities "CIT", or F355 Equivalent units. Reference ASTM test methods ASTM 1936, ASTM F355, D5874 and F1702.



The standard test protocol for sports field testing is to drop the hammer one consecutive time on the test area result. The Clegg offers the convenience of rapidly scanning compaction variation over large areas.



See the Clegg Impact Tester in use on YouTubeAvailable in following models

  • 0.5 kg - Used for soft turf, sand areas and golf greens (0 to 1000 Gravities)
  • 2.25 kg - Used for surfaces consisting of natural or synthetic turf (football, baseball, soccer fields, playgrounds, pitches, horse tracks, and golf greens) (0 to 1000 Gravities) (+/- 1% or 10 G Accuracy)
  • 2.25 kg-A - New Used for surfaces consisting of natural or synthetic turf (football, baseball, soccer fields, playgrounds, pitches, horse tracks, and golf greens) (0 to 150 Gravities) New (+/- 1% or 1.5 G Accuracy)
  • 4.5 kg - Used for surfaces such as preconstructed soils, trench reinstatement, bell holes, and foundations
  • 10 kg - Used for flexible pavement, aggregate road beds, trench reinstatement, bell holes, and foundations
  • 20 kg - Used for surfaces such as flexible pavement, aggregate road beds, trench reinstatement, bell holes, and foundations

Simple and quick test procedure

  1. The test procedure is very rapid and can easily be performedClegg Impact Tester / Clegg Decelerometer shown with Turf-Tec Level by site personnel with minimal training. Each test can be completed in less than 30 seconds and the results are immediate.
  2. Select a level surface.
  3. Set the guide tube into position. Secure by placing a foot on the tube's base flange and steady with the lower leg and knee.
  4. The tablet app is placed in the test mode.
  5. The Hammer is raised to the drop height quick release trigger and indicator Clegg Impact Tester / Clegg Decelerometer Control unitmark.
  6. The level is centered.
  7. The Hammer is released allowing it to fall freely.
  8. The Gravities value (Gmax), CIT value or F355 equivalent reading is displayed and is instantly saved, along with the GPS coordinates, into the Clegg app.
  9. Move to the next test site and repeat the test procedure.

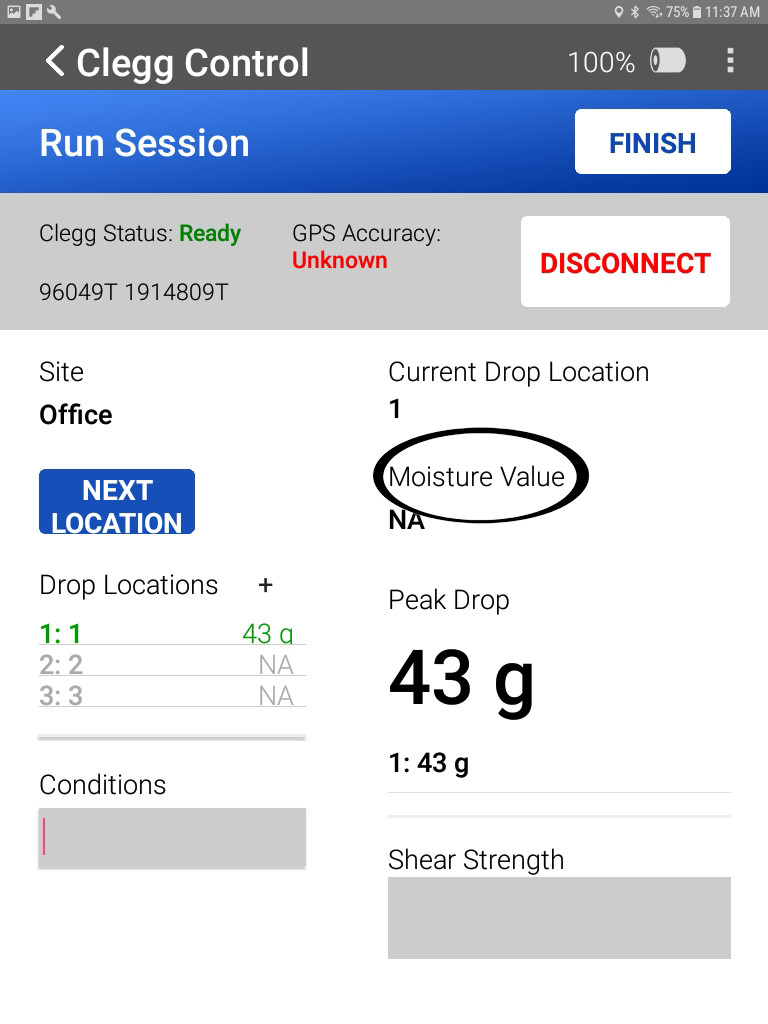

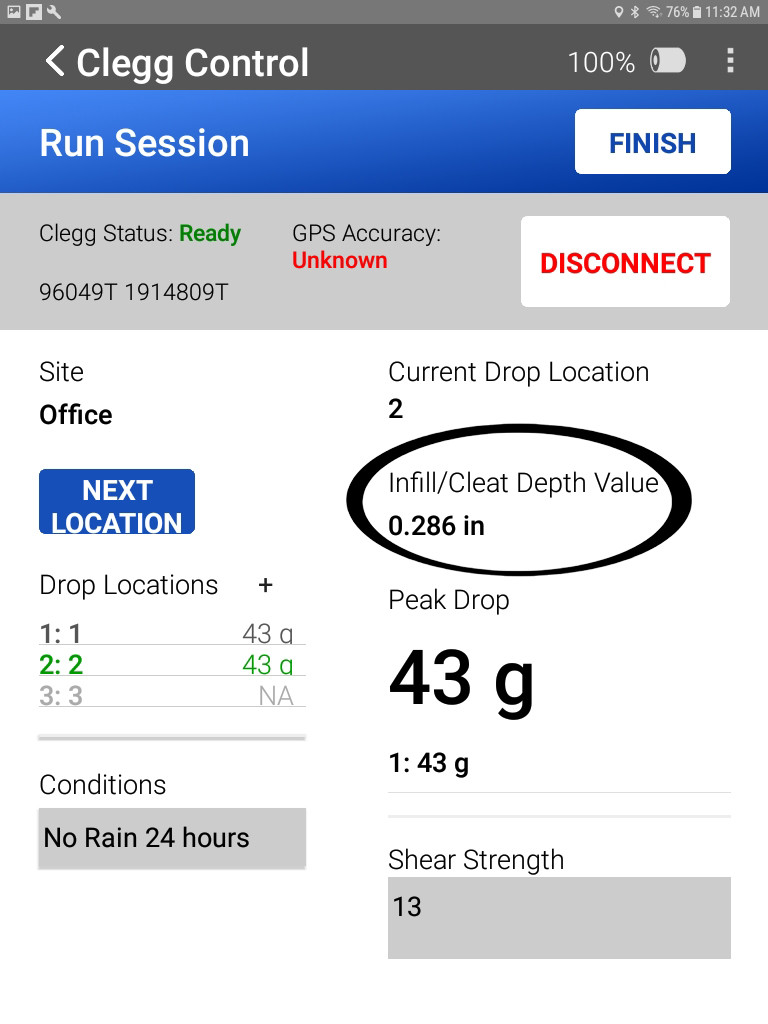

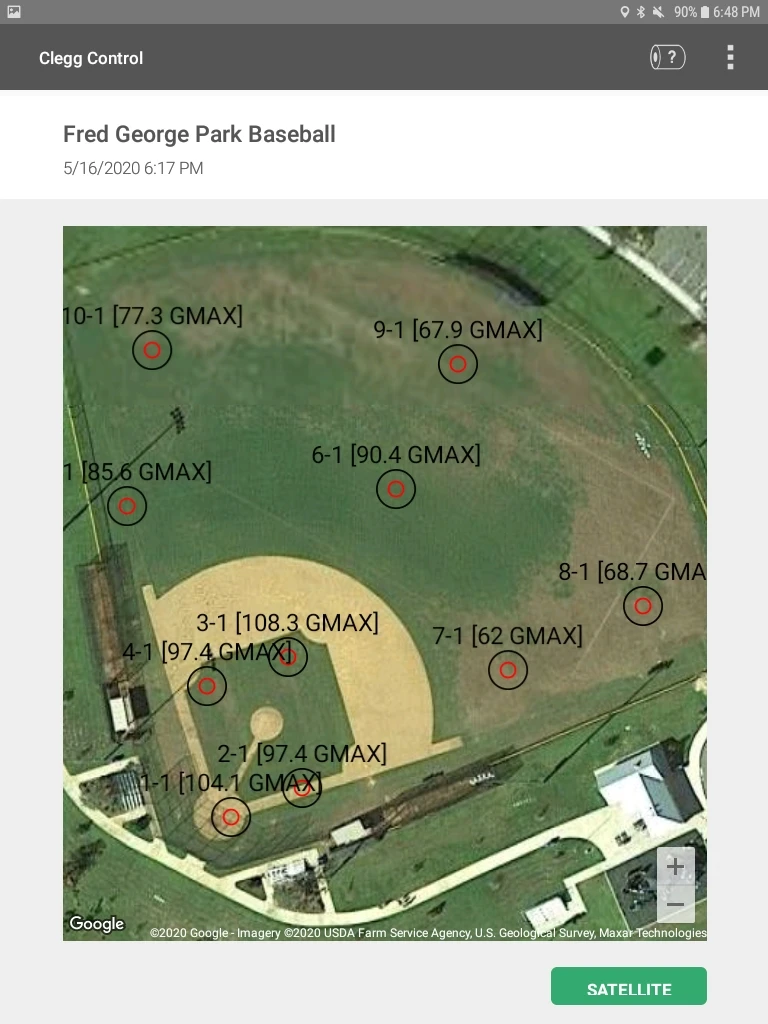

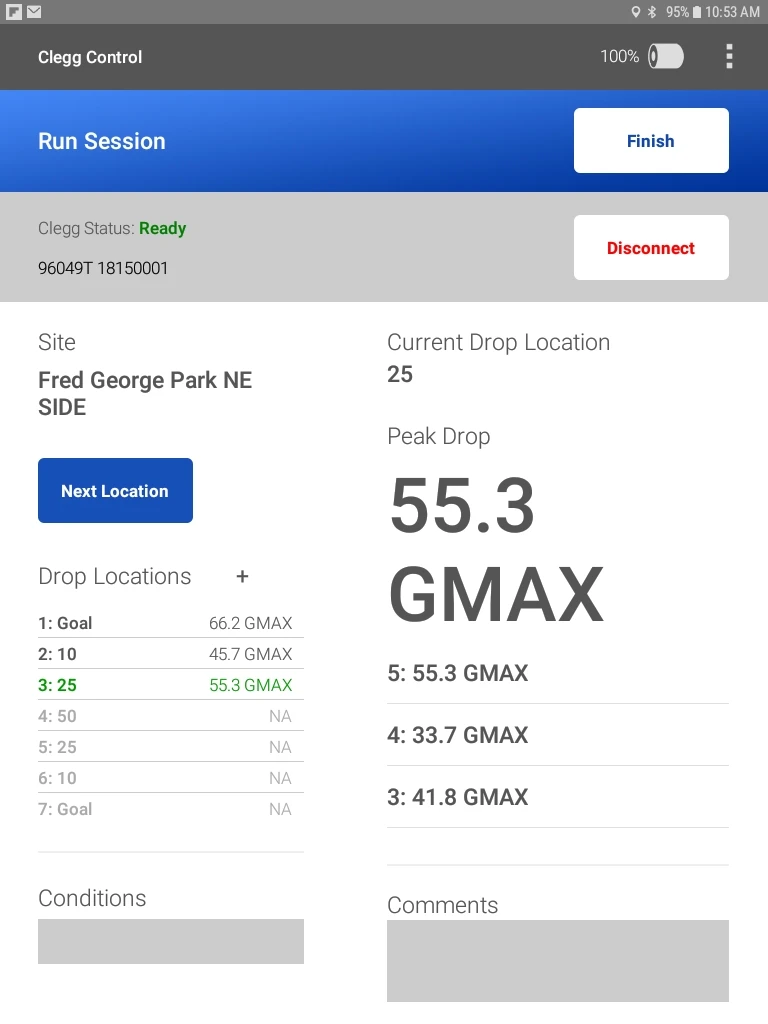

 Clegg 2019 Screen on Tablet with GPSClegg Impact Tester Mapping with GPS Imagefor Sports Fields

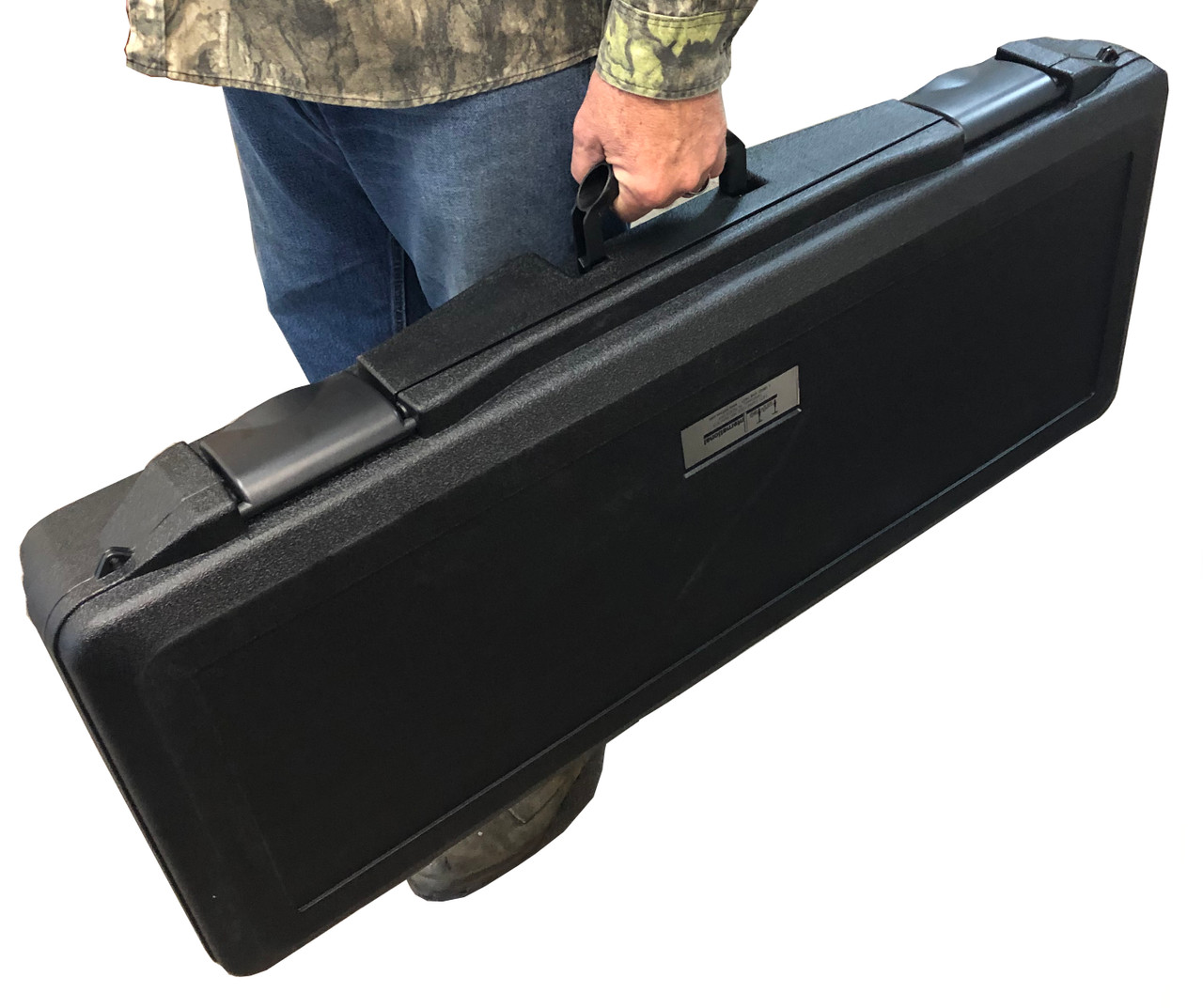

Clegg shown with Turf-Tec optional hard case

Clegg shown with Turf-Tec optional hard case

Clegg shown with Turf-Tec optional hard case







The Clegg Impact Tester is a professional instrument to determine hardness on baseball fields and clayThe Clegg Impact Tester is a professional instrument to determine hardness on football and soccer fields, both natural and artificialThe Clegg Impact Tester is a professional instrument to determine hardness on grass horse race tracks. For Horse Tracks, The 2.25 kg Clegg conforms to standards testing for H.R. 133 Title XII—Horseracing Integrity and Safety Act of 2020 for the racetrack safety program (Stimulus BILL 116 HR 133 Public Law 116–68). It can be used on Dirt, Turf, Synthetic and Grass racetracks.The Clegg Impact Tester is a professional instrument to determine hardness on sand and clay horse racing tracks

The Clegg Impact Tester is a professional instrument used to determine hardness on all types of areas from baseball, football, soccer, natural grass, artificial turf, infill turf, horse racing, turf racing, rugby, cricket, lacrosse and all types of sports; wherever surface harness is important - from turf care needs to playability and safety.

Specifications:

  • Clegg 2.25 kg Hammer with hardened strike face
  • Guide tube is metal and will provide years of reliable, accurate service
  • Tablet comes ready to use with Clegg Control Application pre-installed and calibrated to your Clegg Hammer (available in the Google Play Store)

Also see our infill depth gauges for accurate and consistent depths of infill materials
Turf-Tec Professional Model Infill Depth Gauge
Turf-Tec Economy Model Infill Depth Gauge for synthetic turf

Unit Comes with the following:

  • Impact Hammer
  • Guide Tube with Foot
  • Bubble Level
  • Samsung Galaxy Tablet "A" with Clegg Control Application
  • GPS Integrated Tablet
  • Bluetooth Sending Unit
  • BNC Coax Cable
  • 12x12 inch Foam Calibration Pad (0-150g 2.25 kg-A unit)
  • Locking Pin to attach Hammer to Guide Tube
  • Handle and Hammer Release Spring Plunger with Lockout
  • Instruction Manual
  • Charger
  • Hard Case
  • Battery Life: 12 Hours
  • 3.7V/1.75Ah Lithium Ion Battery
  • Complete Charge in 3 hours
  • Results displayed/stored on Tablet-Based Application
  • App is also available in the Google Play Store for Android
  • App is also available in Apple Store for Iphone and Ipad
See the Clegg Impact Tester in use on YouTube



The Clegg may be transported and operated by one person, allowing for low cost, rapid field and laboratory testing and direct readout of the test results. The Clegg can test a full range of natural grass fields & synthetic turf fields, all athletic surfaces, pads, infill materials and amendments where hardness or impact characteristics need to be controlled for safety or playability. The Clegg can also test a full range of soil and stone as encountered in the construction of flexible pavement and earthworks. It is useful for quickly checking variations during construction and monitoring changes over time due to seasonal environmental changes or road traffic as well as testing natural and "as constructed" conditions.



Link to page on rechargeable battery charging issues for non bluetooth model (2018 and prior)

 Suggested Reading from Penn State University's Center for Sports Turf Research

"Surface Hardness (Gmax)"
By: Andrew S. McNitt, Thomas Serensits and Dianne M. Petrukak
http://cropsoil.psu.edu/ssrc/research/infill/surface-hardness-gmax
Also:
http://plantscience.psu.edu/research/centers/ssrc/sportsturf-scoop

PNCLEGG-S-0.5 -  Clegg Impact Tester 0.5 kg model
PNCLEGG-S-2.25 - Clegg Impact Tester 2.25 kg model (0 to 1000 Gravities)
(+/- 1% or 10 G Accuracy)
New PNCLEGG-S-2.25-A-  Clegg Impact Tester 2.25 kg model
 (0 to 150 Gravities) For testing Athletic Fields and Race Tracks
(+/- 1% or 1.5 G Accuracy)

Click here for instructions for 2.25 kg Clegg Android Version



Click here for instructions for 2.25 kg Clegg IOS Version



Click here for video on Clegg ImpacTester



How to set up Clegg Impact Tester for Sports Field Specific Testing instructional video
